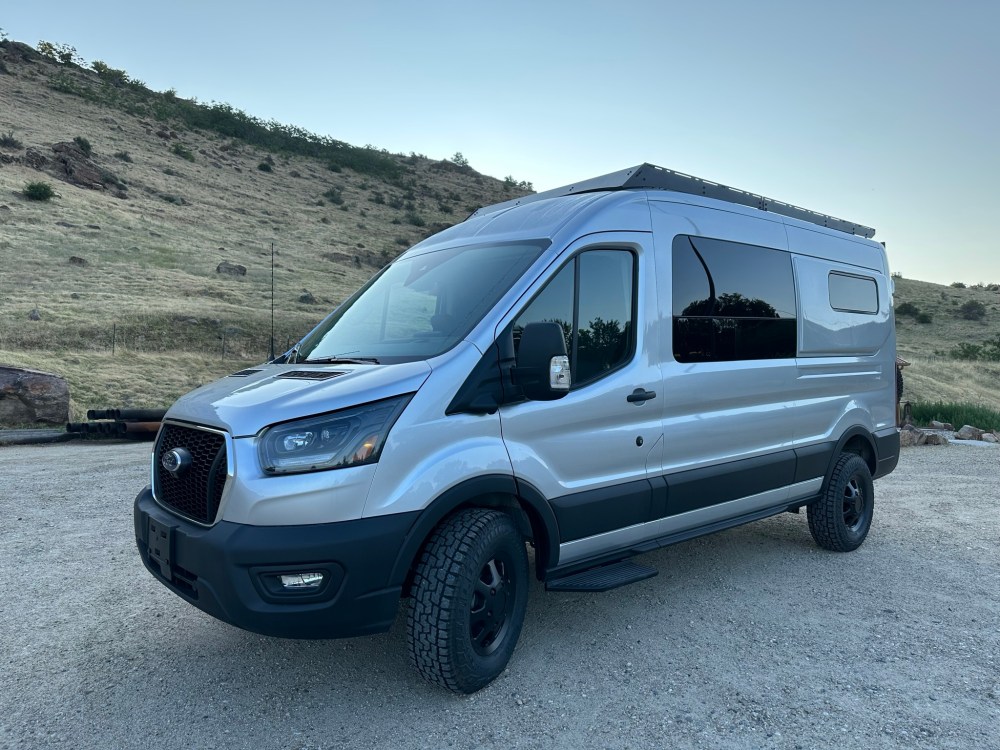

2023 Ford Transit 250 AWD, 148″WB regular length, Ingot silver, ecoboost v6, swivel seats, tow/haul package, extended range fuel tank, 360 degree camera, see window sticker below for all options.

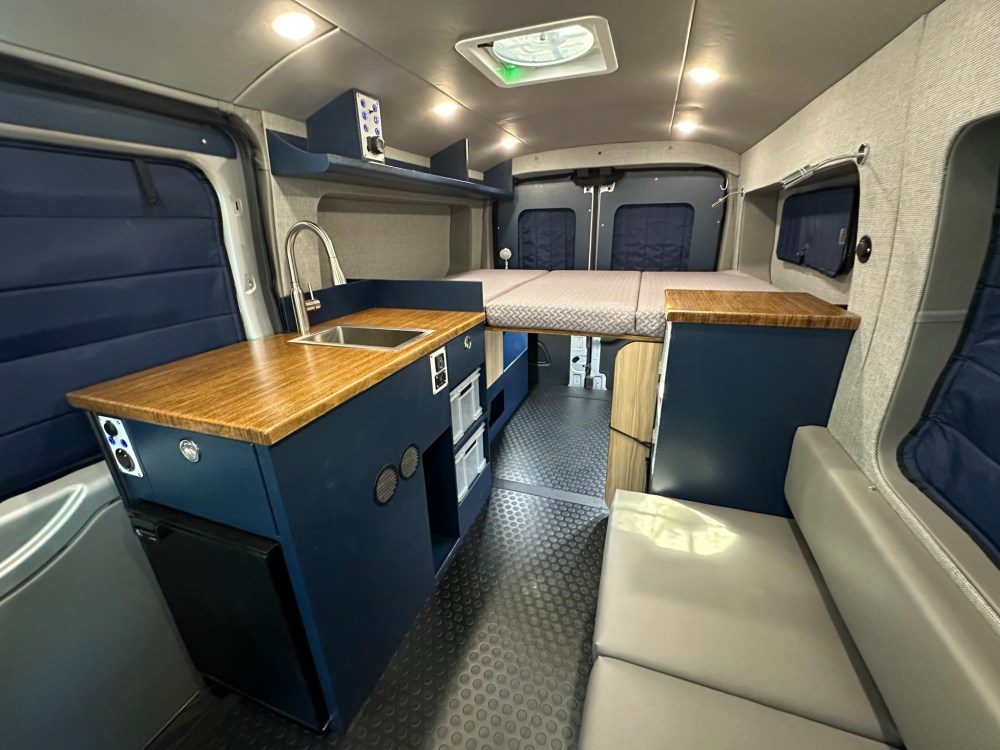

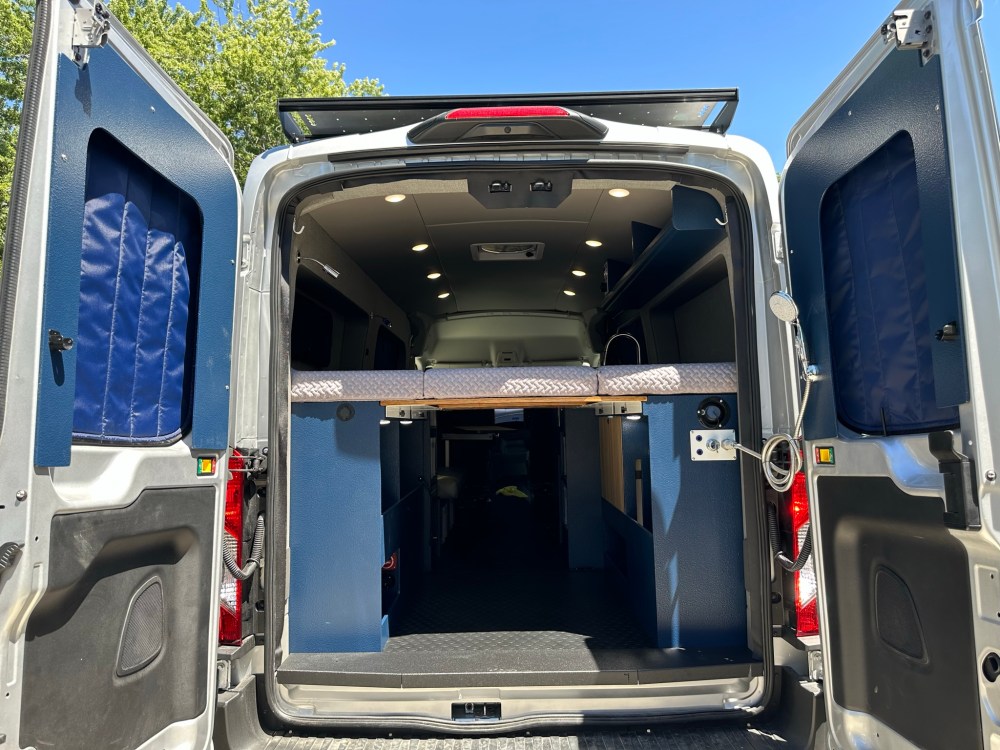

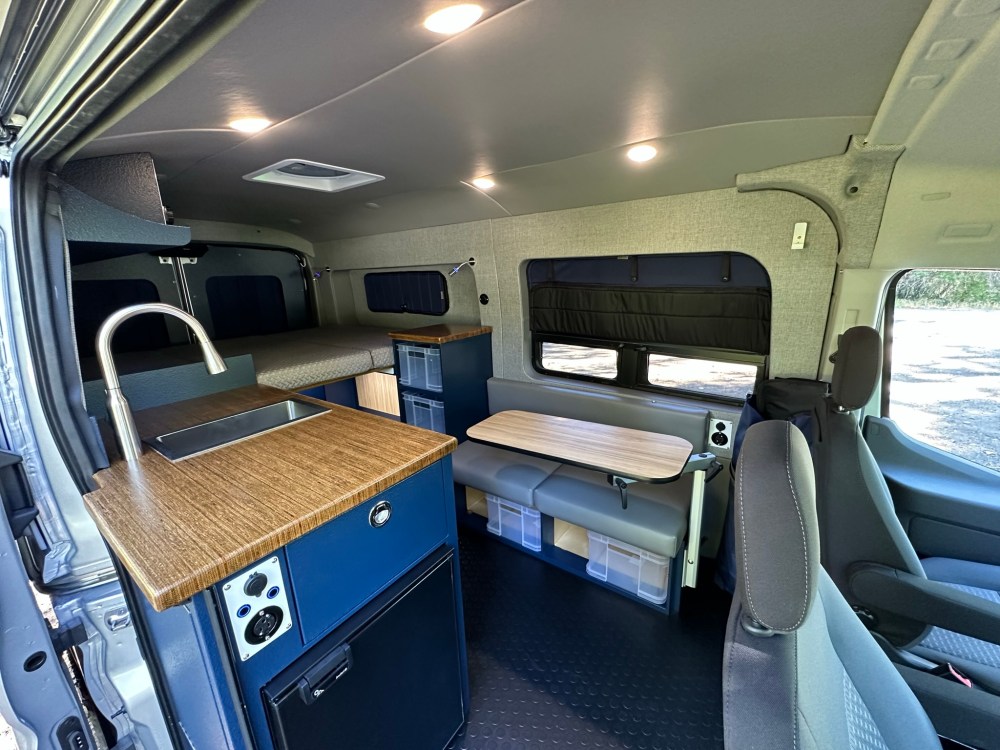

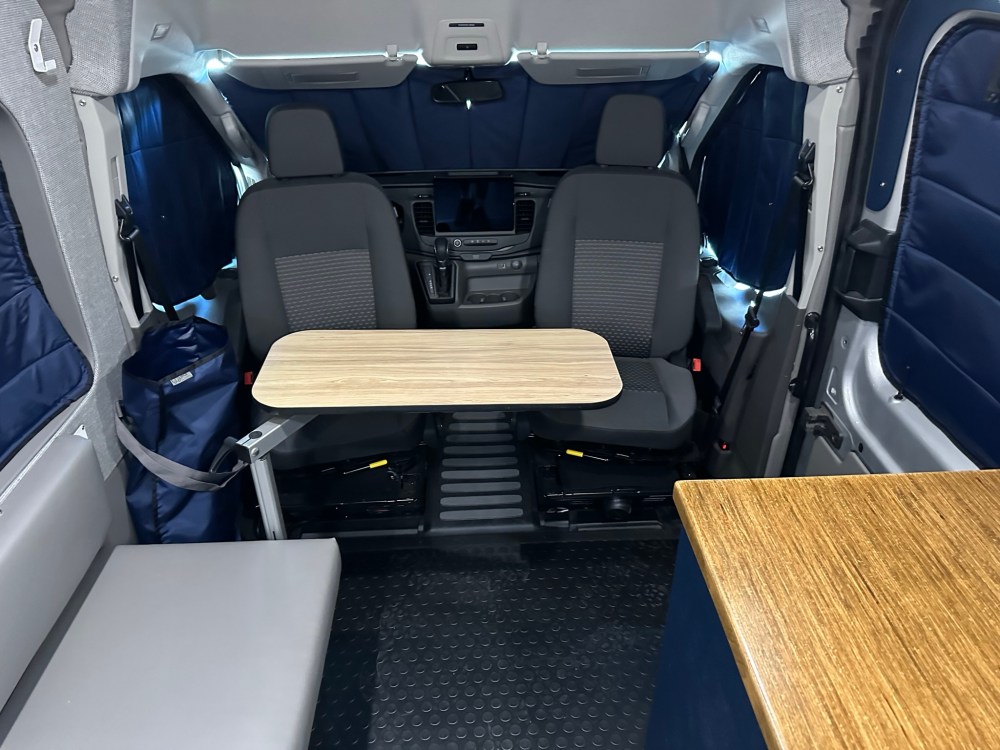

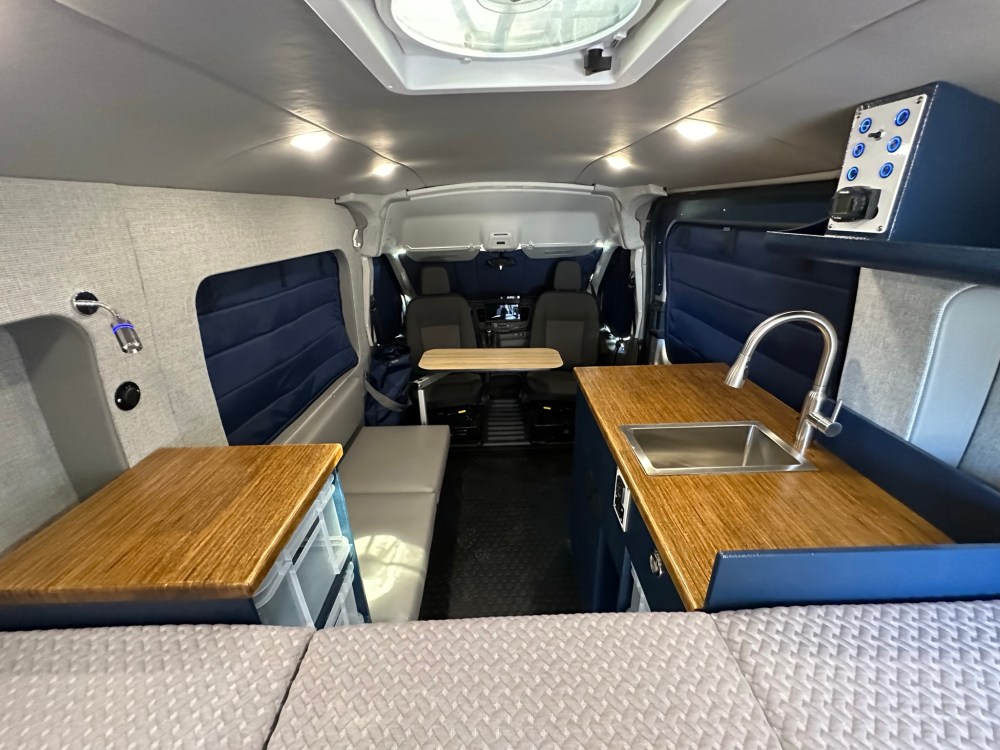

Our classic Kestrel layout which includes an indoor/outdoor kitchen in the slider door with hot and cold water, removable storage bins, 85L refrigerator and a German Beech countertop. Full size loft bed in the rear with Flarespace flares to allow “east-west” sleeping and a full 52″ x 80″ bed space. There is an awning window at the head of the bed and ample gear storage underneath in the side pod cubbies. The bedside nightstand also has removable storage crates and a composting separating toilet which glides out from below. The crates are great for taking inside when loading or unloading, laundromat, grocery store, etc. whether its clothes, food, or gear, they are super convenient. The drivers side bench has even more storage options below. You can set up the swiveling table at the bench or at the factory swivel seats via the Lagun swiveling table mount. While underway the table has a specific stowed location.
This van includes a roof fan, and opening windows for ventilation, a gasoline powered air heater, a full set of insulated window shades, and door screens.
Exterior goodies include a AVC roof rack with 200watt solar panel and small deck, Van Compass Stage 1 lift kit, and VanCentric OE wheels with Pirelli Scorpion AT Plus mountain snowflake rated tires.
The van weighs 7150lbs with a 9070lbs. gvw. 1920lbs capacity for occupants and gear.

See the full spec sheet below for details:

Upfit:
CRLaurance Driver side forward awning window, driver side awning bunk window
Floor Coverings, rubber coin floor, black.
Insulation, 3M Thinsulate, roof, walls, rear and slider doors
Custom interior headliner wall panels and coverings. Automotive tweed, grey. Headliner, warm grey. Bench seat vinyl, Greystone
VanCentric front floor, rear and slider door threshold steps.
Custom Interior Cabinets- Featuring a tough waterproof epoxy coating in Midnight Special

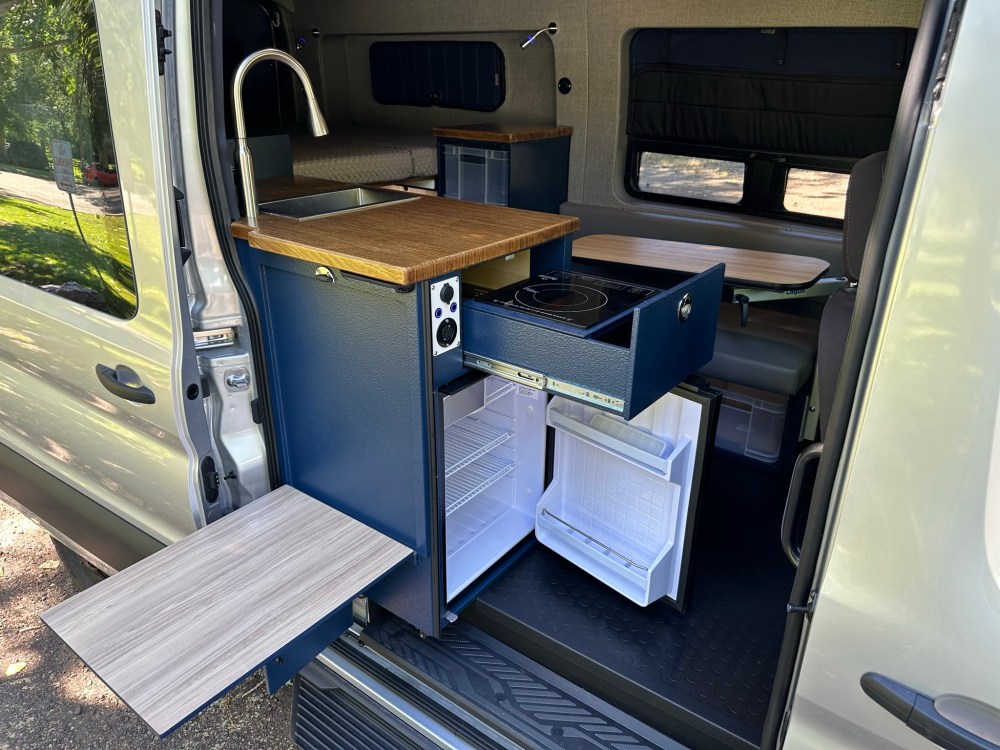

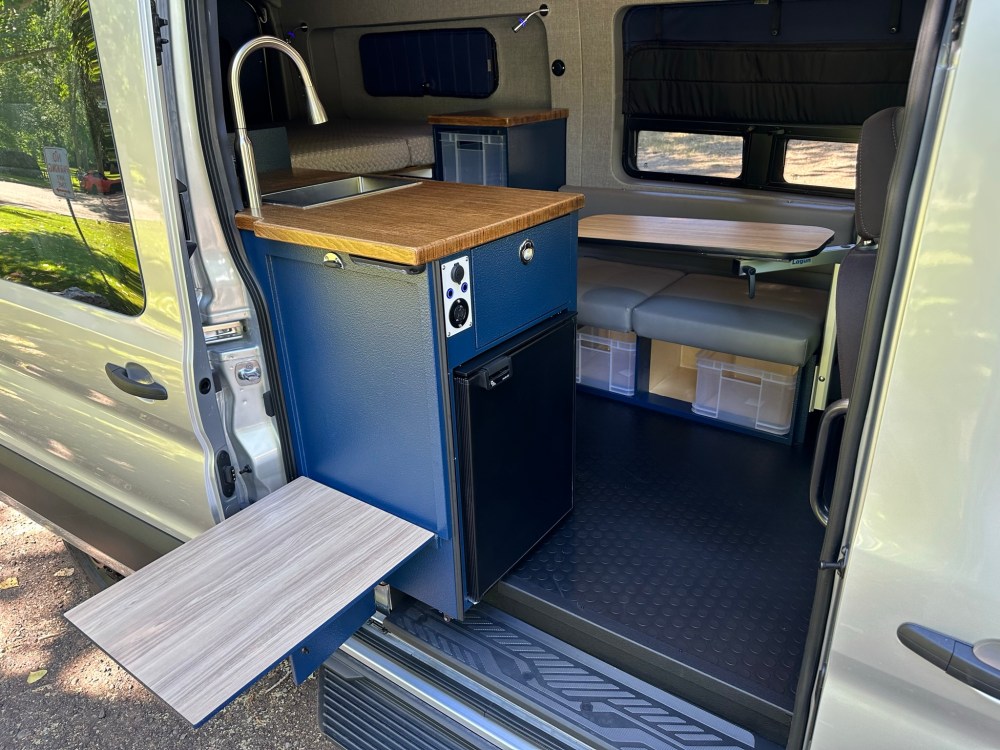

Pinnacle Campers indoor/outdoor kitchen cabinet with exterior drop down laminated table, German Beech countertop, stainless sink/faucet, and sprayer, setup for IndelB 85L fridge. Crate tower with 2 crates and drawer. Drawer above fridge has induction cooktop holder. Also includes a slot for trash/recycling.
Nightstand crate tower on passenger side for 2 crates with, German Beech countertop and Trelino Separating toilet.

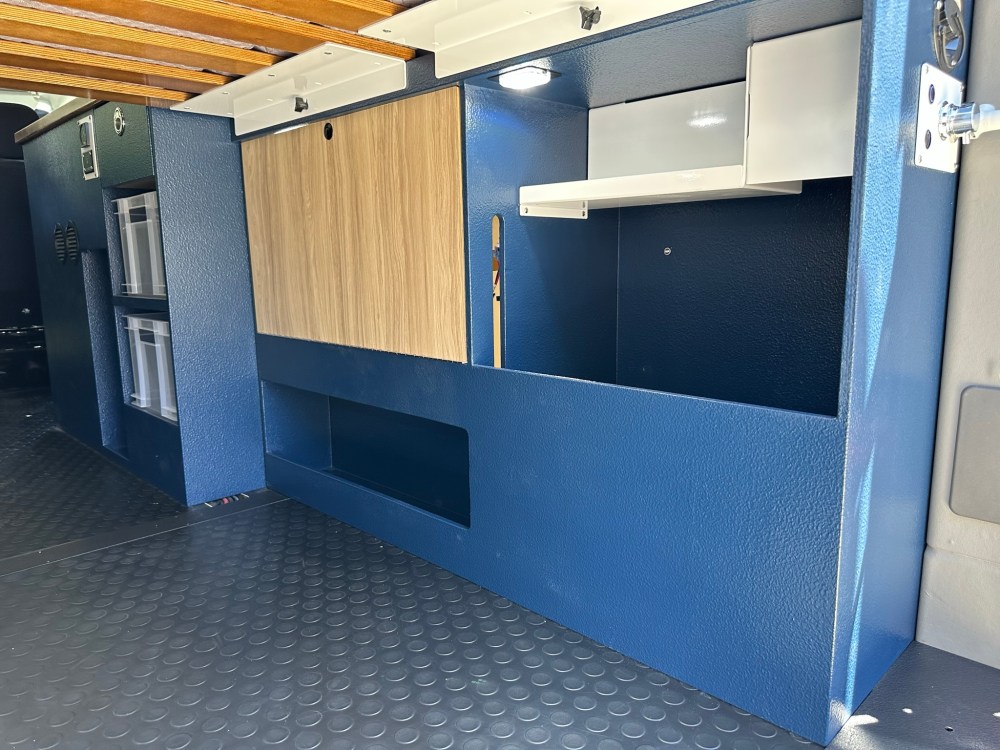

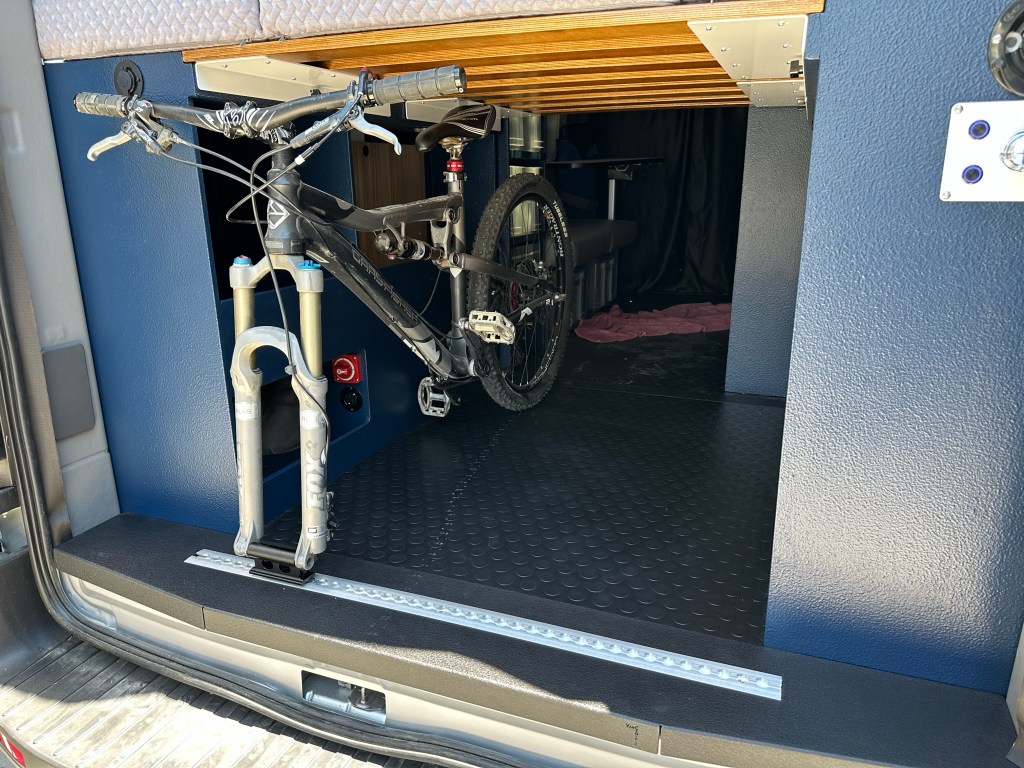

Pinnacle Campers bed kit set up for east/west sleeping, Full 52×75, 4″ memory foam mattress. Wheel well storage cubbies, powerwall with integrated batteries, removable platform slat panels set at 34″ height

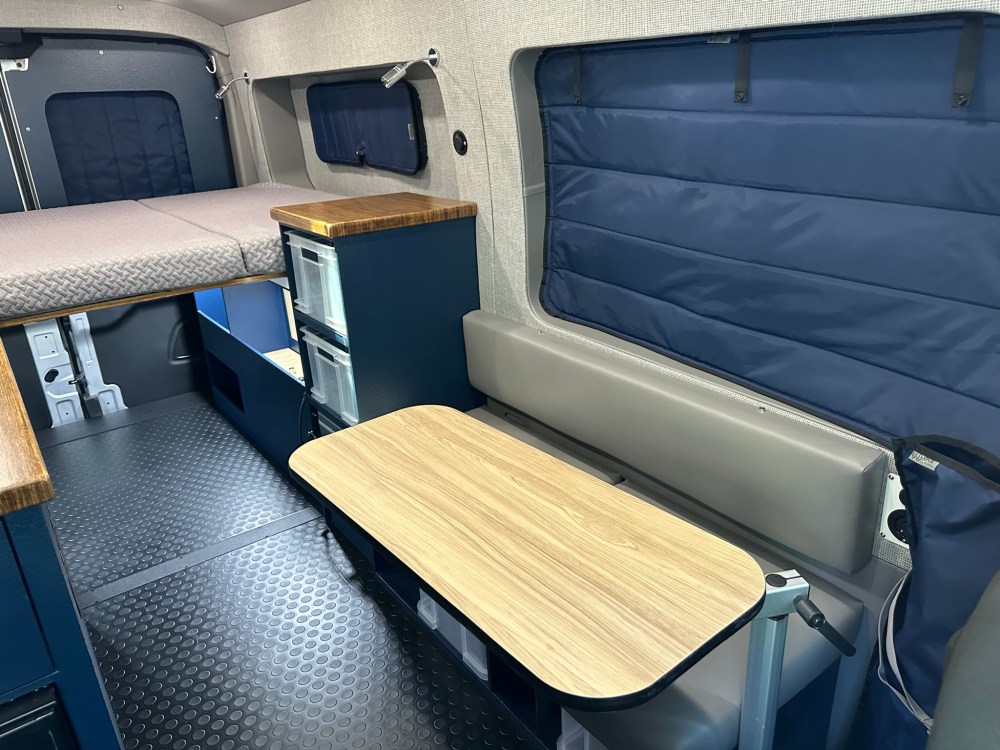

Bench Seat 46″, 4″ foam vinyl upholstered seat cushions split at 50/50, storage under.

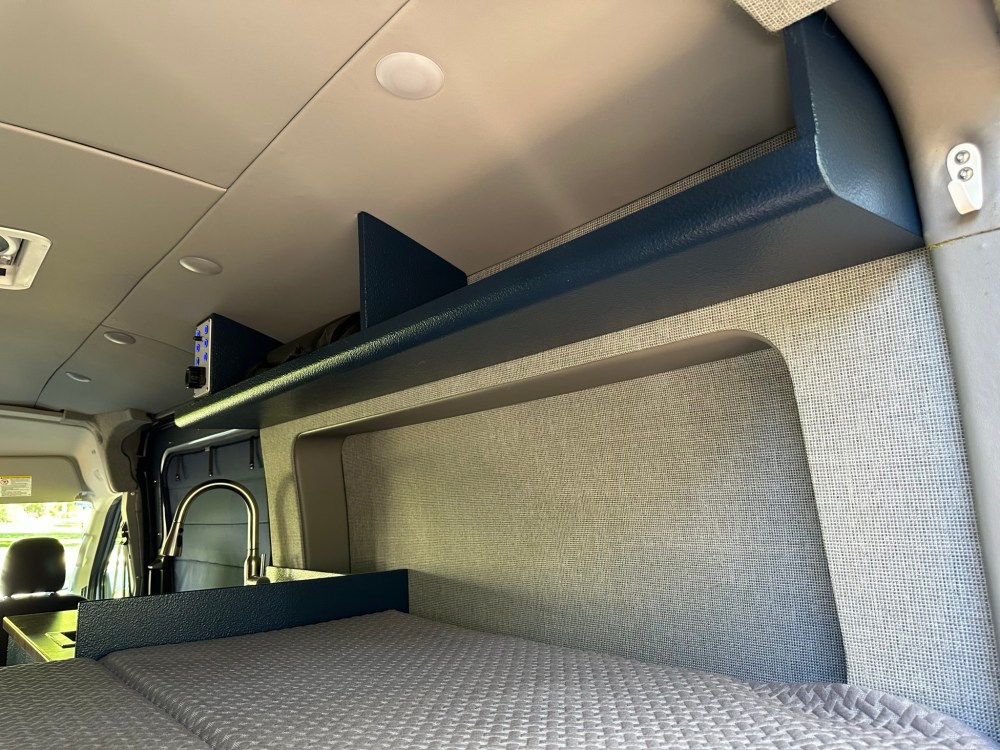

Passenger side open overhead shelf
Electrical: Capacities: 260ah storage, 200w solar, 30 amp engine charging, 30 amp shore/110v charging. Chargers, battery, and heater are accessed via bluetooth
1x 260ah SFK Lithium battery with bluetooth monitor
Aims Power 2000w inverter, 110v single outlet @ 3 locations
Victron Orion DCDC Charger 12/12 30a
Victron Smartsolar MPPT 75/15
Victron 30amp shore charger with exterior plug-in
Solar panel, 200w/24volt
Exterior LED porch light over slider, LED exterior kitchen light
8 ceiling lights with dimmer, 2 zones, switched at two locations
Cargo lighting and water pump switched at two locations
USB/DC cig plug @ 4 locations
SCAD Twin tank monitor
Control panels and concealed Powerwall
Water system: 21g fresh inside, 10g grey outside, 4gal water heater
Stainless sink, faucet, single handle, pull out spray, stainless.
Pump Shurflo 3gpm
Fresh tank 21 gallon indoor mounted, rear door fill, vented @ fill
Grey tank 12 gallon under mount (DS) with aluminum skid plate, manual dump valve, vent/over flow
Isotemp Spa water heater. Heats water using engine coolant with backup 110v element. Includes heat trace, insulation and engine coolant for domestic water cold weather protection.
Aqua Crest 5K water filter

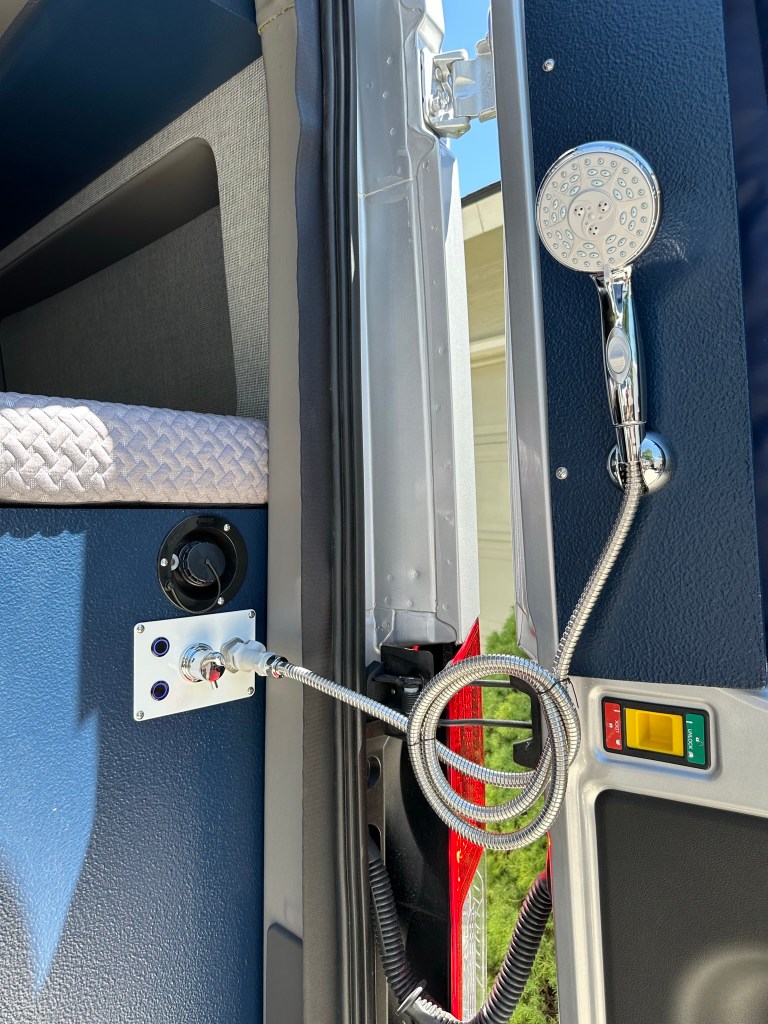

Shower rear door quick connect port, and Hot/cold mixer valve
Essentials kit including: Fresh water fill adapter, and handheld sprayer with shut off.
Appliances/Accessories:
Webasto STC2000 heater, bluetooth, runs off chassis unleaded fuel tank
IndelB 85L 12v refrigerator
Maxxair 6200K roof fan, smoke lid
Lagun table leg with laminated table
Mattress: Memory foam tri fold 4”
XPLR Outfitters magnetic shades for all windows
Cab curtain/rear shower privacy kit
Duxtop 1800 watt induction cooktop
Trelino Separating toilet, small, with trolley storage riser
Hydraulic jackstand and folding lug wrench
Bug screen kit slider, Pinnacle Campers
Bug screen kit rear doors, Pinnacle Campers
Ford Transit tray style floor mats
Exterior accessories:
AVC roof rack with two deck/cargo panels 24″x60″ area

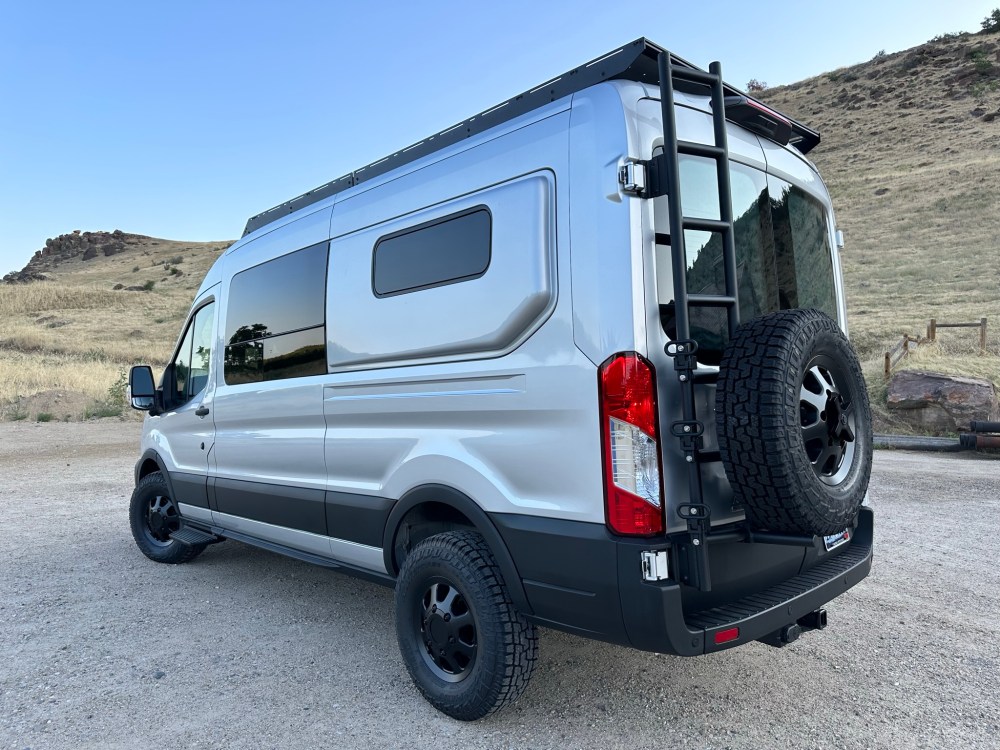

Aluminess ladder/spare tire rack
Van Compass Stage 1 kit, 2″ lift with high clearance shock brackets and Falcon shocks. Installed with Alignment
Pirelli Scorpion AT Plus 245/75/16 5x
VanCentric OE wheel 5x with TPMS for 5 tire rotation
