Ultimate Adventure 4 season (UA4s)
This 4 season camper is built for full time adventure, featuring heat and 12v air conditioning, indoor/outdoor shower spaces with abundant hot water, and wool insulation to keep the indoor climate comfortable in any season.

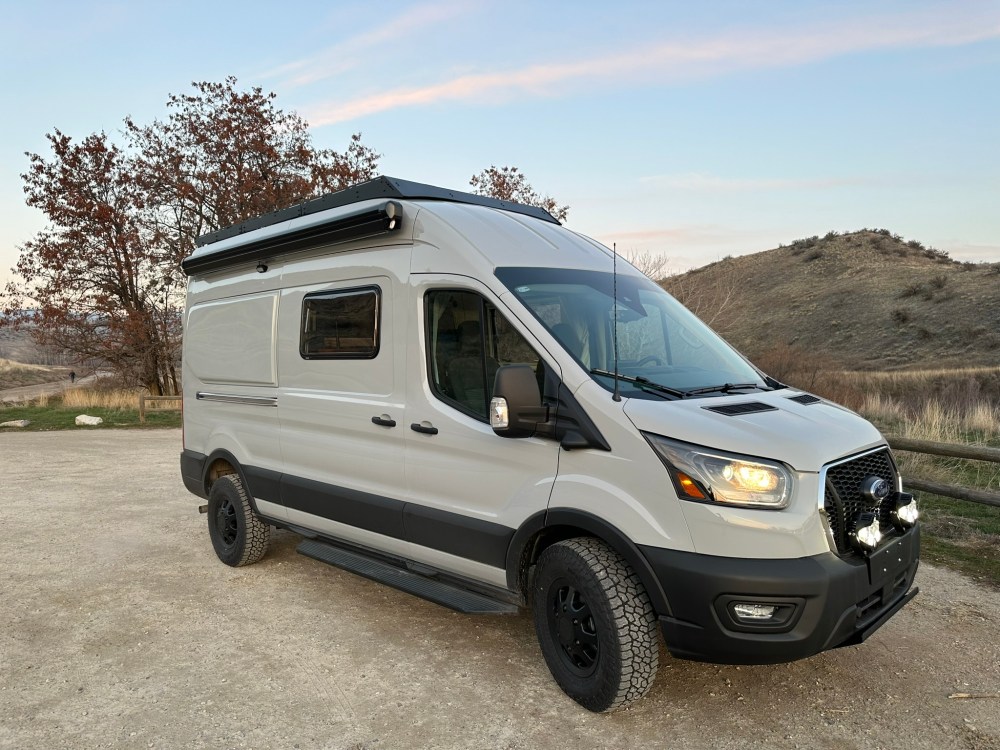

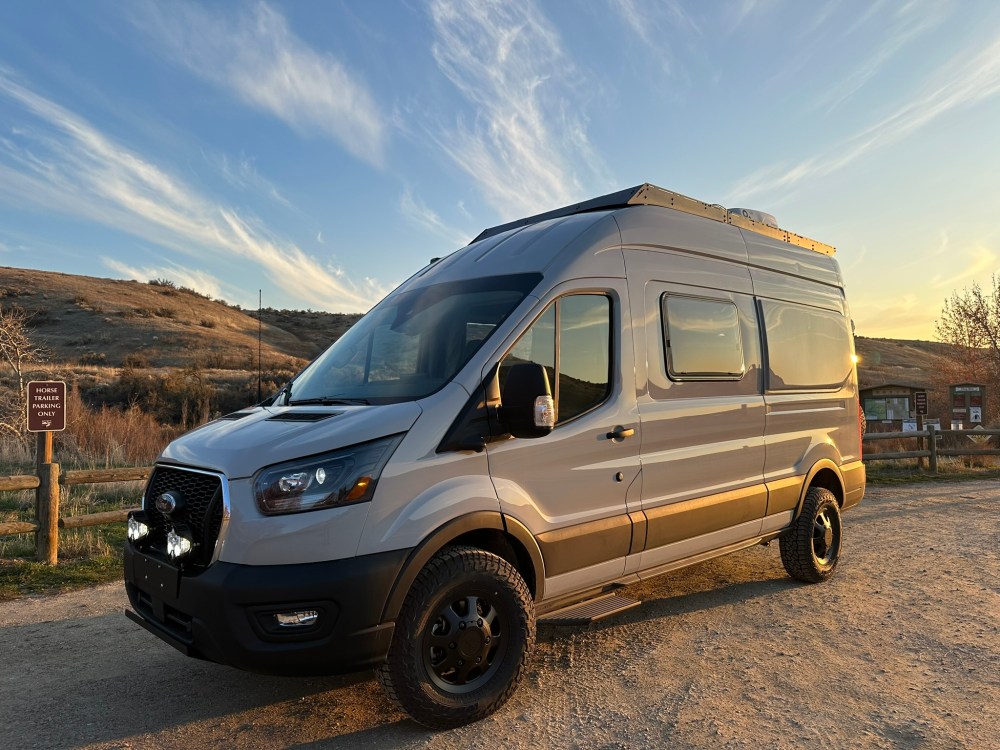

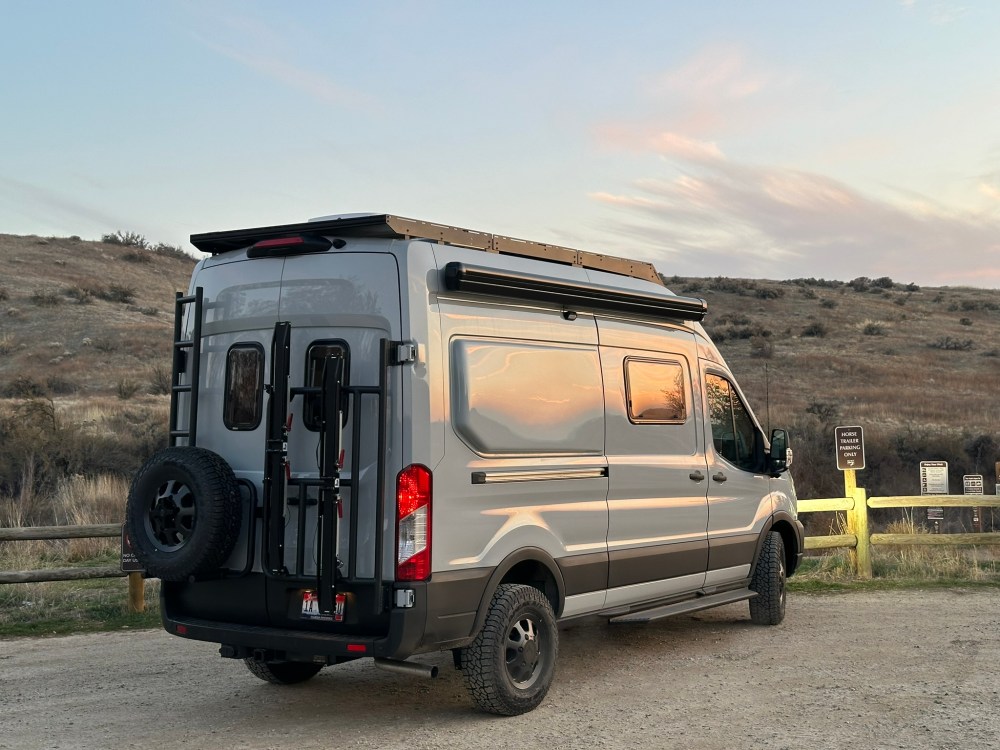

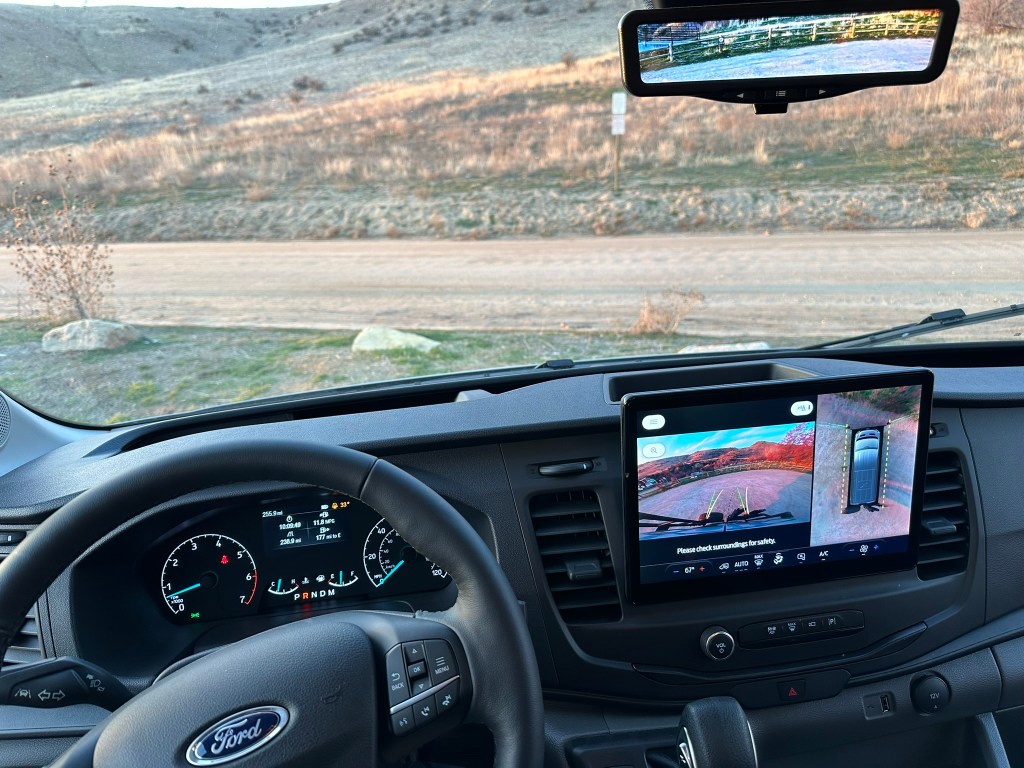

Based on a new 2023 Ford Transit 250 AWD, 148″WB regular length, Avalanche gray, featuring ecoboost v6, swivel seats, tow hitch, extended range fuel tank, 12″ screen, adaptive cruise, virtual rearview mirror, see window sticker for all options. The virtual rear view mirror is really nice given the limited vision out the back.

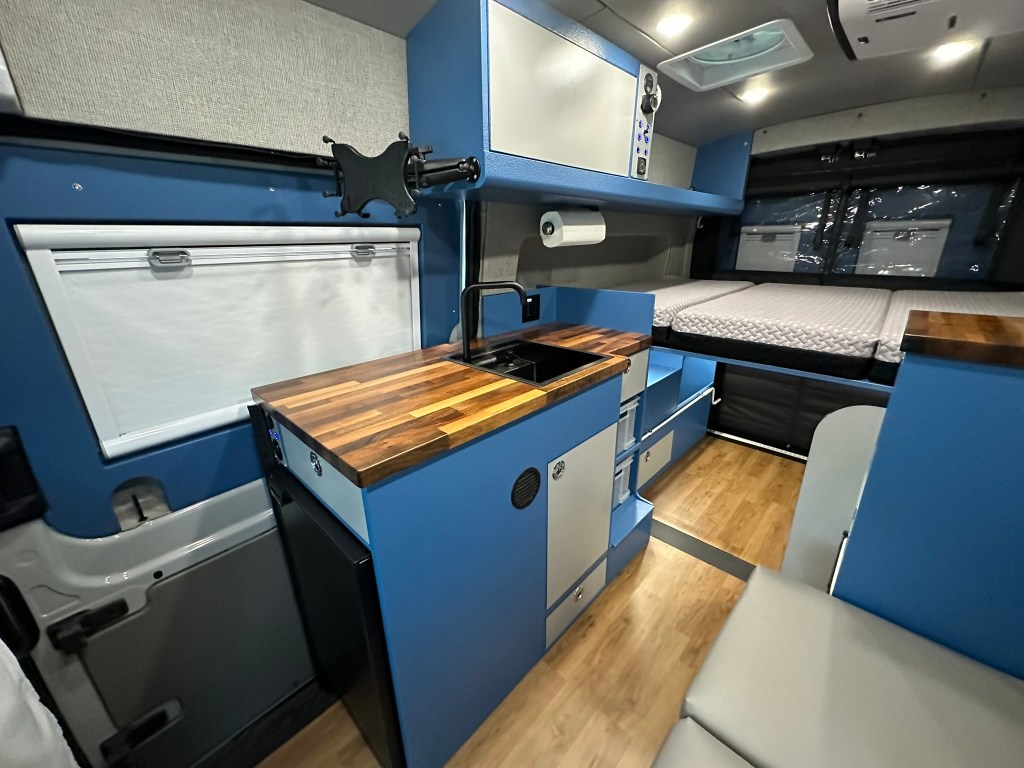

The cabinets feature a tough epoxy coating with a punch of blue and contrasted by the walnut countertops. The kitchen has the capability to be used inside or out with a massive 130L fridge and drawer stowed induction cooktop. The black stainless sink has a fold down faucet and bamboo cutting board drop in to increase counterspace. There are many storage and organization options including the bins and drawers in the crate towers, bench seats, overhead cabinets and under bed cubbys.
Cyclists (who isn’t) will appreciate the interior and exterior bike storage options or the ability to bring 4 bikes.

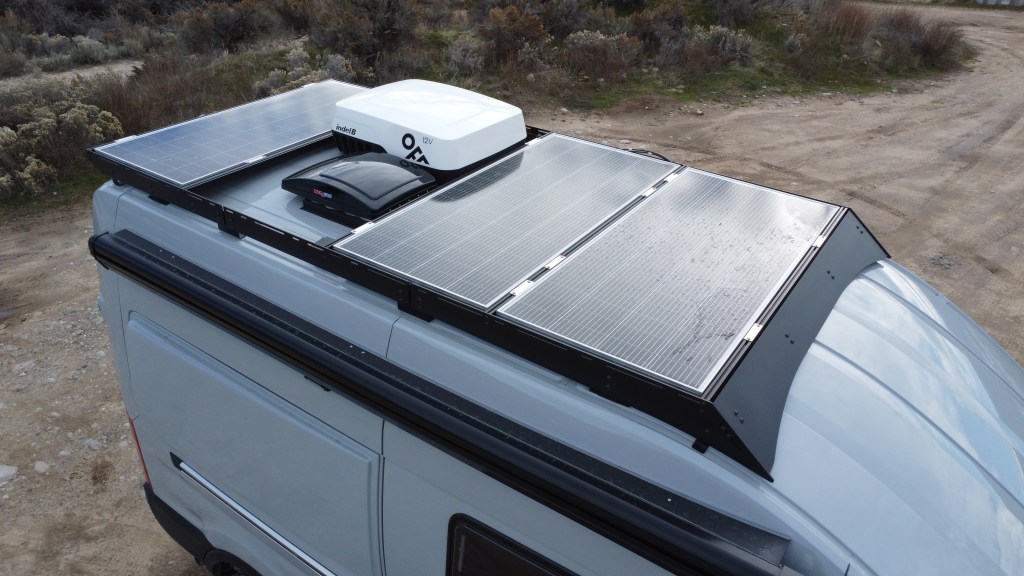

Power is supplied by a 600ah battery bank with space to upgrade to 900ah. No matter the bank size you will likely be running mostly off the 600 watt solar array integrated into the aerodynamic roof rack. There is also a roof access port to allow the installation of Starlink for those that want to maintain access to friends and work.
You can spend a lot of time off the grid in this van. The spec list below reads like a best of the best of what we have learned over the past 10 years of van building.
The van is intended to be a tough, safe, resilient, comfortable and dependable home of all homes.
This van has less than 350 miles and is ready now!
Believe it or not the spec sheet below just scratches the surface, if you are interested in the van or have any questions please inquire.

Van is built by Pinnacle Campers LLC, with a clean title in hand, and located 10 minutes from the Boise airport.

$165,000

Upfit:
Arctic Tern window package, dual pane acrylic awning windows with integral blind/screen. Driver side forward, slider door and rear doors

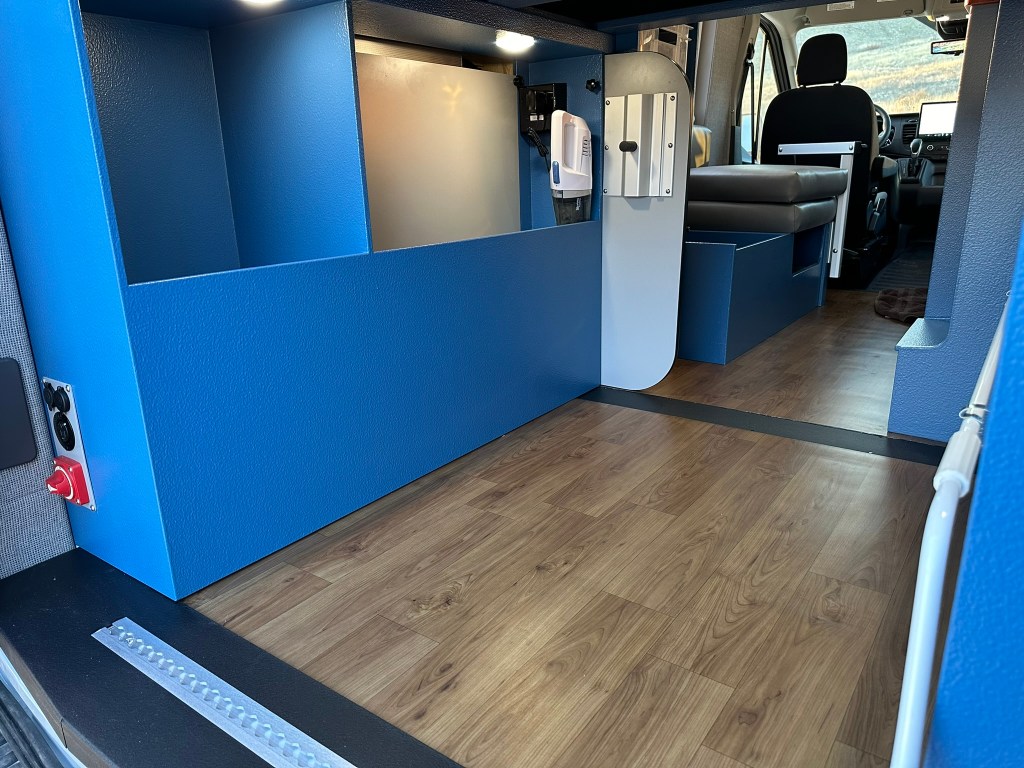

Floor Coverings, Lonwood Madera in Oregano. Floor raised with foam insulation
Havelock Wool, roof, walls, rear and slider doors
Custom interior headliner wall panels and coverings
Custom Interior Cabinets- Featuring a tough waterproof epoxy coating in Toyota Cavalry Blue

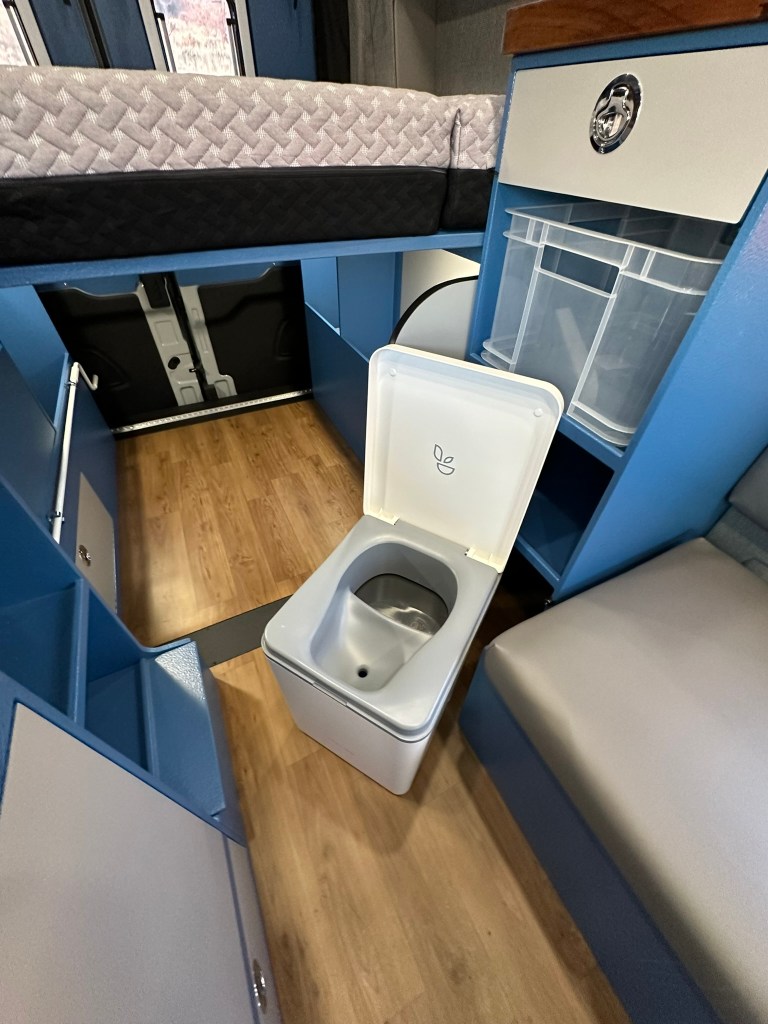

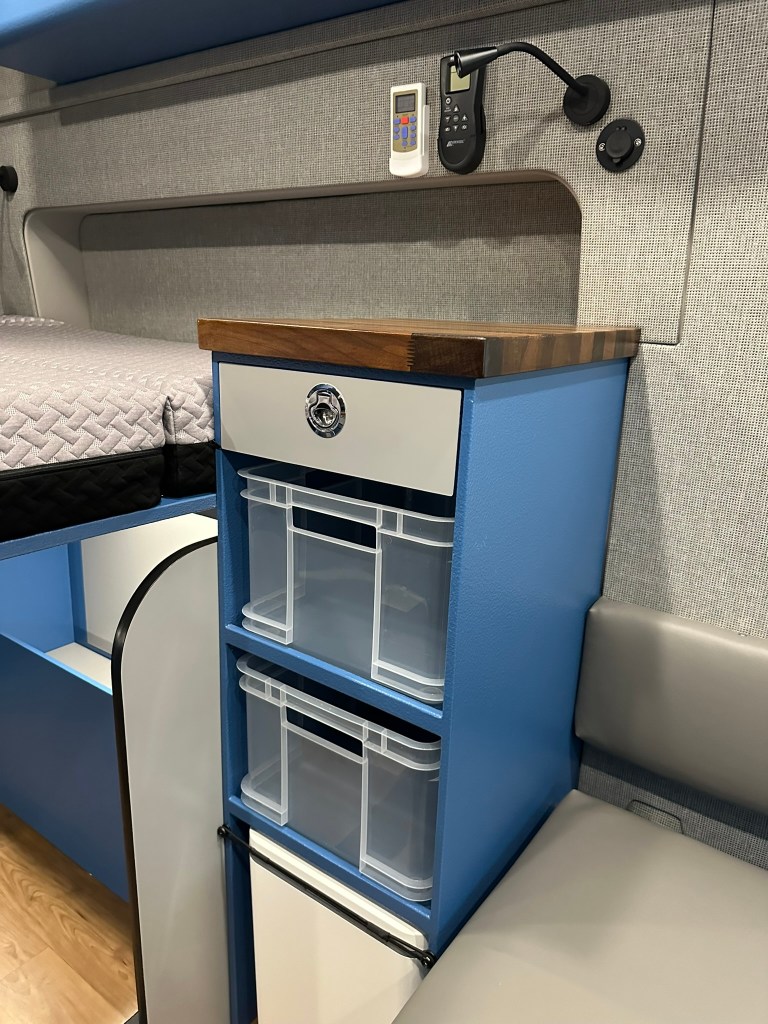

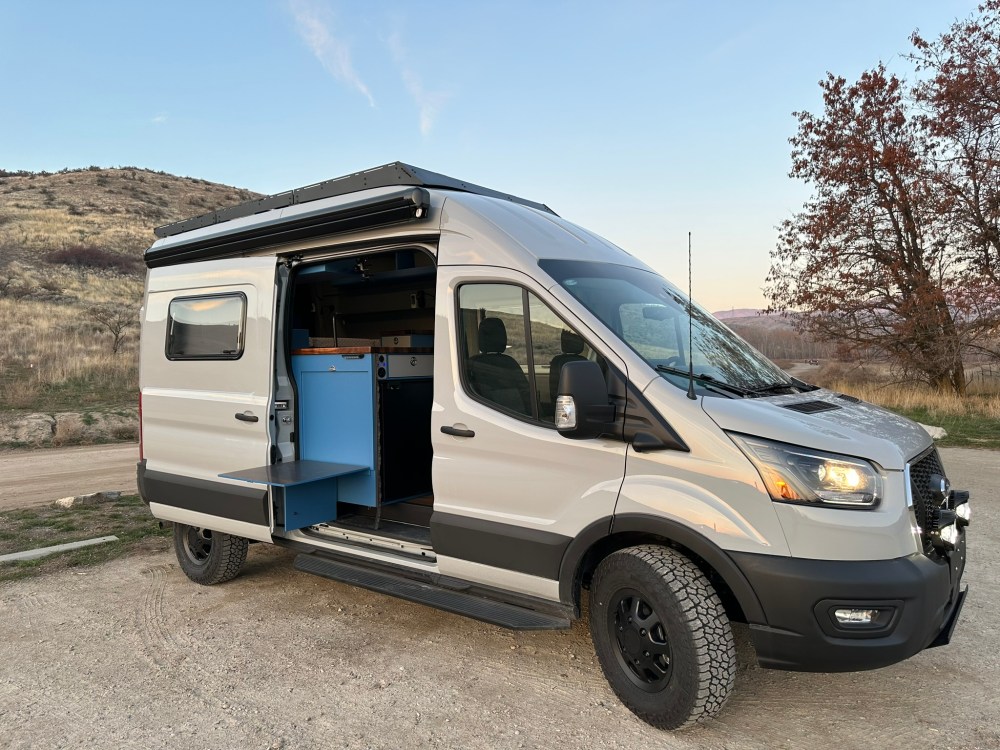

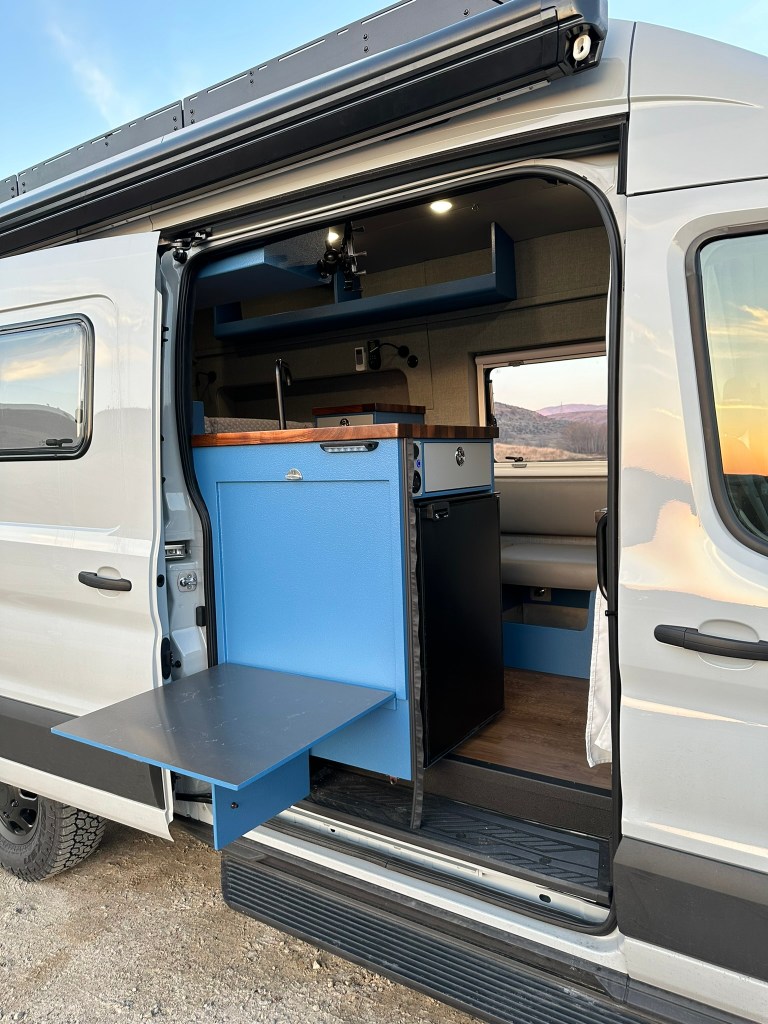

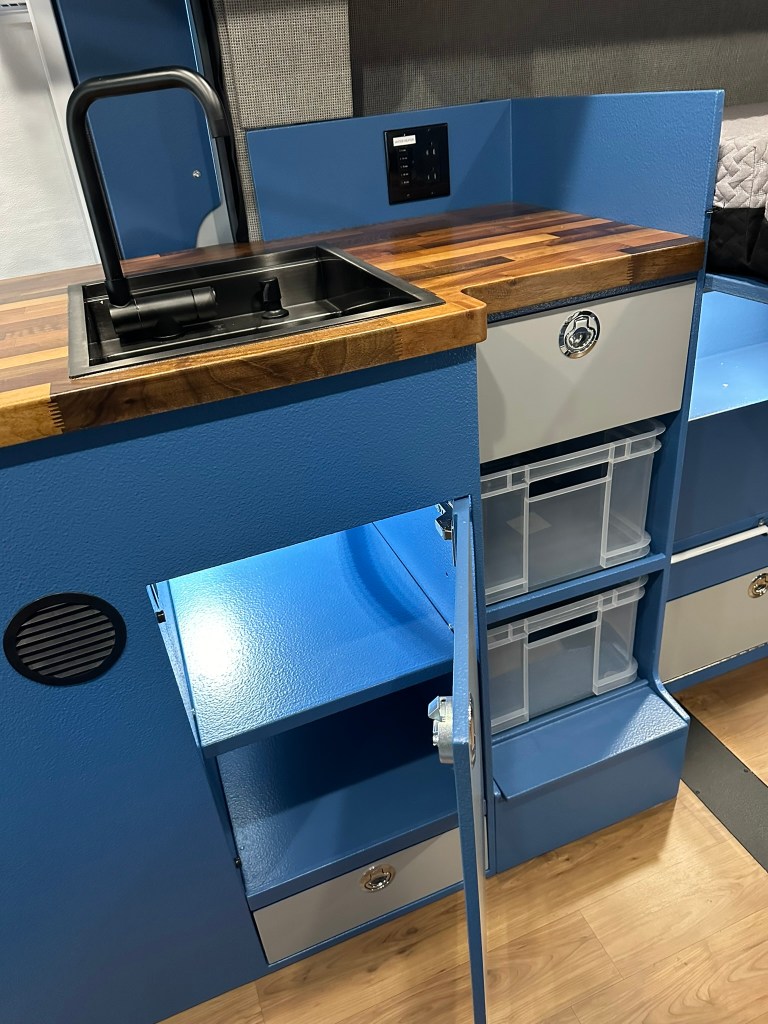

Pinnacle Campers indoor/outdoor kitchen cabinet with exterior drop down stainless steel table, 2 full extension self-close drawers, slam latches, vents, walnut butcher block countertop, black stainless sink/drop down faucet. This kitchen is setup with 130L Indelb 12v fridge. The interior also features two crate towers with 2 crates and two drawers each. The drivers side crate tower/nightstand also stows the Trelino Evo L separating toilet. We love these crates, they make it so easy to load and unload the van, take clothes into laundromats and even taking them into the grocery store to load up on supplies.

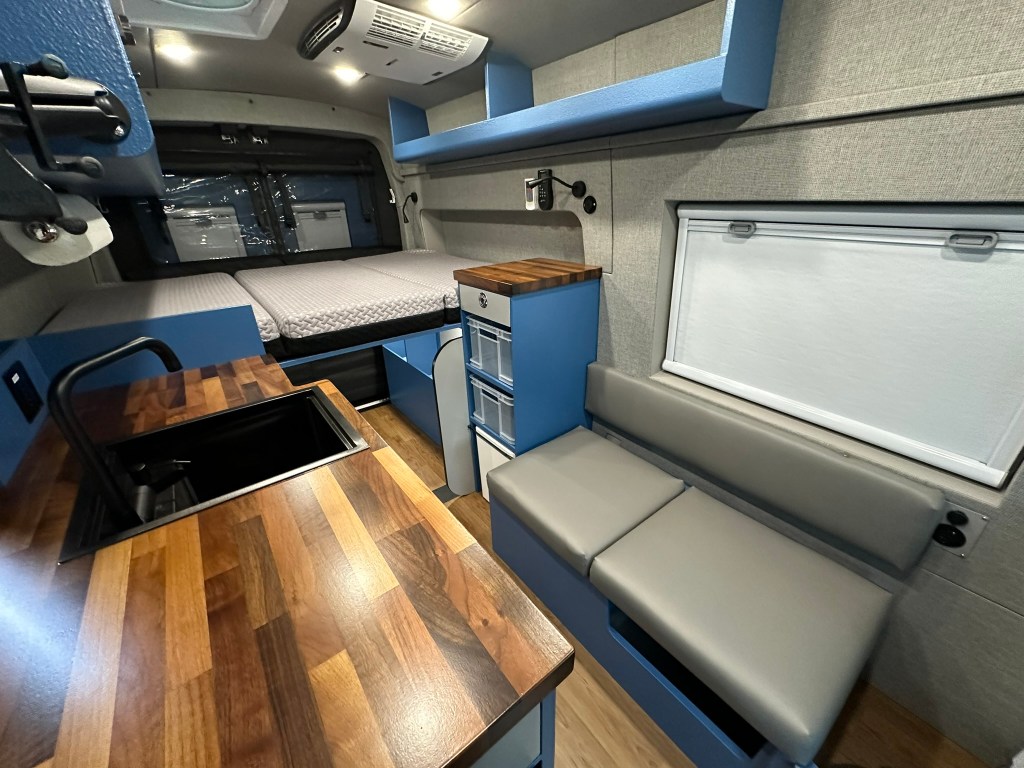

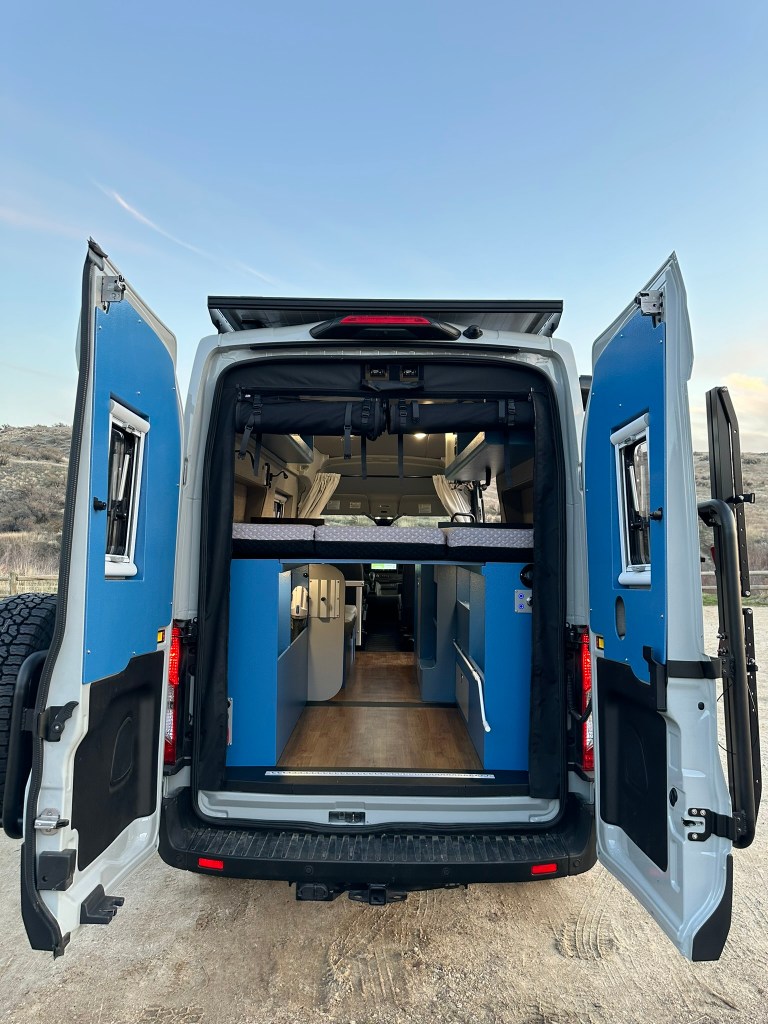

The bed area is set up for east/west sleeping with a full 52×78, bed area, and a 6″ memory foam mattress. Wheel well storage cubbies, powerwall/integrated batteries, and removable platform slat panels set at 37″ height

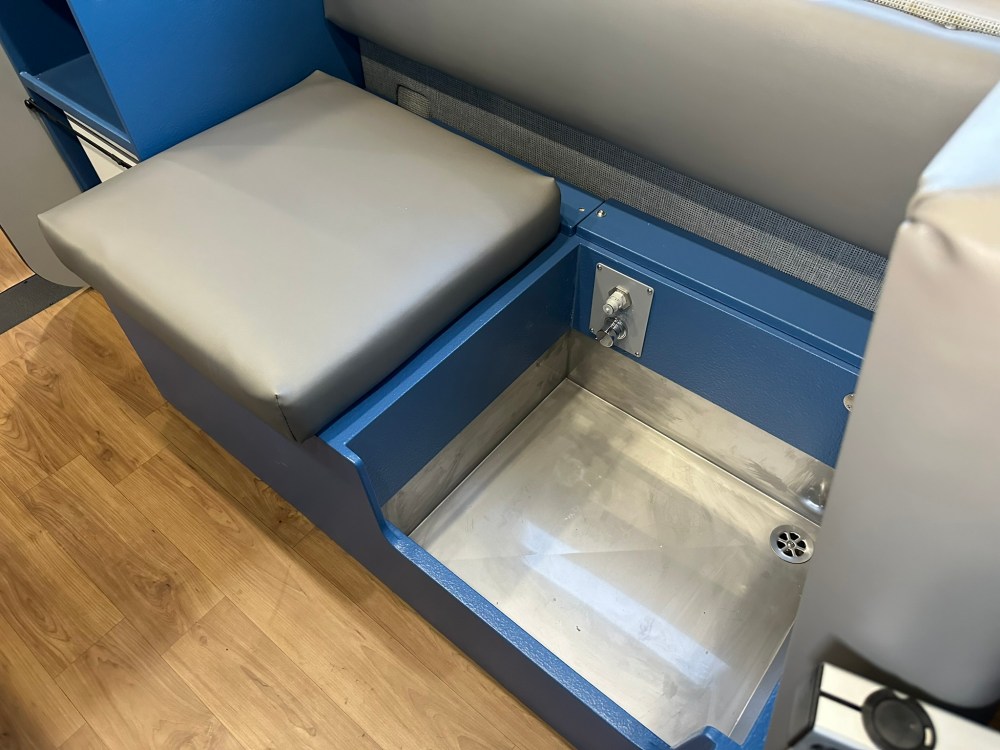

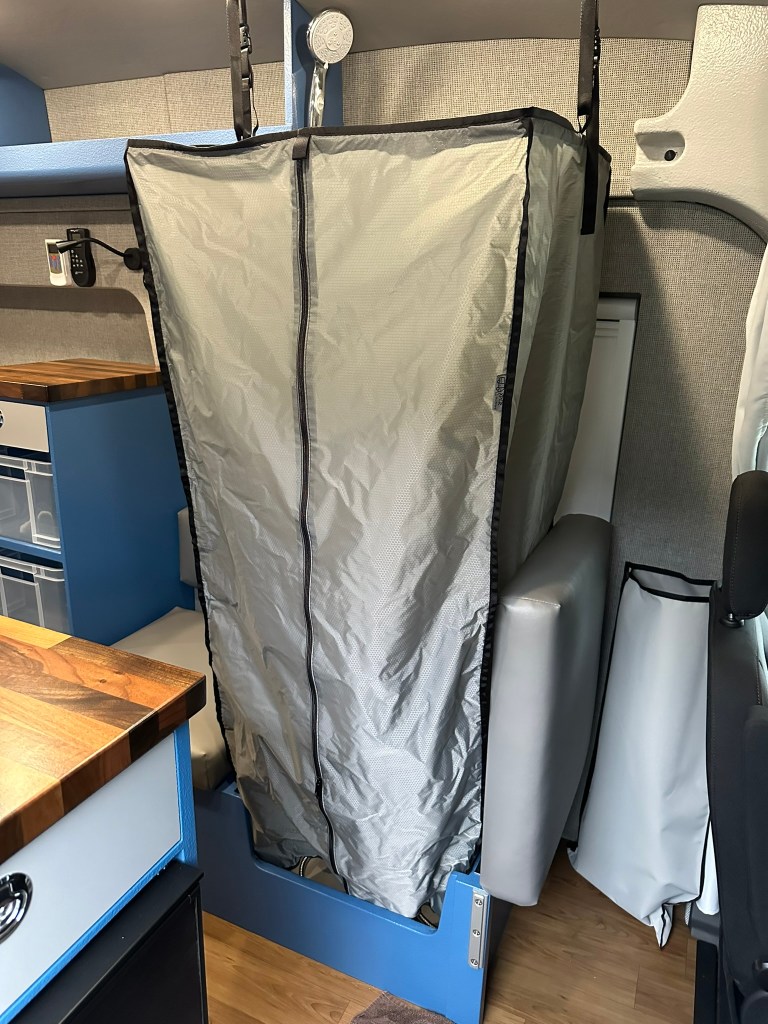

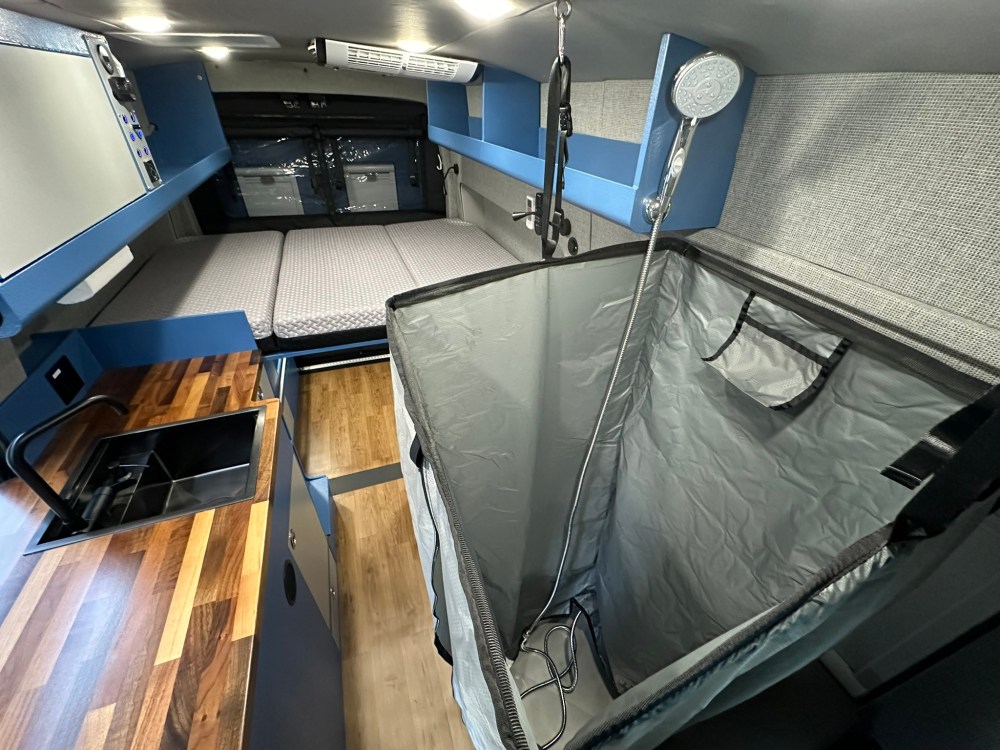

Bench seat has 4″ foam vinyl upholstered cushions split at 50/50, storage under, stainless shower pan with deployable shower curtain, handheld shower and mixing valve. That’s right, there is a full shower in the bench seat!
Cubby shelves over the driver’s side, larger overhead open cabinets with a swing up door over the kitchen on the passenger side.

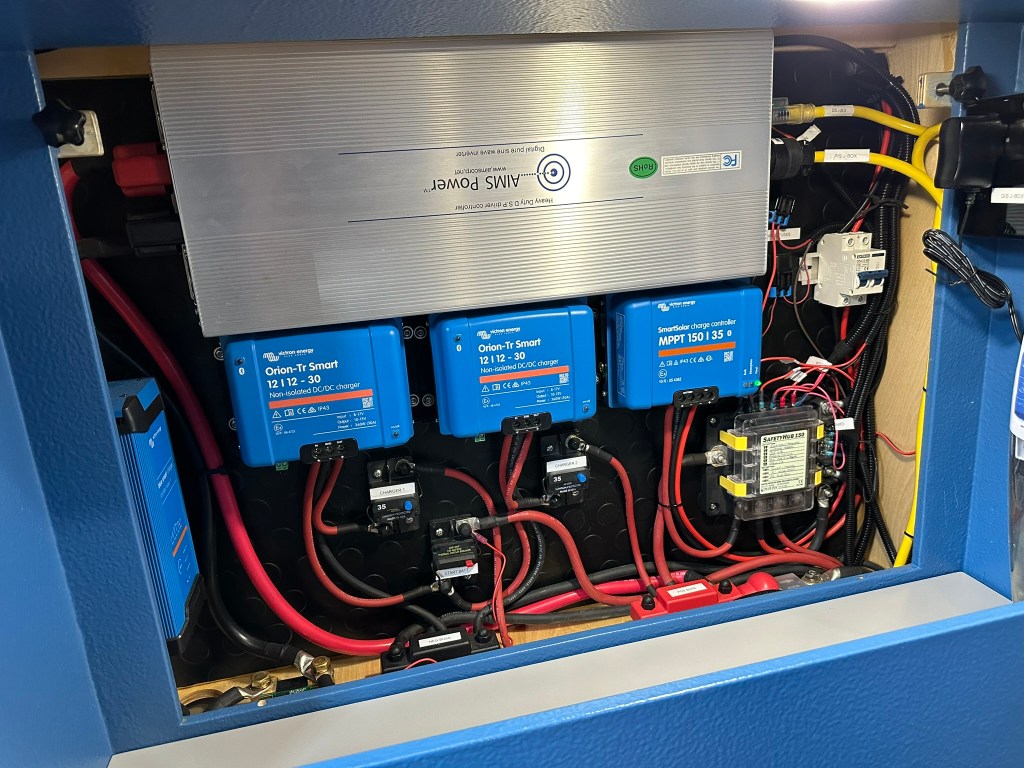

Electrical: Capacities: 600ah/7680wh storage (upgradable to 900ah), 600w solar, 60 amp engine charging, 25amp shore charging
2x 300ah Epoch Lithium batteries, heated, bluetooth monitoring
Aims Power 3000w inverter, 110v single outlet @ 6 locations
Victron BMV-712 Bluetooth battery monitor
2x Victron Orion DCDC Charger 12/12 30a
Victron Smartsolar MPPT 150/35
3x Solar panel, 200w/24volt
Blue Sea 12 circuit fuse block PS, Safety hub 150 fuse block DS
Exterior LED porch light PS, LED exterior kitchen light
8 ceiling lights with dimmer, 2 zones, switched at two locations
Cargo lighting, switched at two locations
USB/DC cig plug @ 7 locations, including cig plug, and 110v power in upper cabinet with roof access. For installation of things like Starlink, WIFI boosters, weather station, etc.
SCAD twin tank level monitor

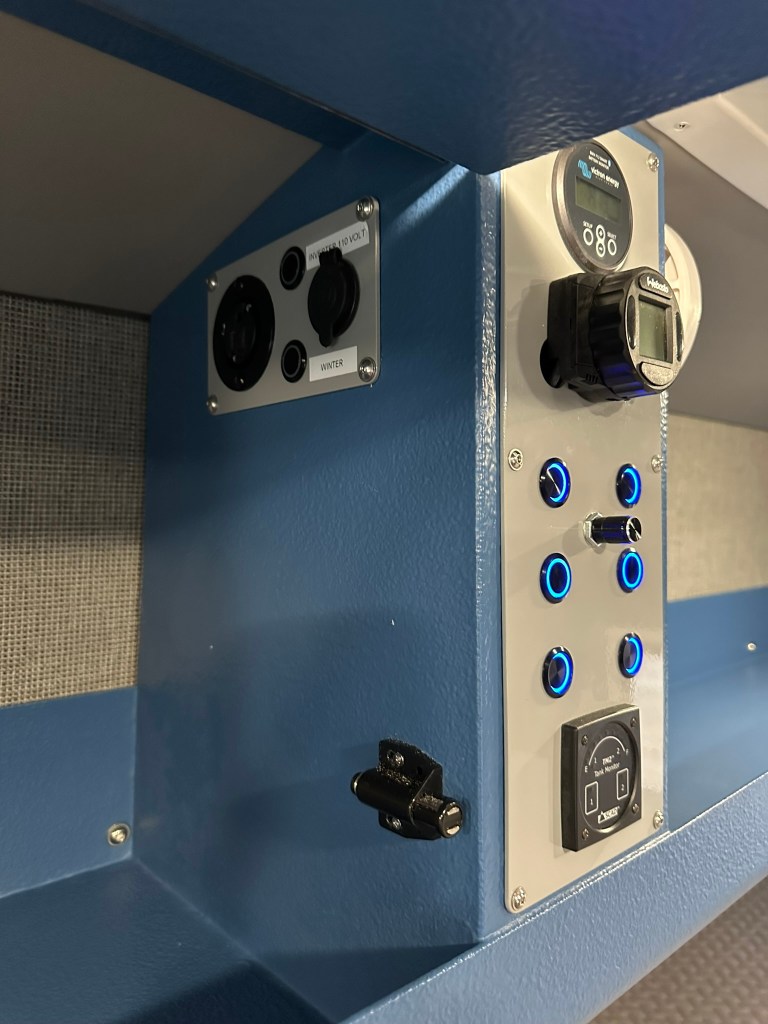

VanCentric control panels.
Water system: 21g fresh inside, 4 gallon hot water, 12g grey under
Isotemp Slim Stainless steel 4 gallon water heater, uses engine coolant loop or 110v element
TEC Black stainless sink, fold down faucet, soap dispenser

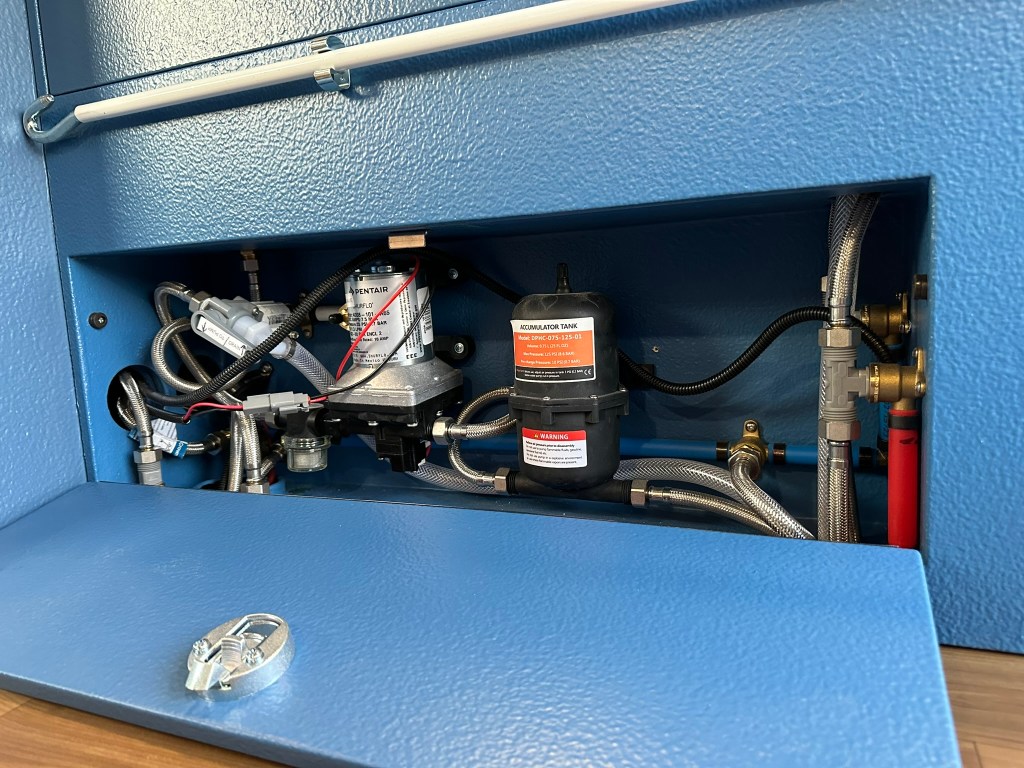

Pump Shurflo 3gpm with accumulator tank
Fresh tank 21 gallon indoor mounted, rear door fill, vented
Grey tank 12 gallon under mount (DS), manual dump valve, vent/over flow, heated via engine coolant loop, and heat trace
Water fiter @ at sink cold faucet Aquacrest 5k
Stainless steel shower pan in bench seat

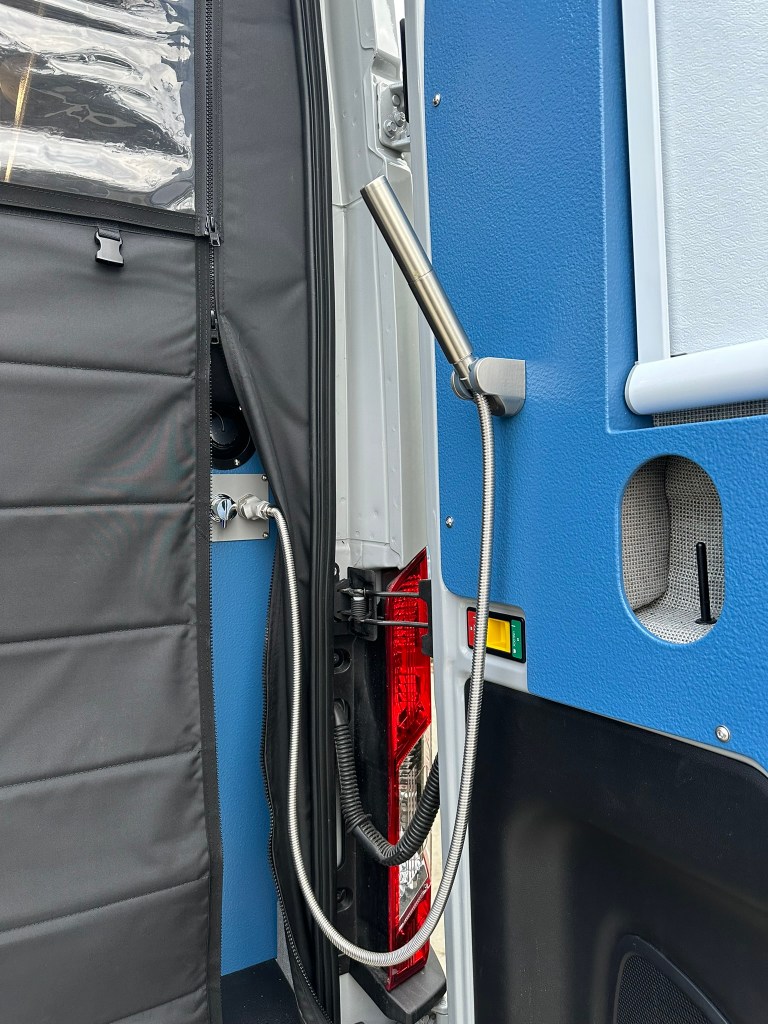

VanCentric control plates for shower quick connect ports and hot/cold water valve. Two QR handheld shower/sprayers can be used at either location.
Appliances/Accessories:
Indel OFF Plien-aircon 12v air conditioner
Webasto STC2000 gasoline fired air heater, Smartemp 3.0 control with bluetooth

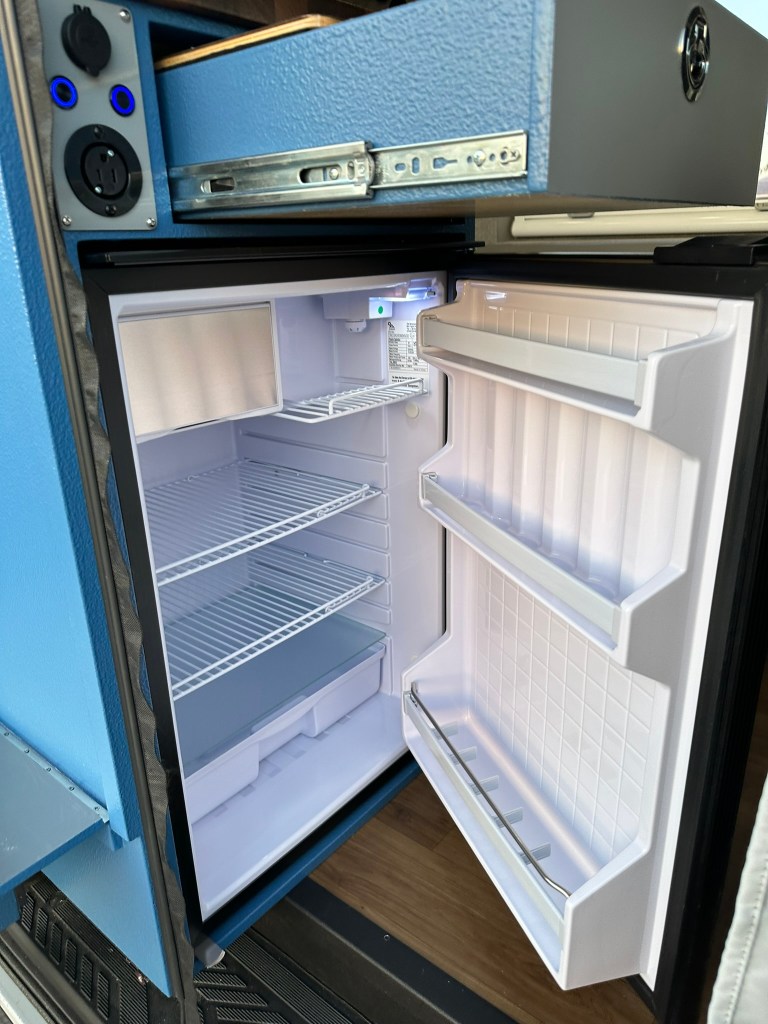

Indel OFF 130L 12v refrigerator
Maxxair 6200K roof fan, smoke lid

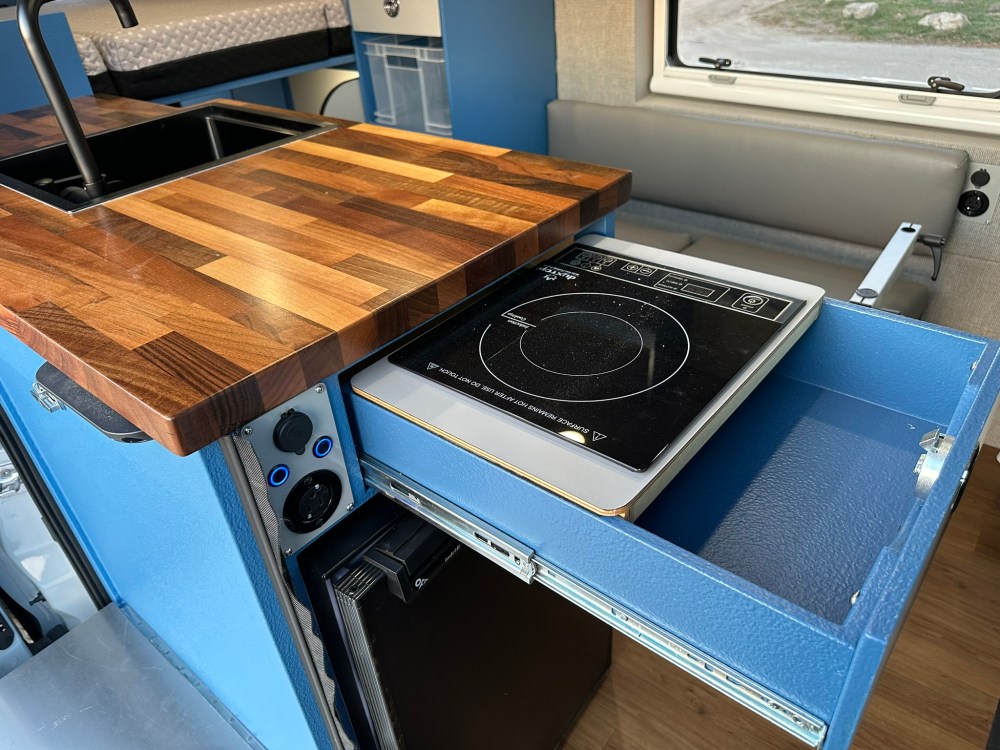

Duxtop 1800 watt induction cooktop
Trelino EVO L Separating toilet 5.2 gal.
Whall cordless handheld vacuum
Lagun table leg with laminated table
RAM mount for 9-11″ tablets
Mattress: Memory foam tri fold 6”
Xplor Outdoors 4 season cab shade kit
Xplor outdoors shower curtain

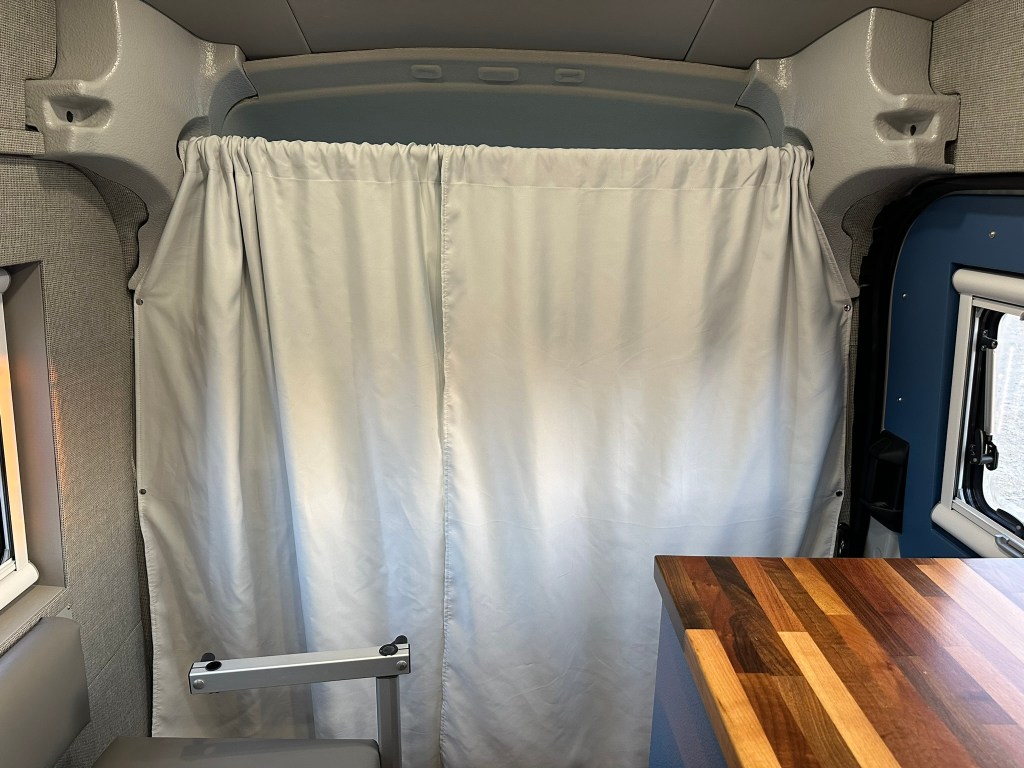

Cab divider curtain kit can be deployed between the open rear doors for shower privacy.
Bug screen kit, Pinnacle Campers, slider

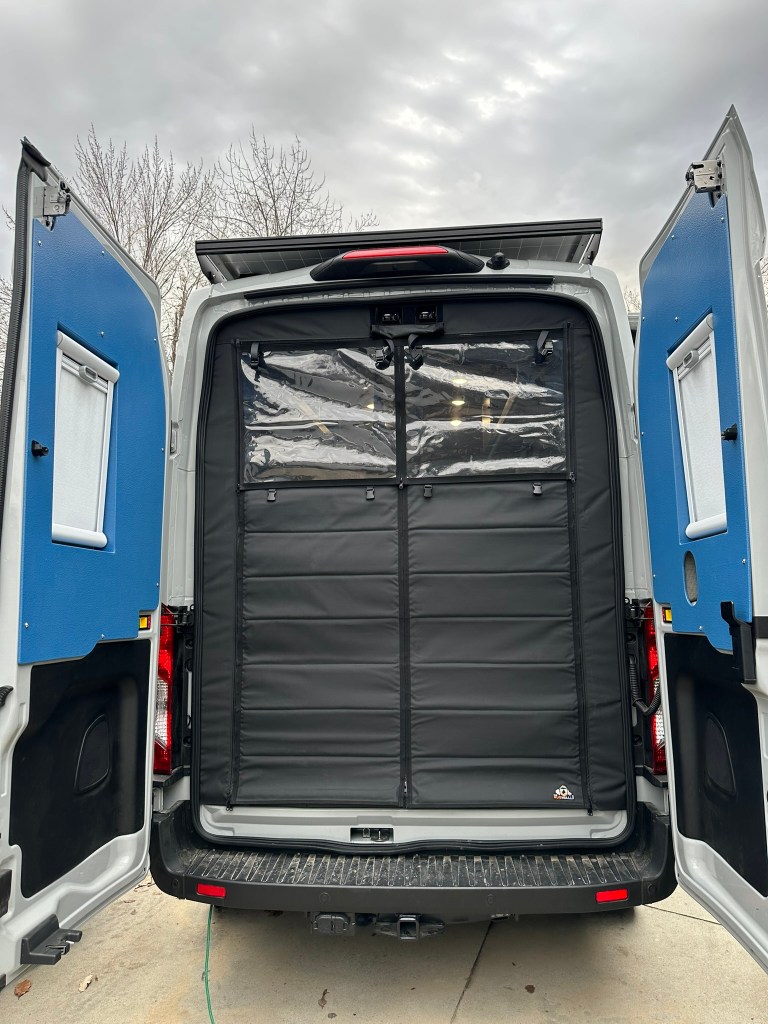

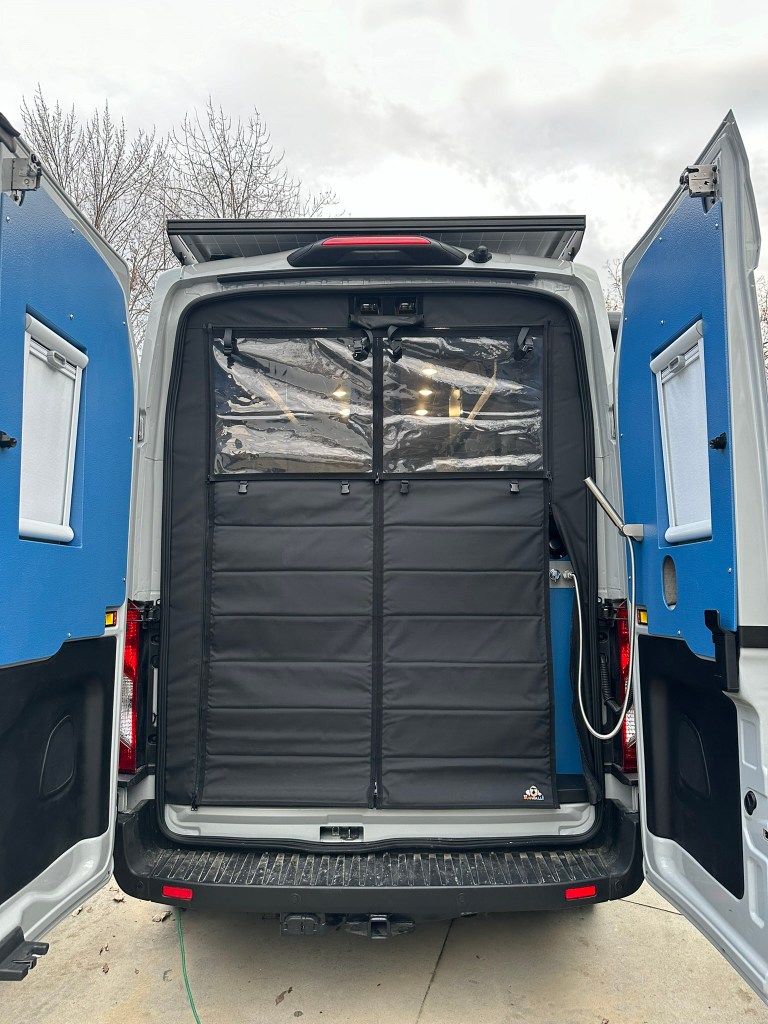

Bug screen kit, Bug Wall 4 season insulated, rear garage
Ford Transit tray style floor mats
Hydraulic jackstand and folding lug wrench. With the lift the stock jack isn’t very safe.

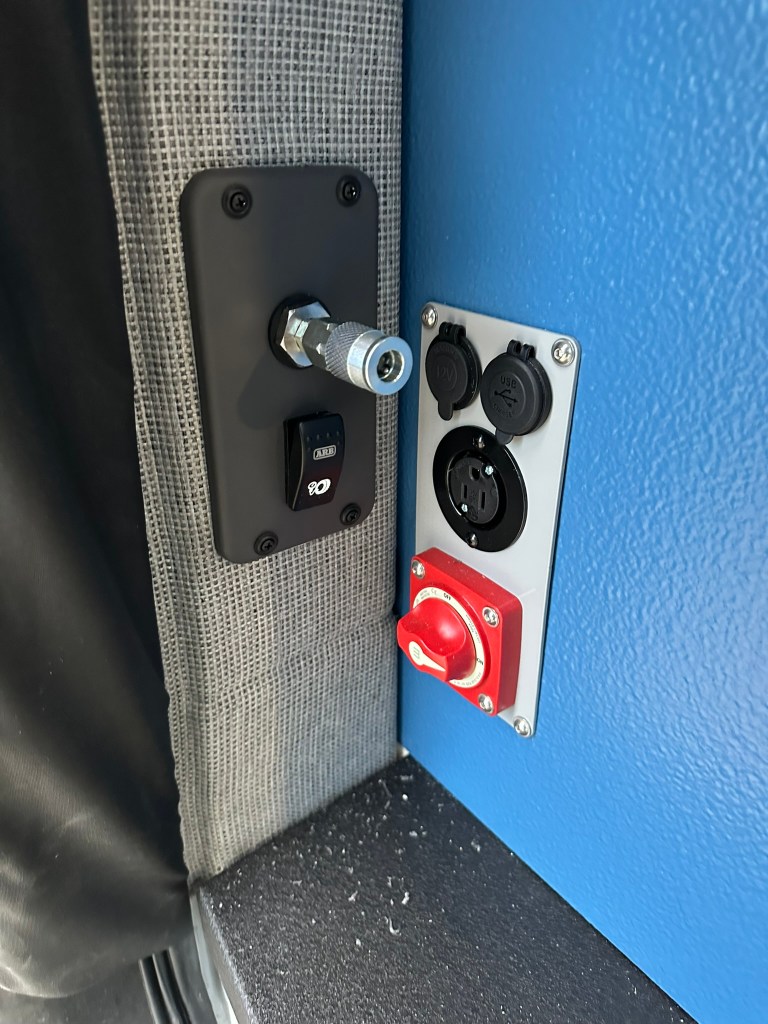

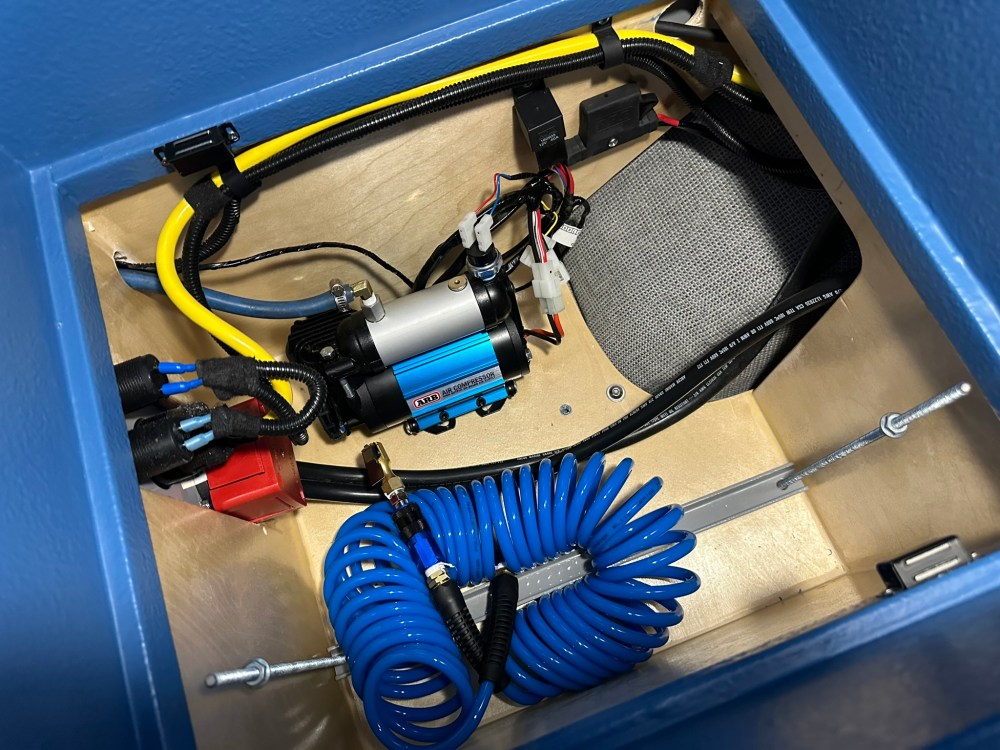

ARB Air compressor CKMA12, with rear QR fitting, locking chuck, and 25′ coiled hose. Can be used to blow out van plumbing system.

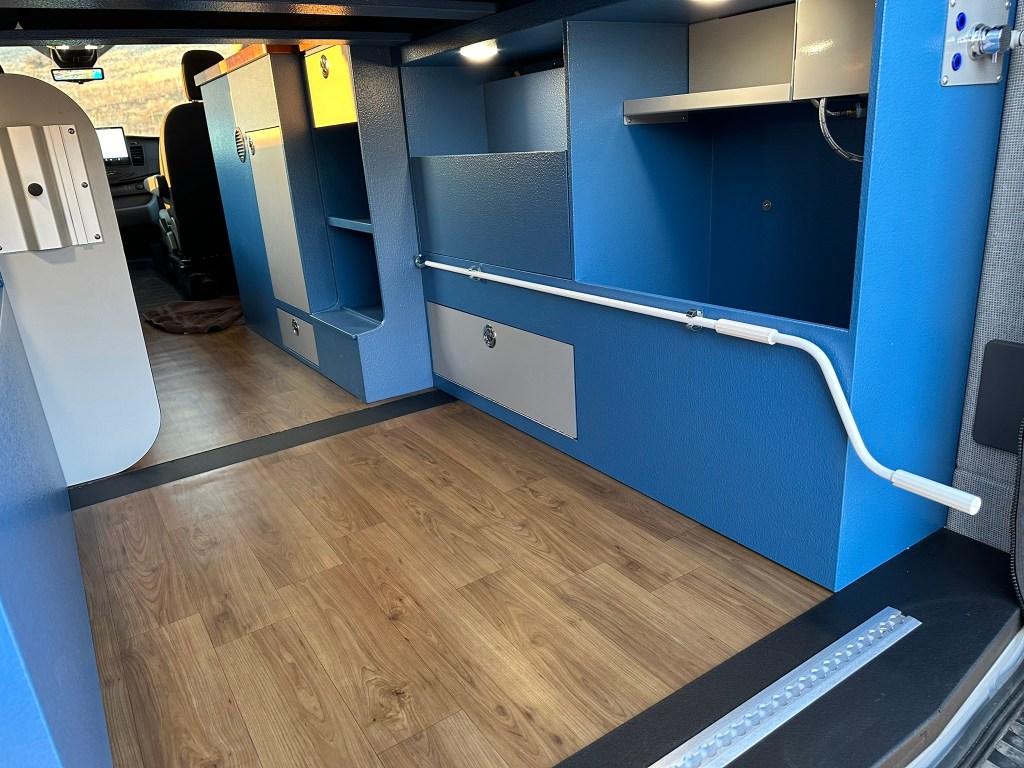

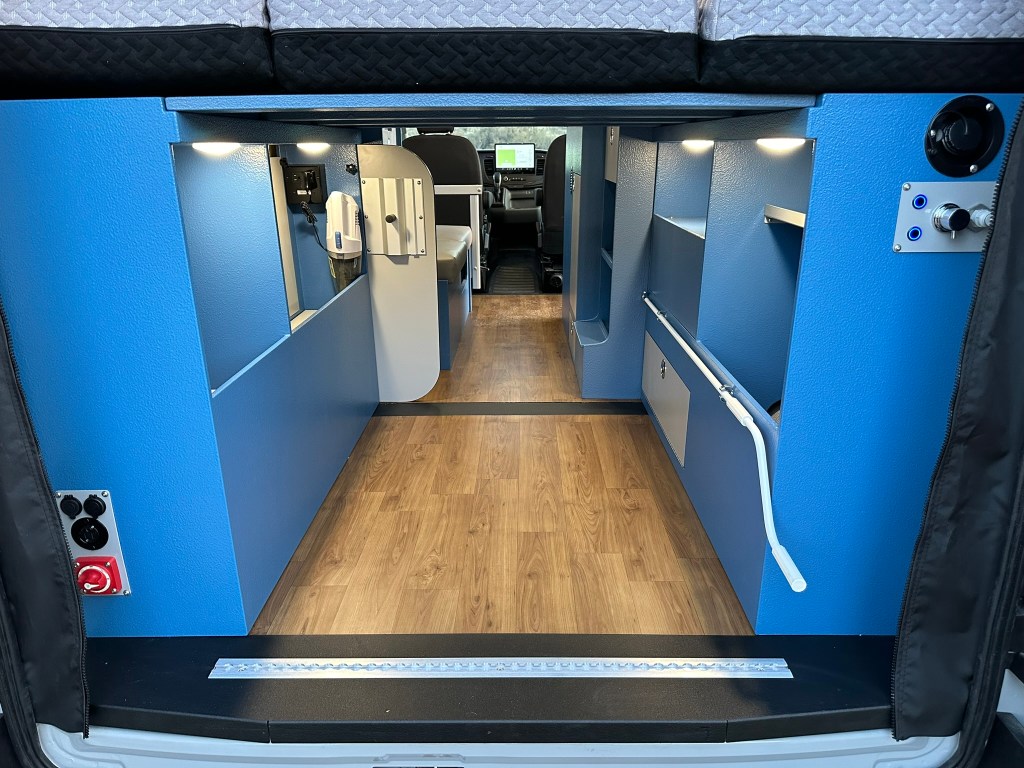

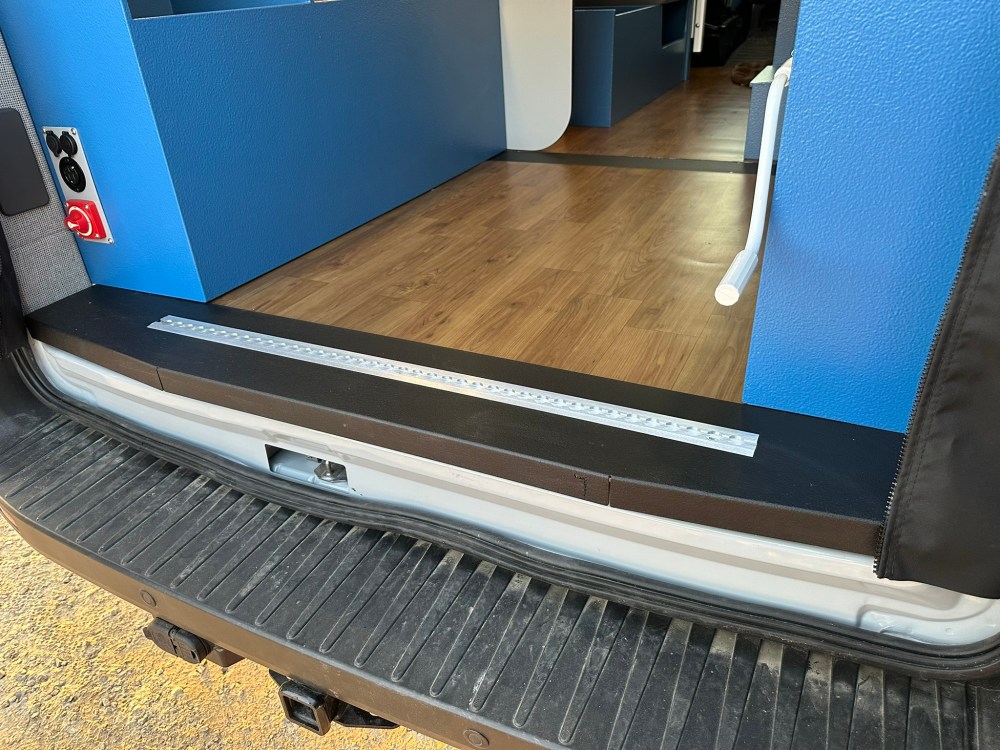

VanCentric rear threshold with L-track
Freedom coast fork mounts
25′ Fresh water fill hose and shut off spout
Exterior accessories:

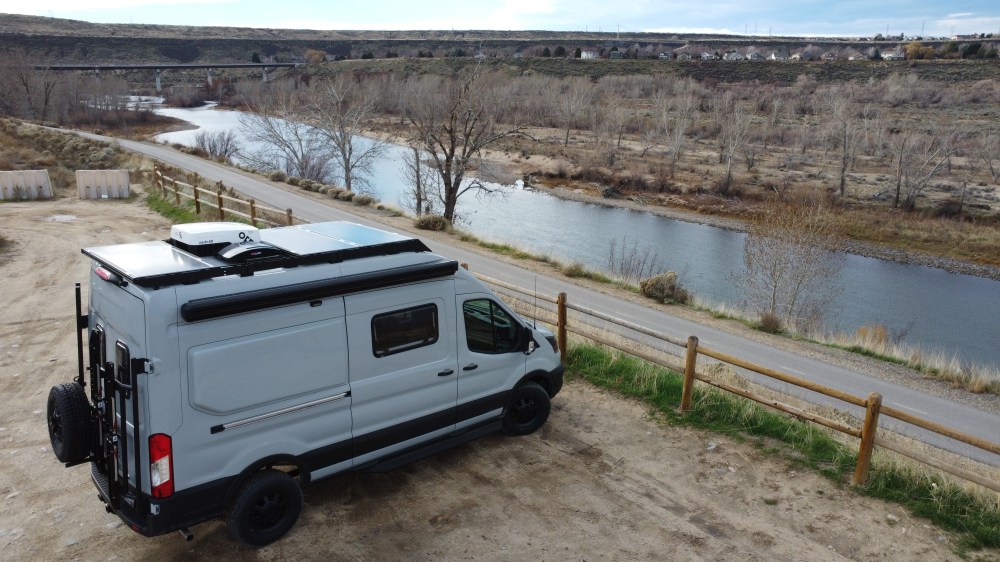

AVC RIG roof rack

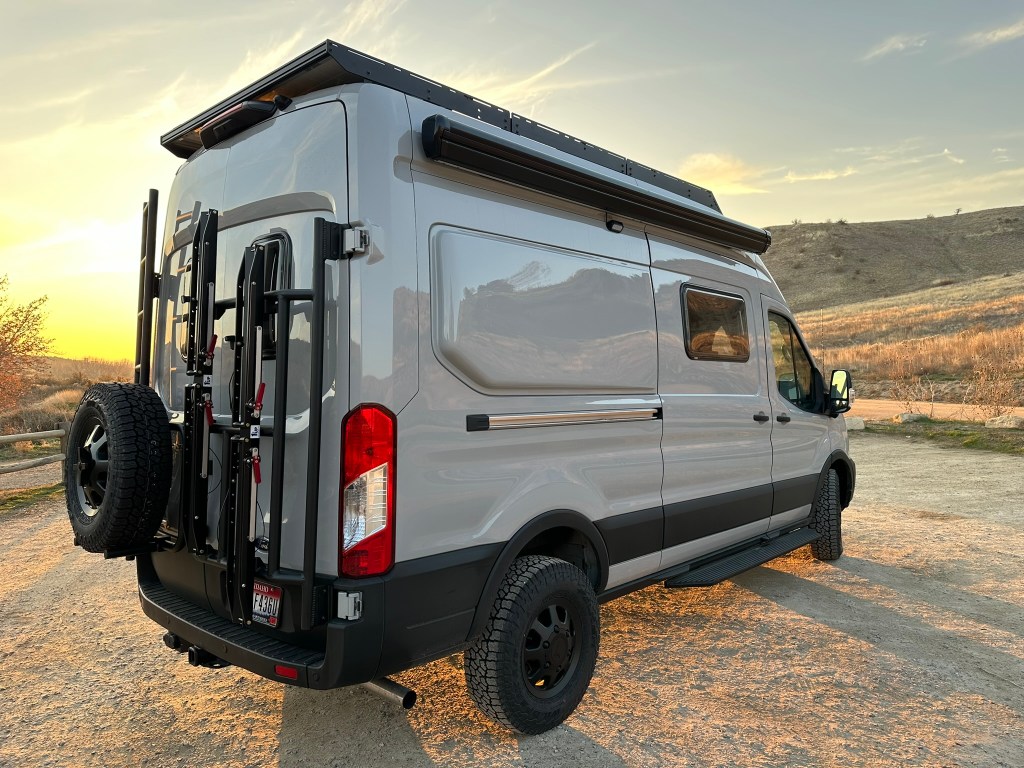

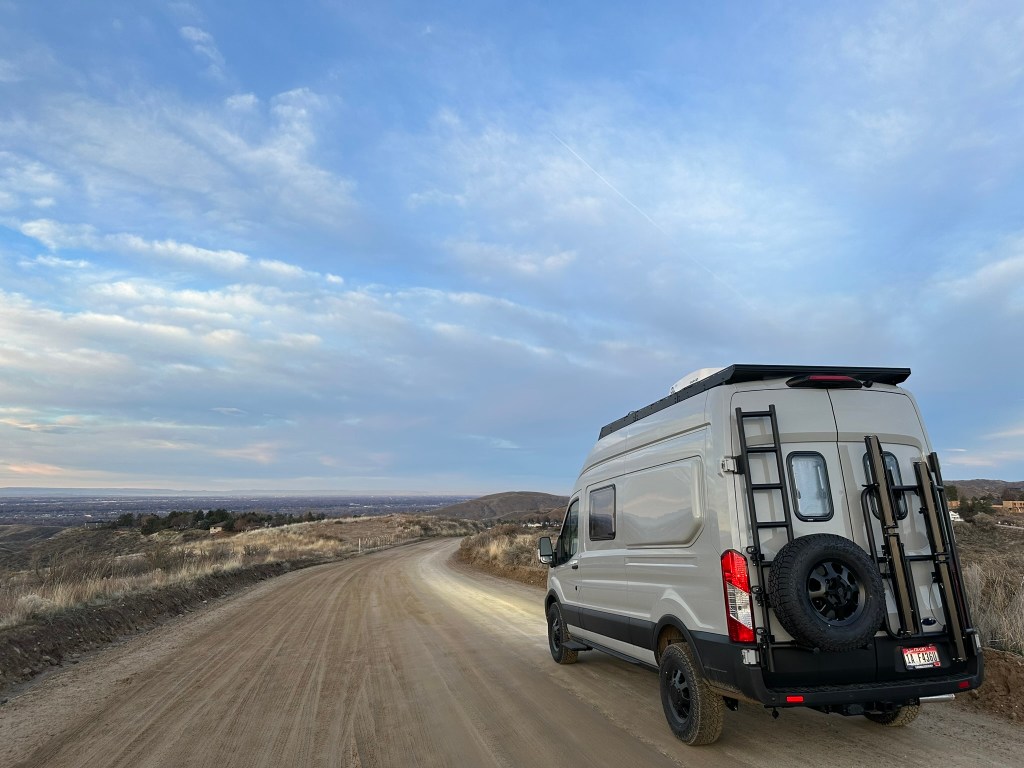

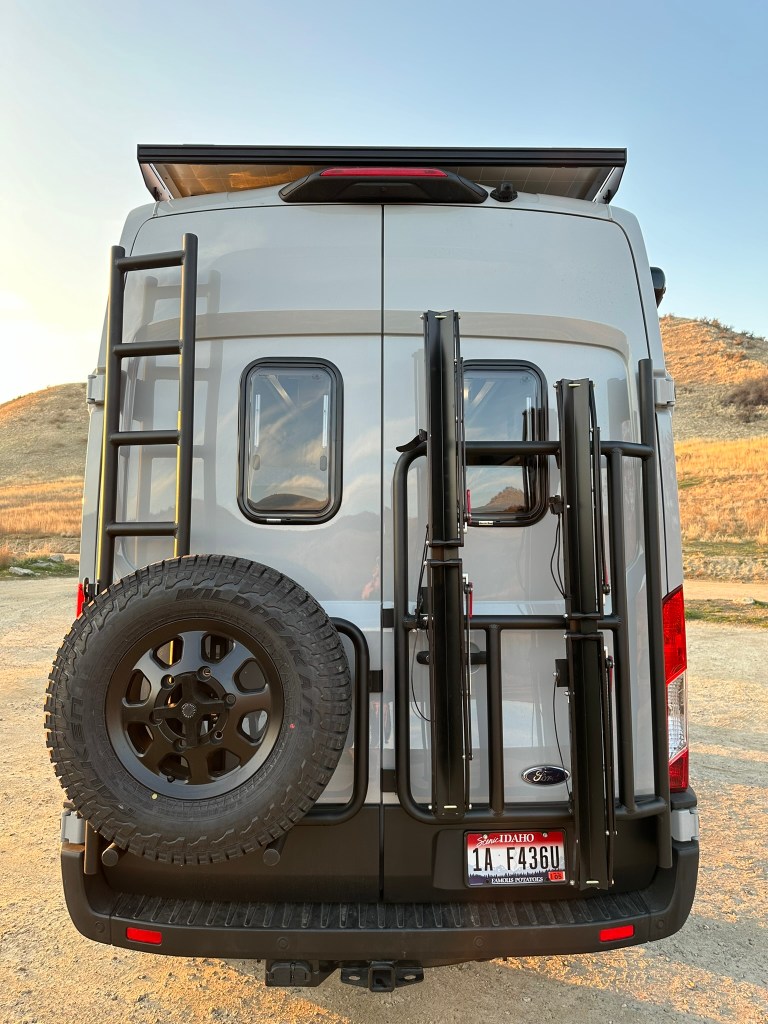

Aluminess ladder/spare tire rack
Aluminess rear door vertical bike rack with 2x OneUp mounts

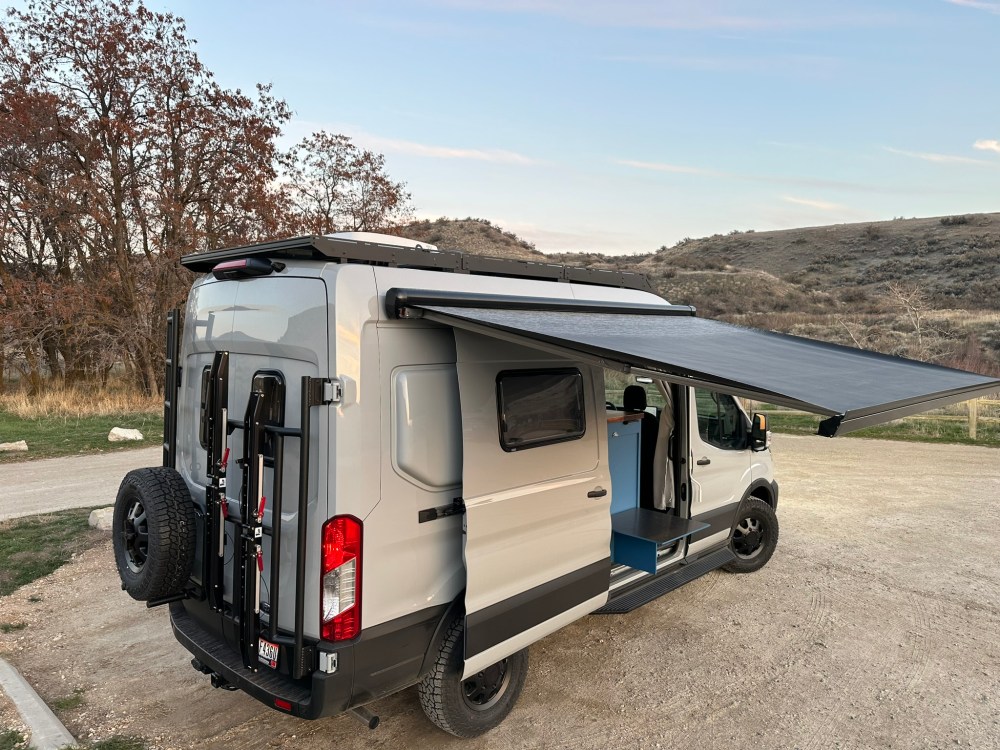

Dometic 9500 awning, 10′, black, manual, wall mounted
Van Compass Stage 3 Topo 2.0 Lift, blue springs, rear shock tower high clearance brackets, rear spring pack, tuned Falcon rear shocks. Installed with Alignment
Van Compass front skid plate
Baja Designs LP6 x2 with VanCentric front light plate
VanCentric wheel set, 5x, black, 16×7, spare with tire monitor (TPMS)
Falken Wildpeak 245/75/16 5x

Check out the slideshow here for more pics:
