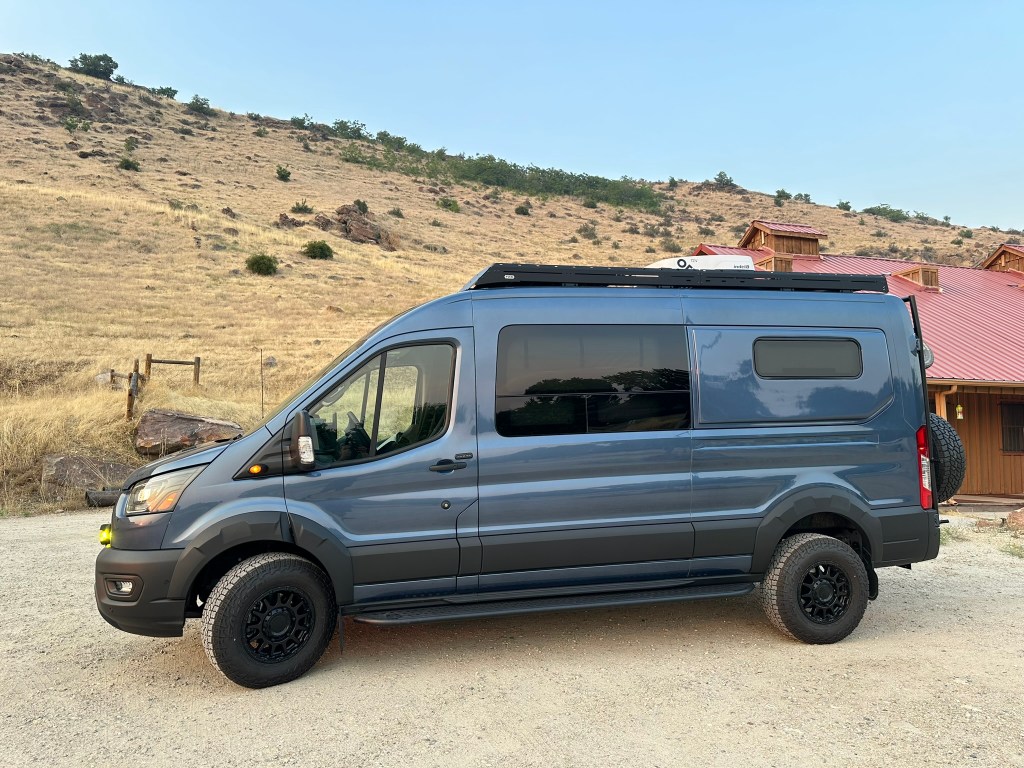

23 Ford Transit Trail 148″WB Mid Roof AWD

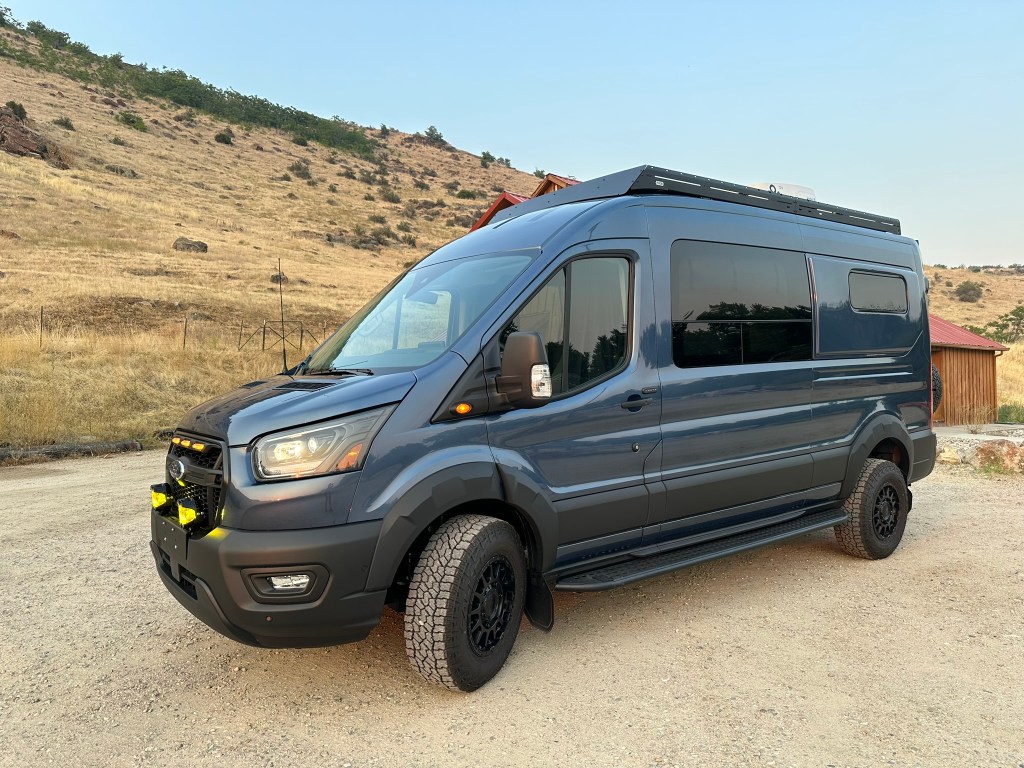

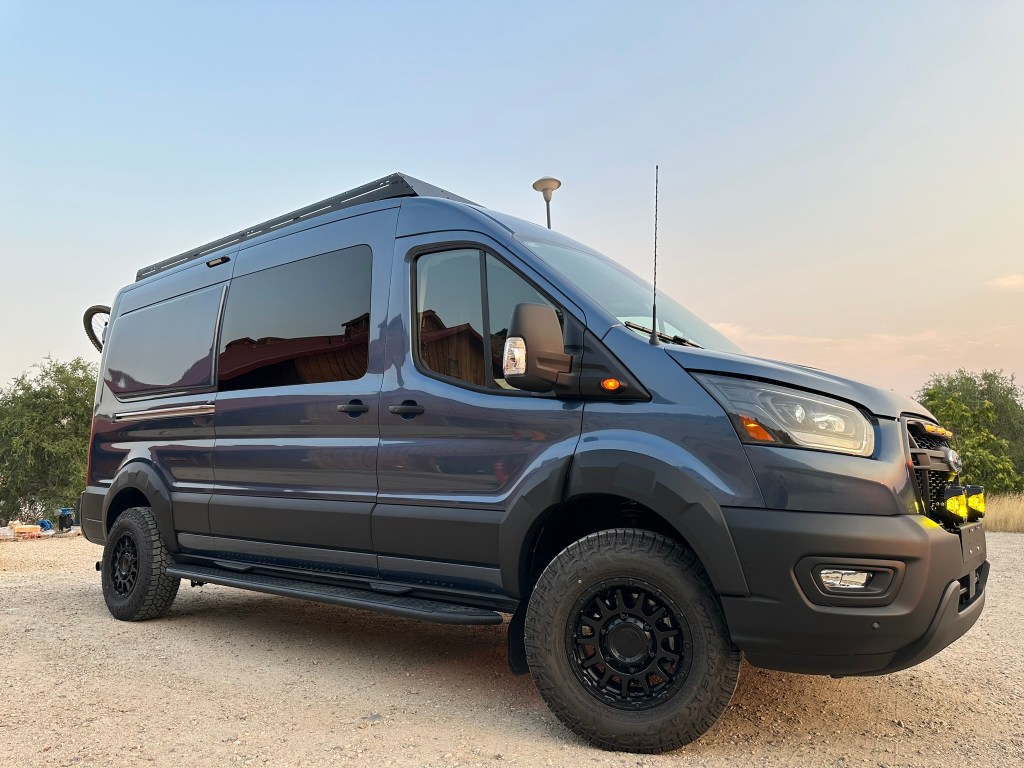

2023 Ford Transit 350 AWD, 148″WB regular length, Trail Package, blue metallic, ecoboost v6, swivel seats, tow/haul package, 12″ screen, power sliding side door, see window sticker for all options.

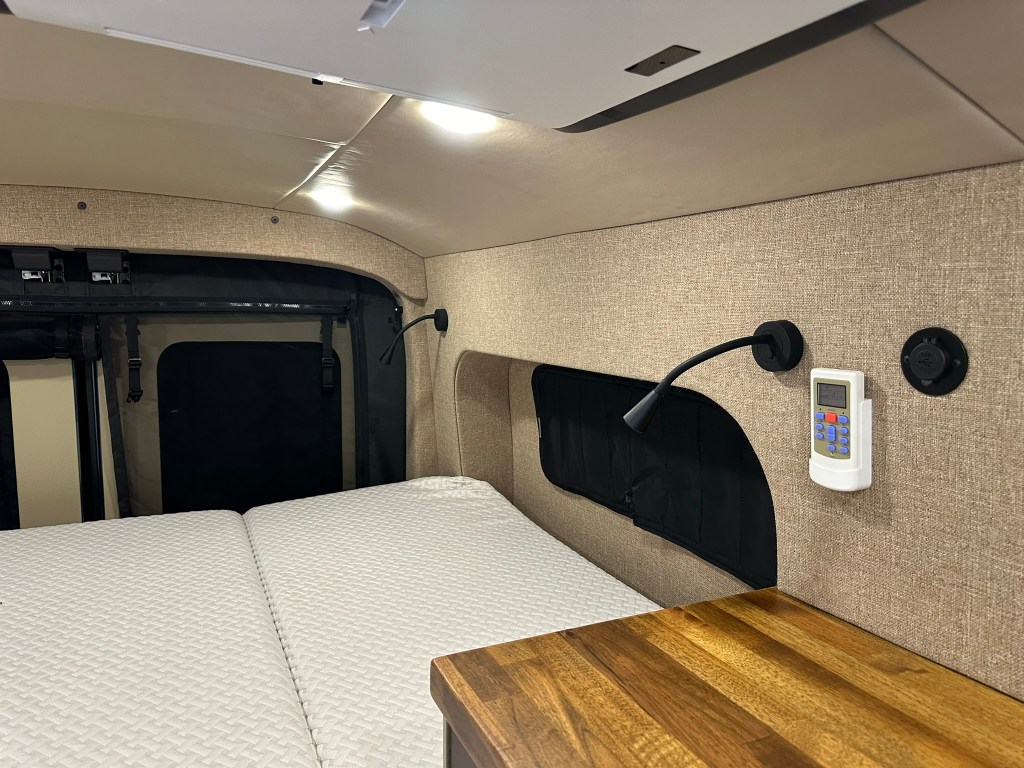

The Transit Trail features a factory lift, upsized tires, and more aggressive styling thanks to the “raptor style” grill and oversized fender flares. The buildout includes an indoor/outdoor kitchen in the slider door with hot and cold water, removable storage bins, slide out fridge and walnut butcher block top. Full size loft bed in the rear with Flarespace flares to allow “east-west” sleeping and a full 52″ x 80″ bed space. There is an awning window and adjustable reading lights at the head of the bed, ample gear storage underneath, and in the side pod cubbies. The rear threshold plate with integrated L-track allows for indoor bike storage options.

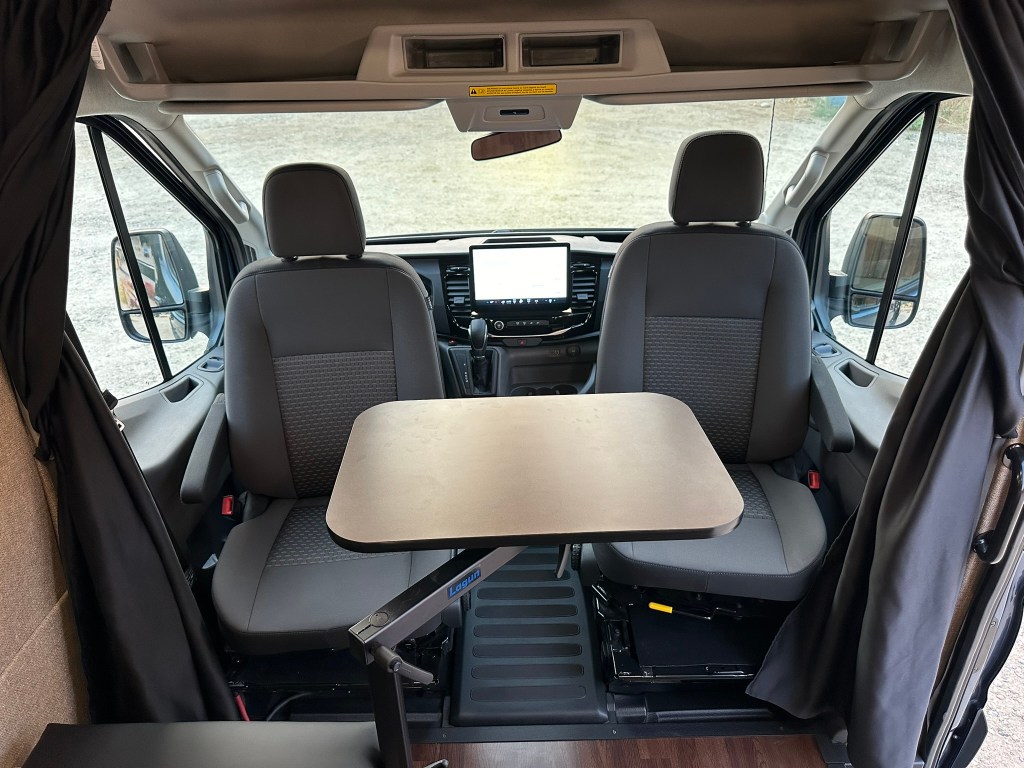

The bedside nightstand also has removable storage crates and a separating toilet which glides out from below. The crates are great for taking inside when loading or unloading, laundromat, grocery store, etc. whether its clothes, food, or gear, they are super convenient, lighter than drawers and take up less space. The dinette bench seats have even more storage options below. You can set up the swiveling table at the dinette or at the factory swivel seats via the Lagun swiveling table mount. The table also has a specific stowed location. We left the forward bench seat backless, which can be used facing rearward, straddled with your back against the wall or as an ottoman when sitting at the rear facing drivers seat.

This van includes a roof fan, 12 volt air conditioning, opening windows for ventilation, a gasoline powered hydronic heat and hot water system, and a full set of insulated window shades, and door screens.

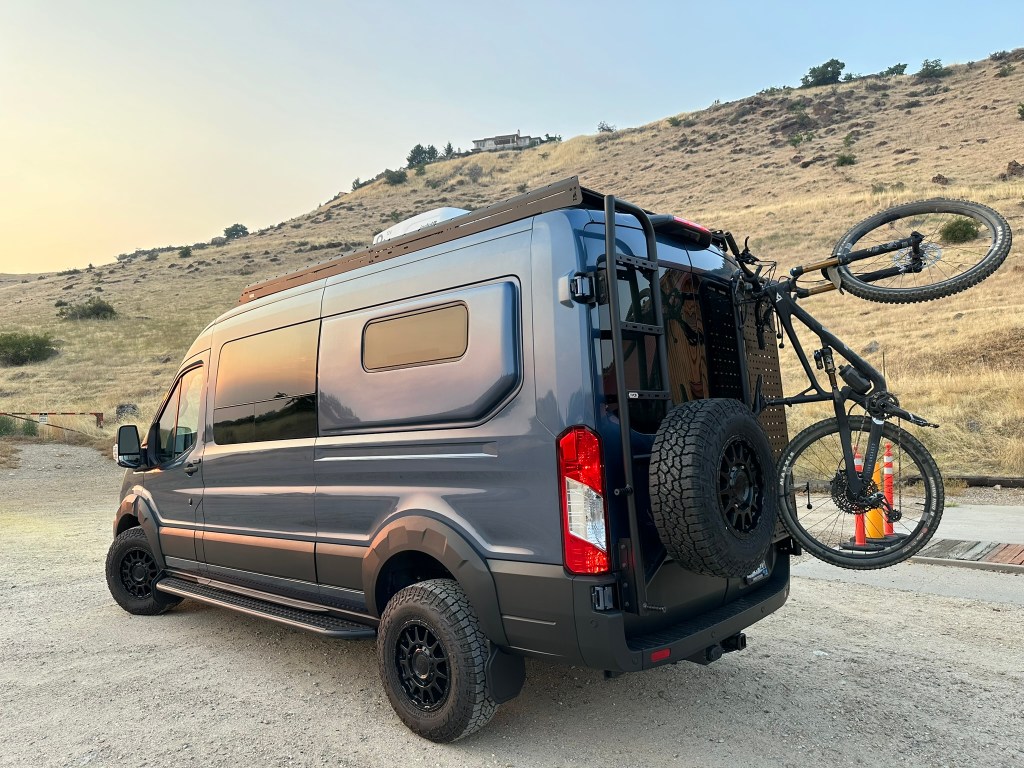

Exterior goodies include a Flat Line Van Co. roof rack with 500watts of solar, Flatline Van Co. rear door tire rack with a full size spare wheel and tire with TPMS for 5 tire rotations.
Van is 9’4″ tall, CAT Scale verified 7750lbs full fuel/full water, Interior height in the center is 5′ 9″

See the full spec sheet below for details:
Upfit:
Flarespace flares
CRLaurance Driver side forward awning window, driver side awning bunk window
Floor Coverings, Lonseal Madera in Hot chocolate
Insulation, 3M Thinsulate, roof, walls, rear and slider doors.
Custom interior headliner wall panels and coverings. Automotive tweed, oat. Headliner vinyl, tan. Bench seat vinyl, color black.

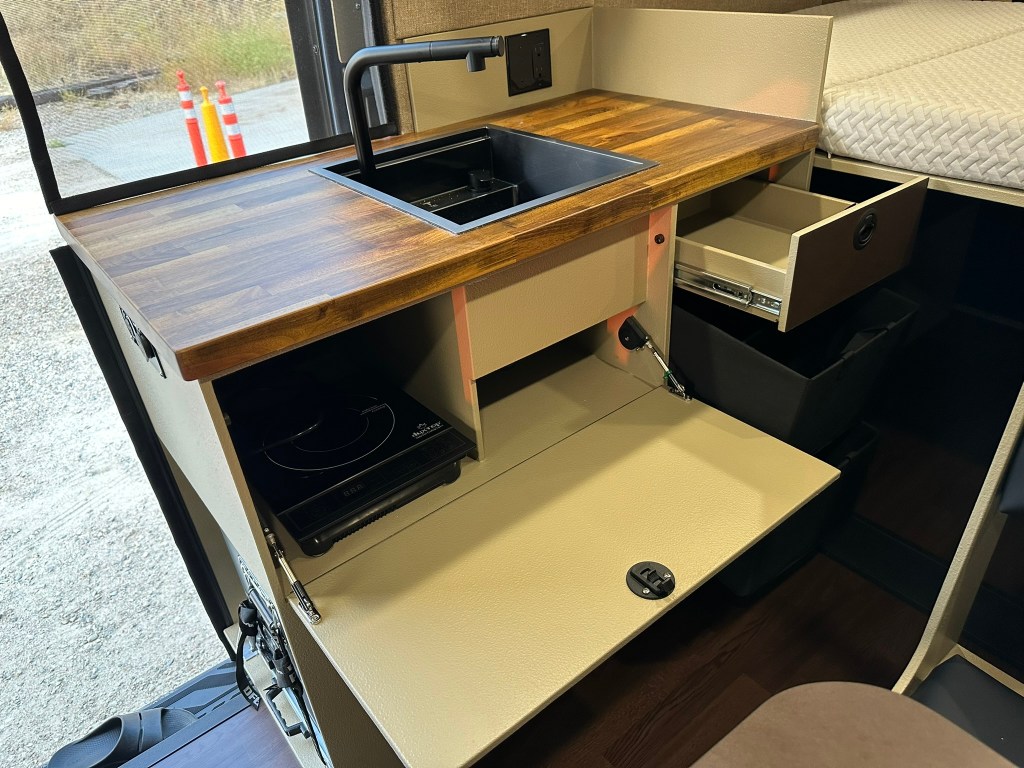

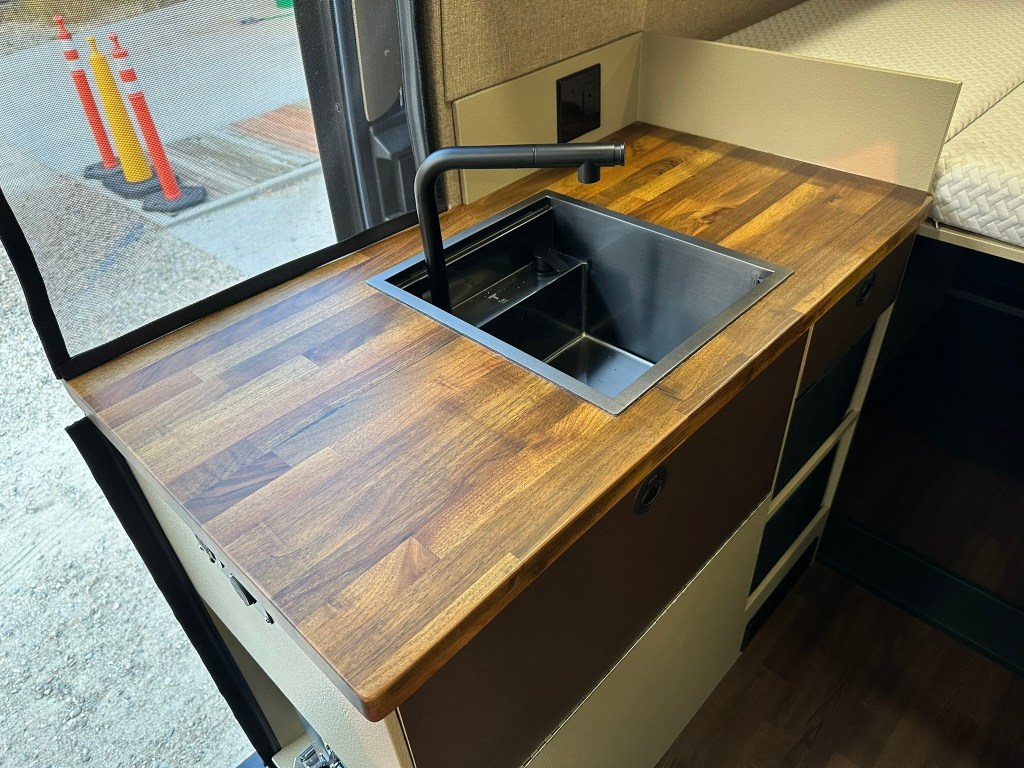

Custom Interior Cabinets- Featuring a tough waterproof epoxy coating. Pinnacle Campers indoor/outdoor kitchen cabinet with exterior drop down laminated table, walnut butcher block top, stainless sink, faucet, and pull out sprayer, setup for IndelB TB46 fridge on a slideout tray. Crate tower with 2 crates and upper drawer. Storage space above the fridge is uniquely accessed from the inside or outside and has a locator for the induction cooktop.
Nightstand crate tower on driver side for 2 crates with drawer, walnut buther block top and Trelino Separating toilet below.

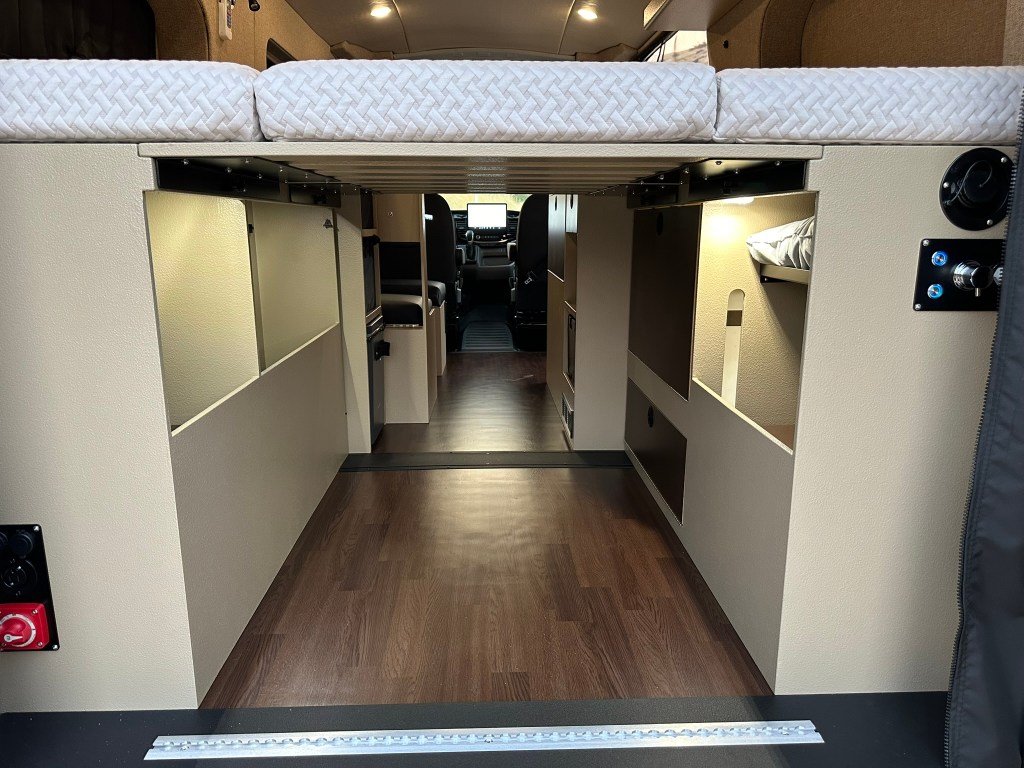

Pinnacle Campers bed kit set up for east/west sleeping, Full 52×75, 4″ memory foam mattress. Wheel well storage cubbies, powerwall with integrated batteries on drivers side, water tank, integrated plumbing cabinet and outdoor shower on passenger side, removable platform slat panels set at 34″ height.
Dinette, 4″ foam vinyl upholstered seat cushions, storage under, soft close lids.

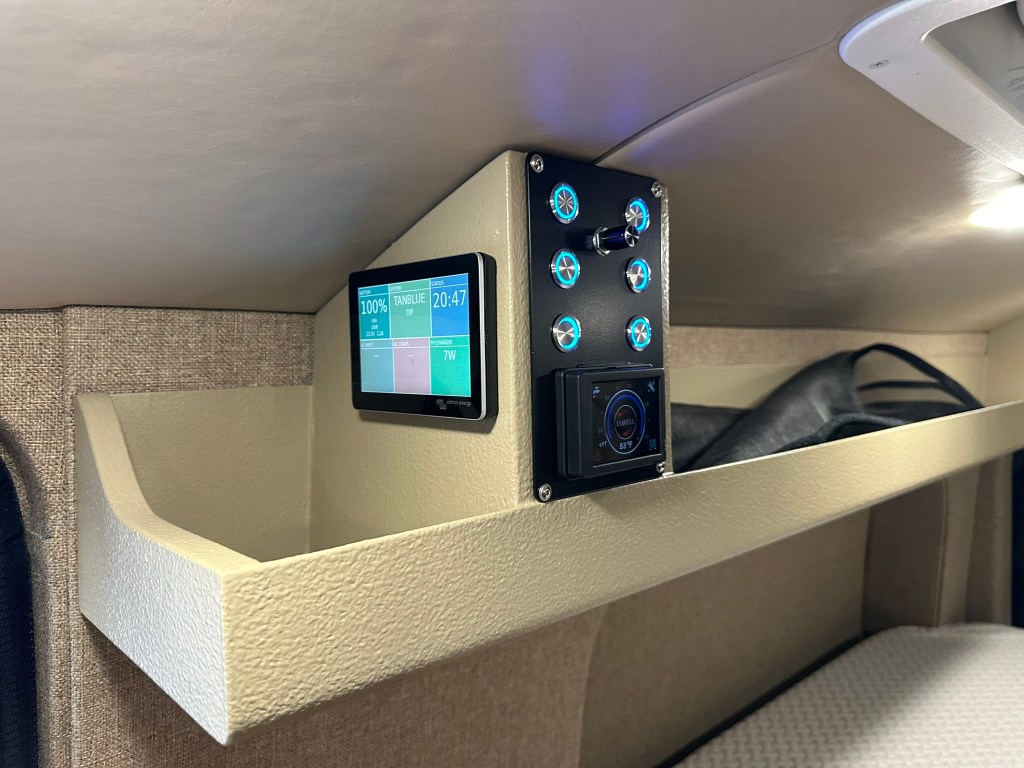

Passenger side open overhead shelf with integrated control panel and Victron GX system monitor

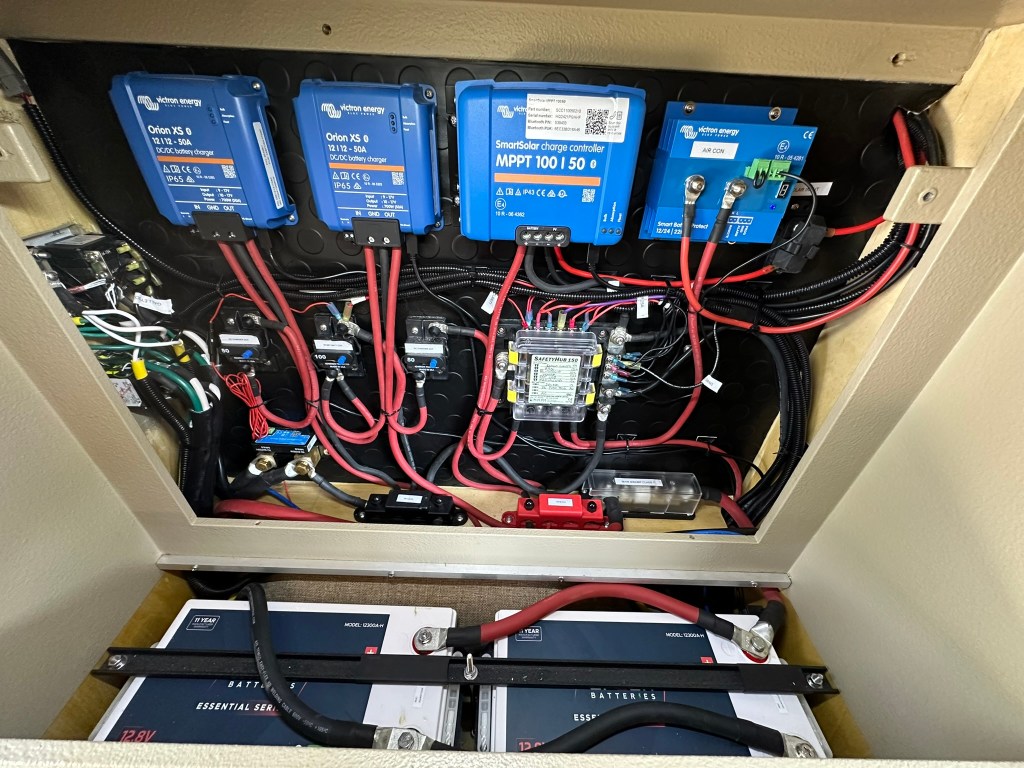

Electrical:
Capacities: 12 volt system with 600ah (7200wh) storage, 500w solar (15 amps max), 100 amp engine charging, 70 amp shore/110v charging
Chargers, battery can be accessed via phone/bluetooth, and remotely through the interwebs
2x 300ah Epoch Lithium battery, heated with bluetooth monitor
Victron Multiplus 2, 12/3000, 110v outlet @ 4 locations
2x Victron Orion XS DCDC Chargers 12/12 50a
Victron Smartsolar MPPT 100/50
Victron Smartshunt
Victron battery protect, Allows use of AC to a preset battery state of charge
Solar panel, 2x 250w/12volt
8 ceiling lights with dimmer, 2 zones, switched at two locations
LED exterior kitchen light, LED porch light
Cargo area lighting and water pump switched at two locations
USB/DC cig plug @ 5 locations
GX touch, Cerbo GX with tank monitoring
VanCentic control panels
Plumbing:
Capacities: 21g fresh inside, 15g grey underneath, On demand hot water
Black Stainless steel sink, faucet, pull out sprayer.
Shurflo pump 3gpm
Fresh tank 21 gallon indoor mounted, rear door fill
Grey tank 15 gallon under mount (DS) heated with manual dump valve
Aqua Crest 5K water filter
VanCentric rear door shower quick connect port, Hot/cold mixer valve
Essentials kit including: Fill hose, fresh water fill adapter, and QC handheld sprayer with shut off.
Appliances/Accessories:
Elwell Timberline Hydronic heat and hot water
IndelB OFF 12 volt AC
IndelB TB46 12v refrigerator
DFGoffroad aluminum fridge slider
Maxxair 6200K roof fan, smoke lid
Lagun table leg (black) with laminated table
Mattress, Memory foam tri fold 4”
XPLR Outfitters magnetic shades for all windows
Cab curtain/rear shower privacy kit
Duxtop 1800 watt induction cooktop
Trelino Separating toilet, large
Bug screen kit slider, Pinnacle Campers

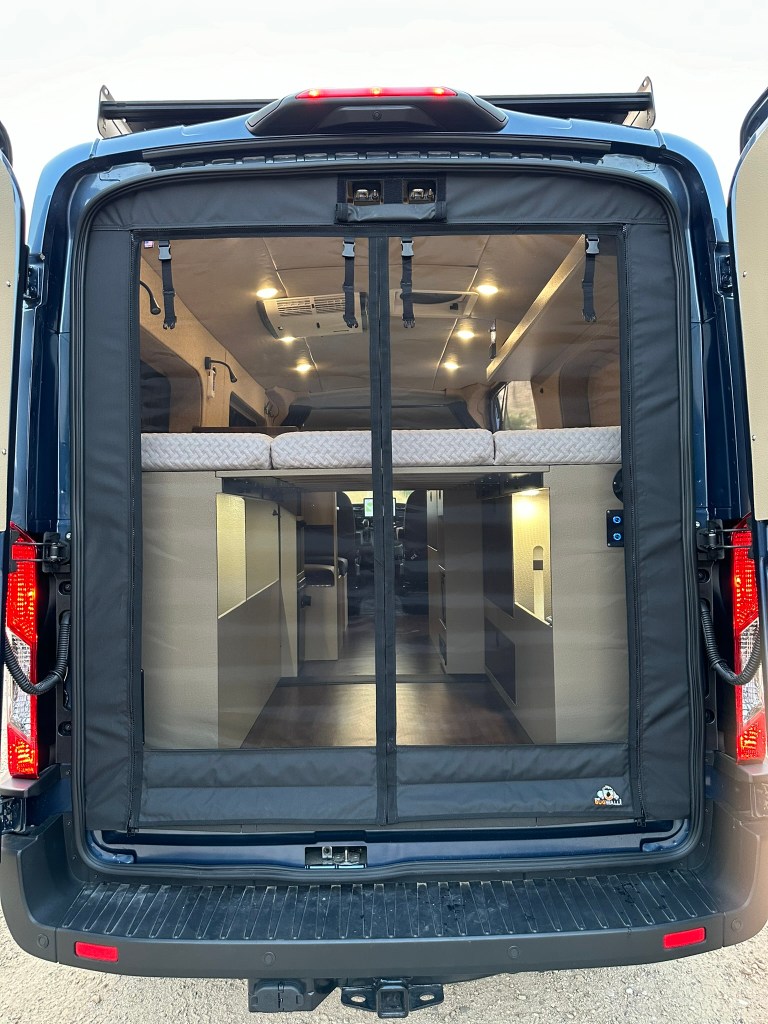

Bug screen kit rear doors, Bugwall
Ford Transit tray style all weather floor mats
Exterior accessories:
Flatline Van Co. Low Pro roof rack

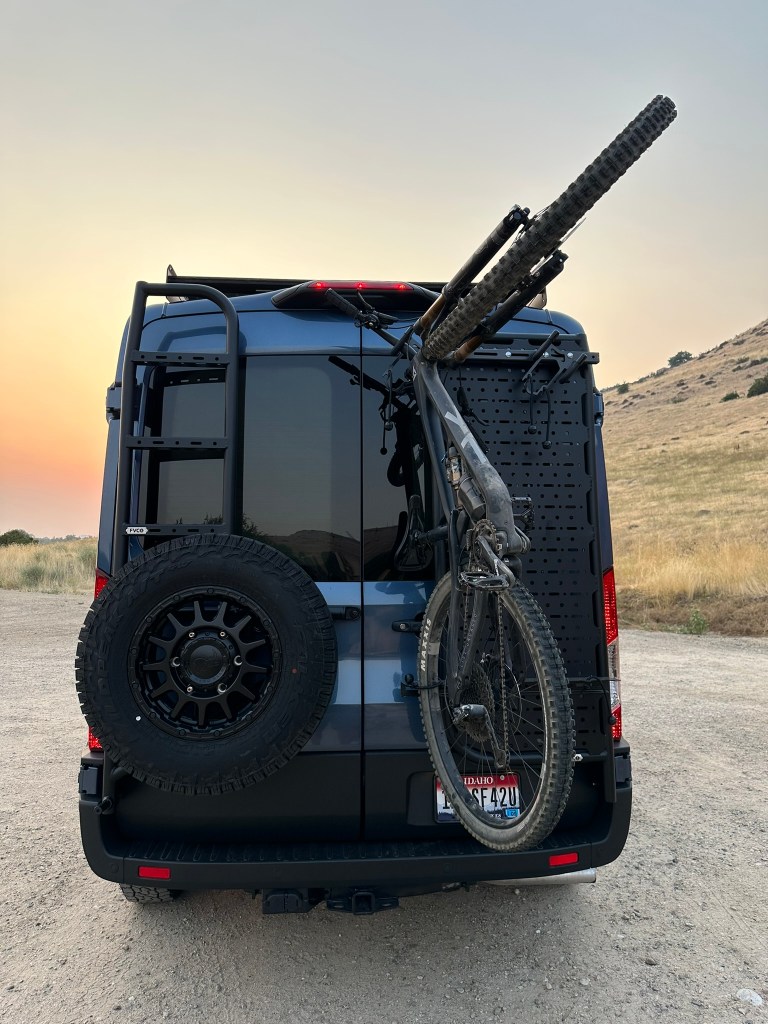

Flatline Van Co. Rear door platform with LOLO rack bike rack
Flatline Van CO. rear door spare tire/ ladder rack
Black Rhino Sequoia 5x with Falken AT4W 245/75/16

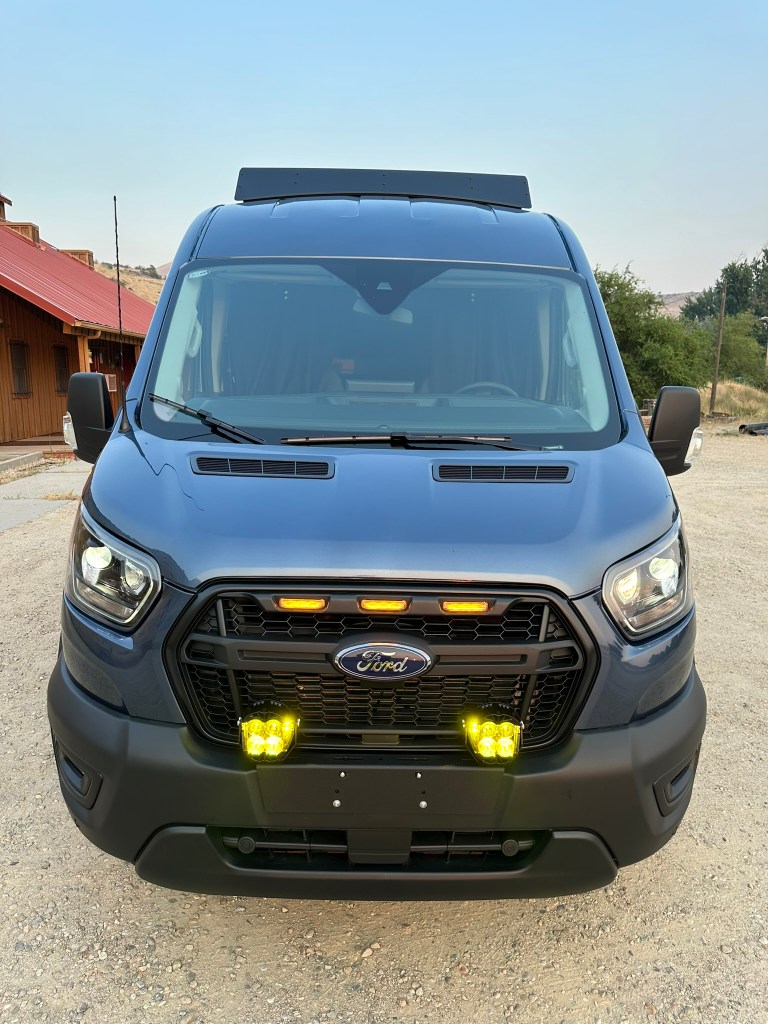

VanCentric front light plate with Baja Design LP4 driving lights
