Ford Transit AWD: MRAVY

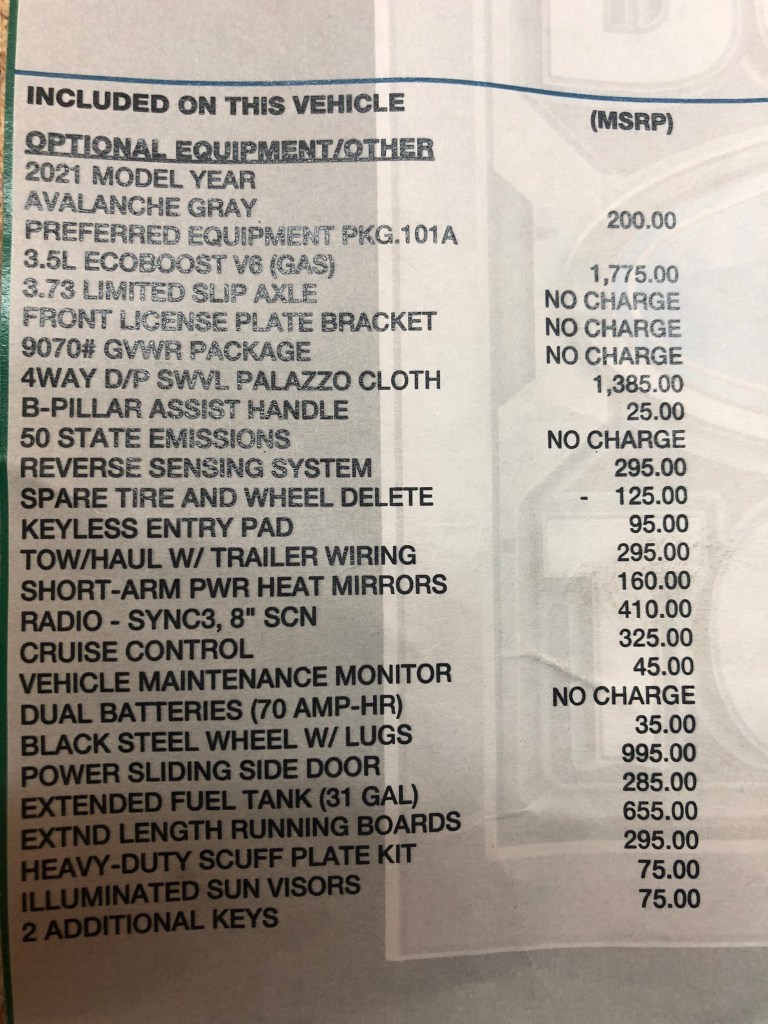

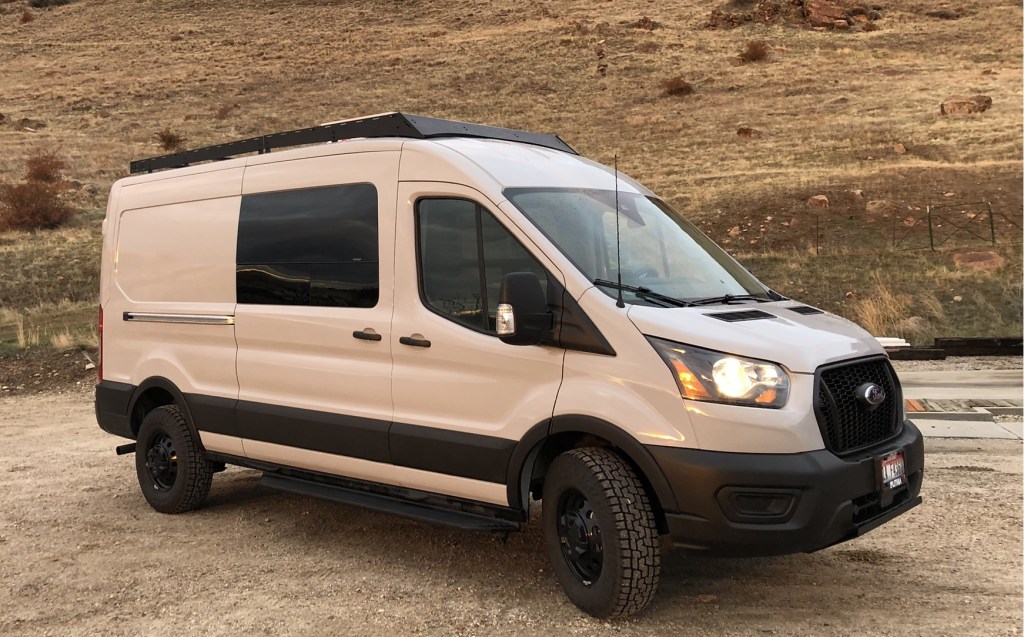

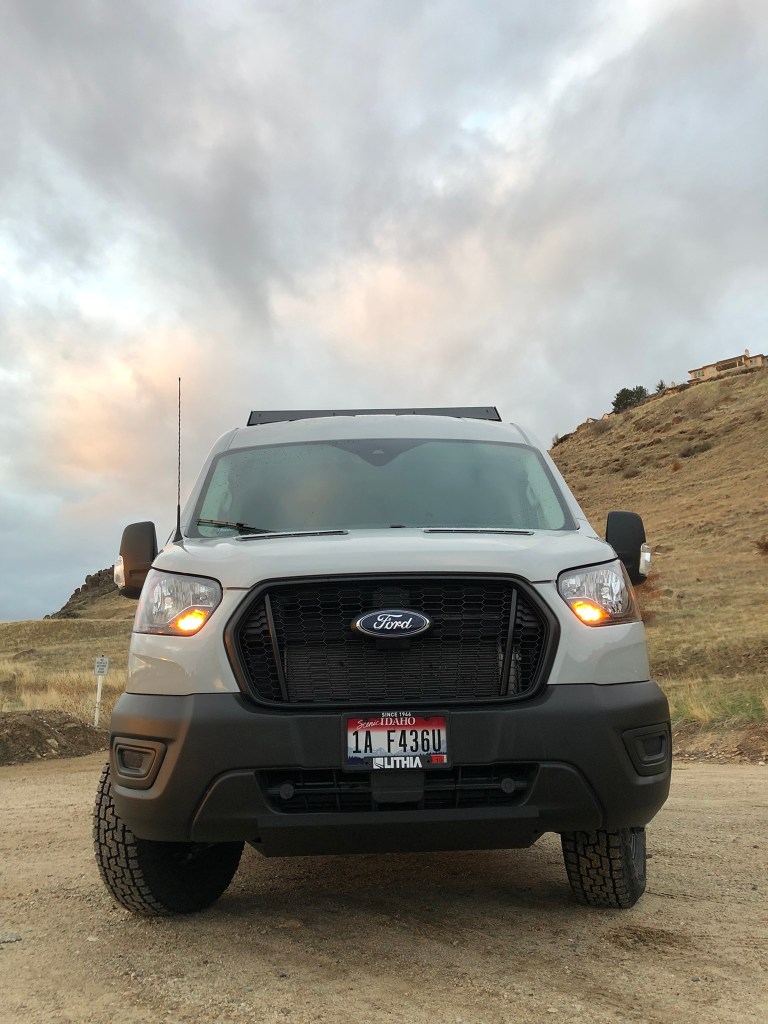

2021 Ford Transit MR 250 148” WB, AWD, Avalanche grey, Ecoboost, swivel seats, dual batteries, power sliding side door, extended range fuel tank, see window sticker for all options.

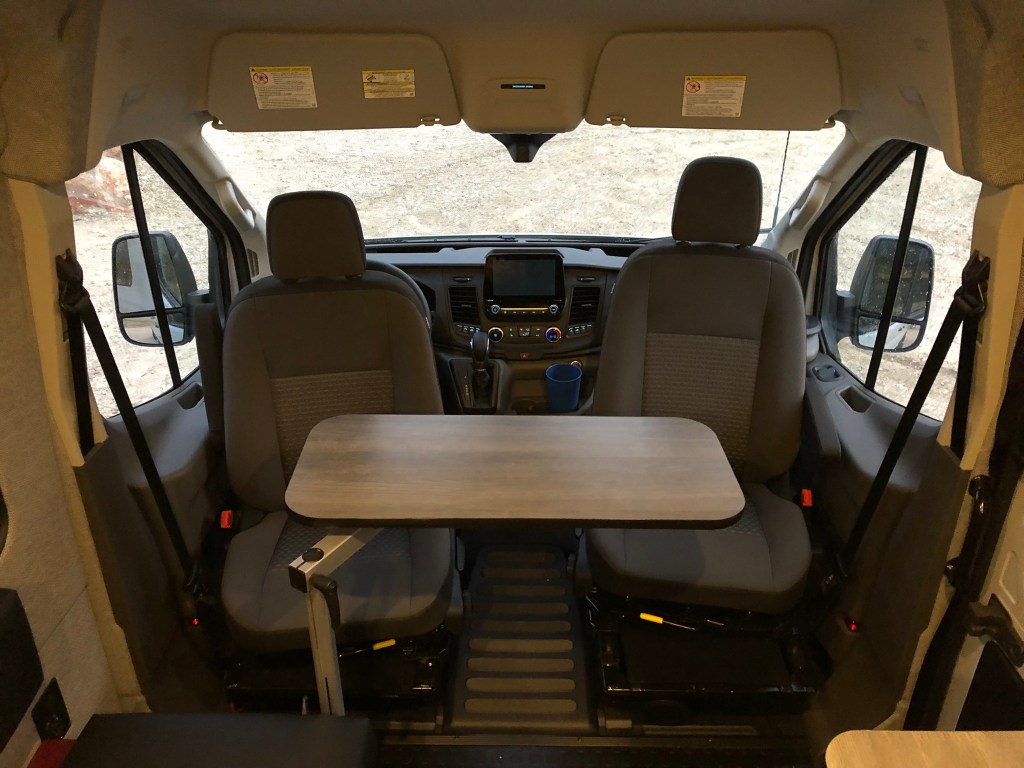

This van is set up with the requisite indoor/outdoor kitchen featuring a pull out drawer fridge, exterior drop down table and “pass through” accessible storage. There is dinette seating for two at the swivel seats or at the driver’s side bench seat utilizing a swiveling table mount and grey wood grain laminated table top. Loft bed with 37” clearance for bikes mounted on the full extension drawer slide. Tons of storage in the cubbies and built in crate/bin cabinet, inside the bench seat, and kitchen under sink cabinet.
Lithium battery package with heating circuit. 30amp vehicle charging, and 200 watts of solar powers the 12volt Dometic CFX3 45L fridge, remote controlled vent fan, front, rear zoned/dimmable lighting, and outlets.

Stay cool or warm with a full Thinsulate insulation package, Espar heater and MaxxAir remote vent fan.
Water storage includes an under floor mounted 16 gallon fresh water tank which supplies the faucet with pullout sprayer, sink, and rear outdoor shower port with hand held shower head.
Exterior goodies include a 2″ lift kit, larger tires, rack, ladder/spare tire rack, and opening windows in the rear doors, and the driver an passenger side forward locations.
See full spec sheet below.

Driver and passenger side CRL awning windows

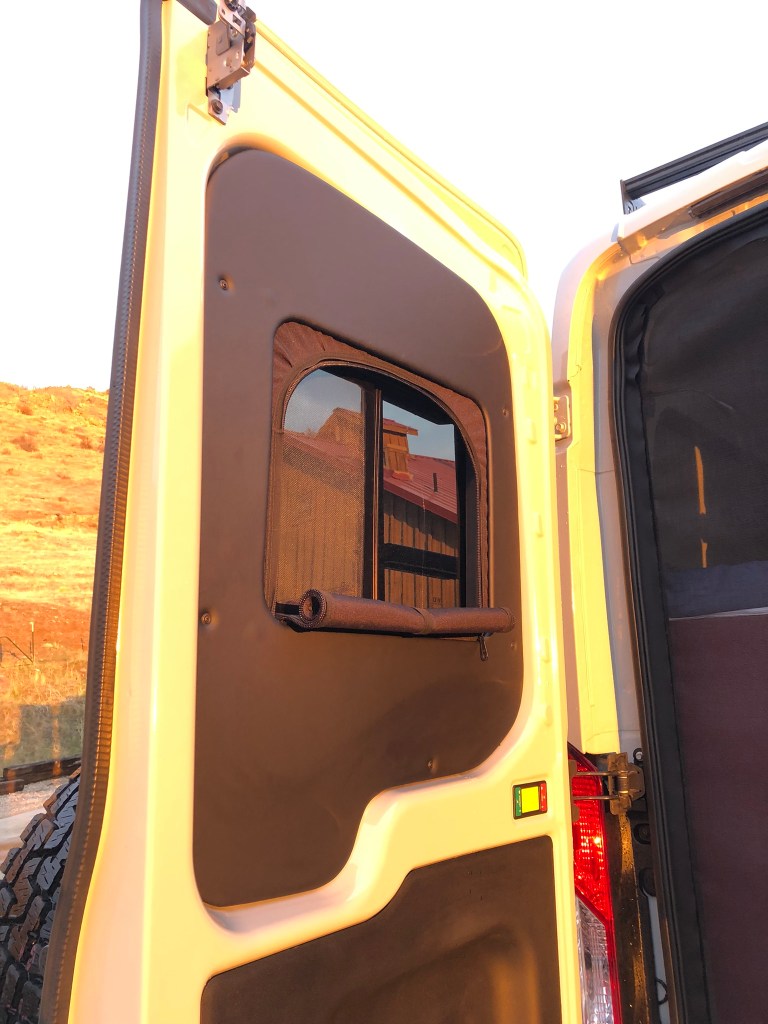

Rear door windows with slider and screen, VWD
Rubber coin floor, black
3M Thinsulate insulation, roof, walls, rear and slider doors
Custom interior headliner wall panels and coverings. Automotive tweed (Tuxedo), grey wood accents, black vinyl
Custom Interior Cabinets- “What a maroon” epoxy, grey wood accents

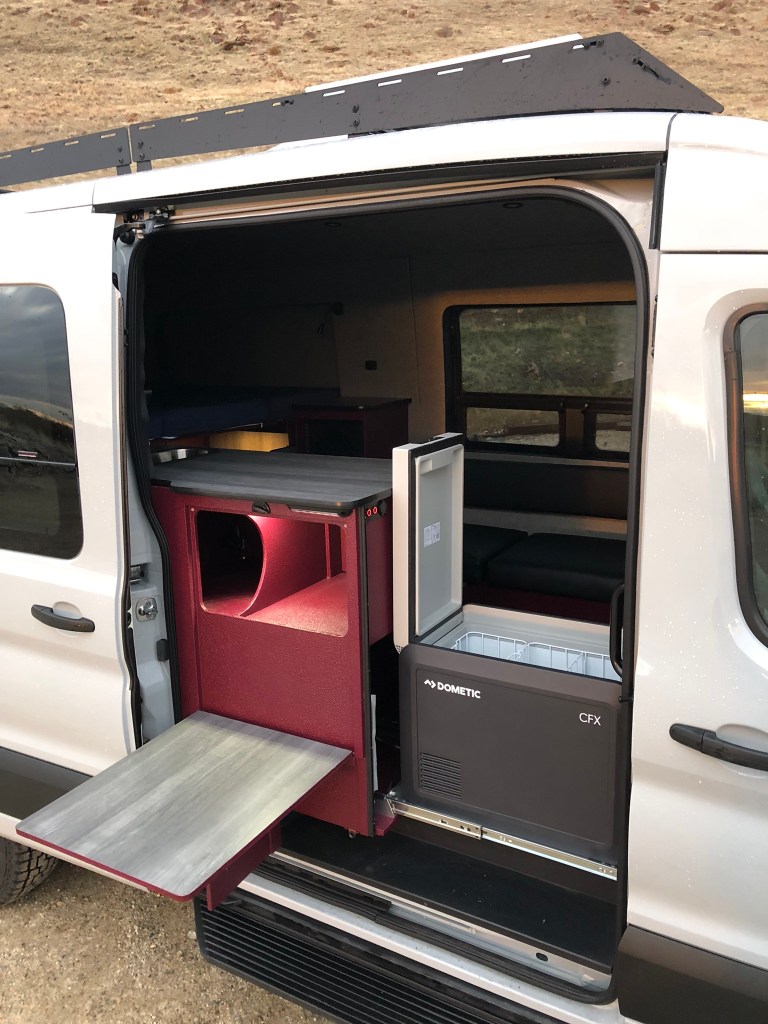

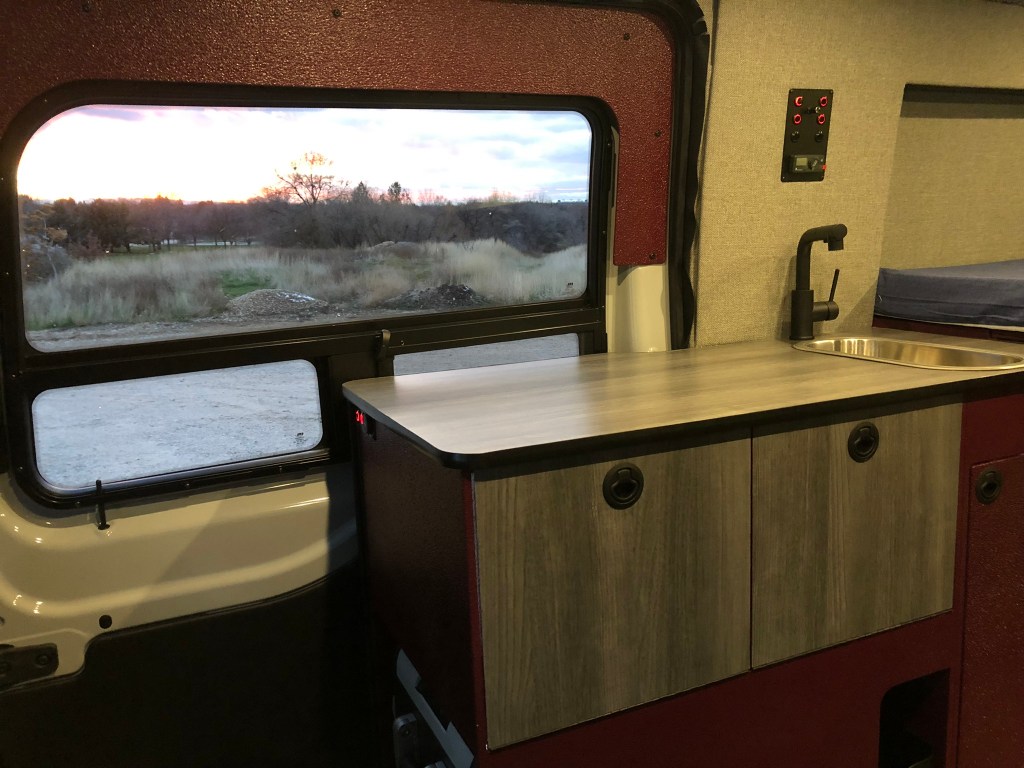

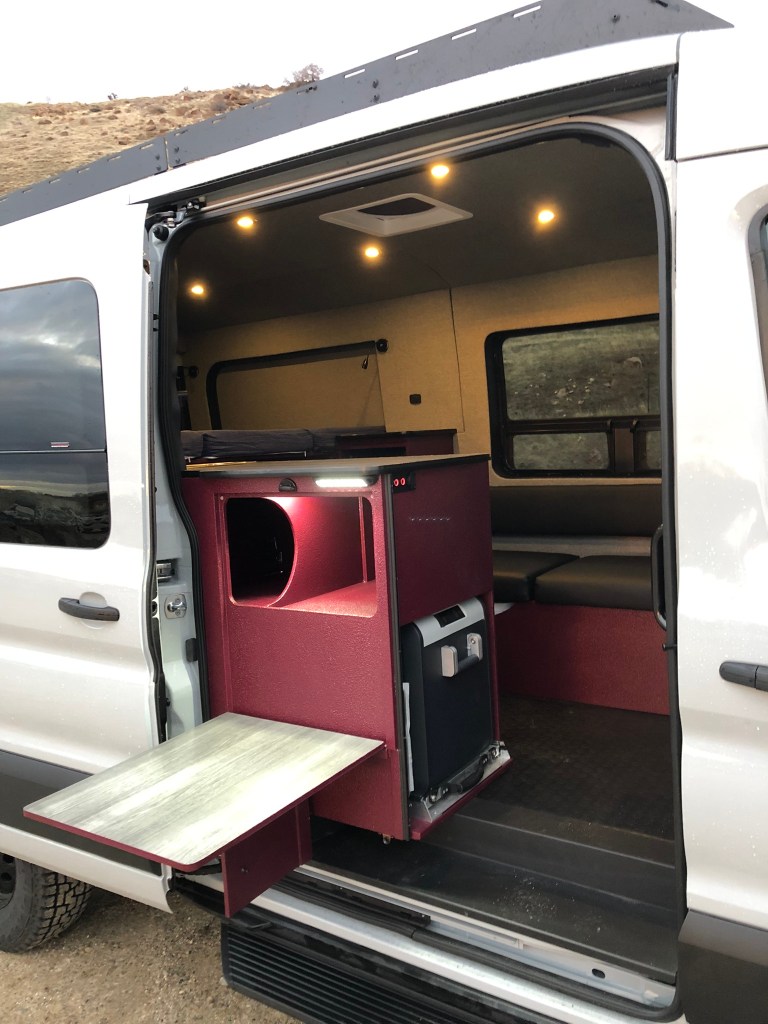

Pinnacle Campers kitchen cabinet with exterior drop down table, two large cabinets with interior/exterior access, drop doors, slam latches, laminated countertop, setup for Dometic CFX3 45L fridge. Pinnacle Campers bed kit set up for E/W sleeping, Full 52×75. Wheel well storage cubbies, powerwall/integrated batteries, removable platform slat panels. Crate cabinet with bedside countertop.

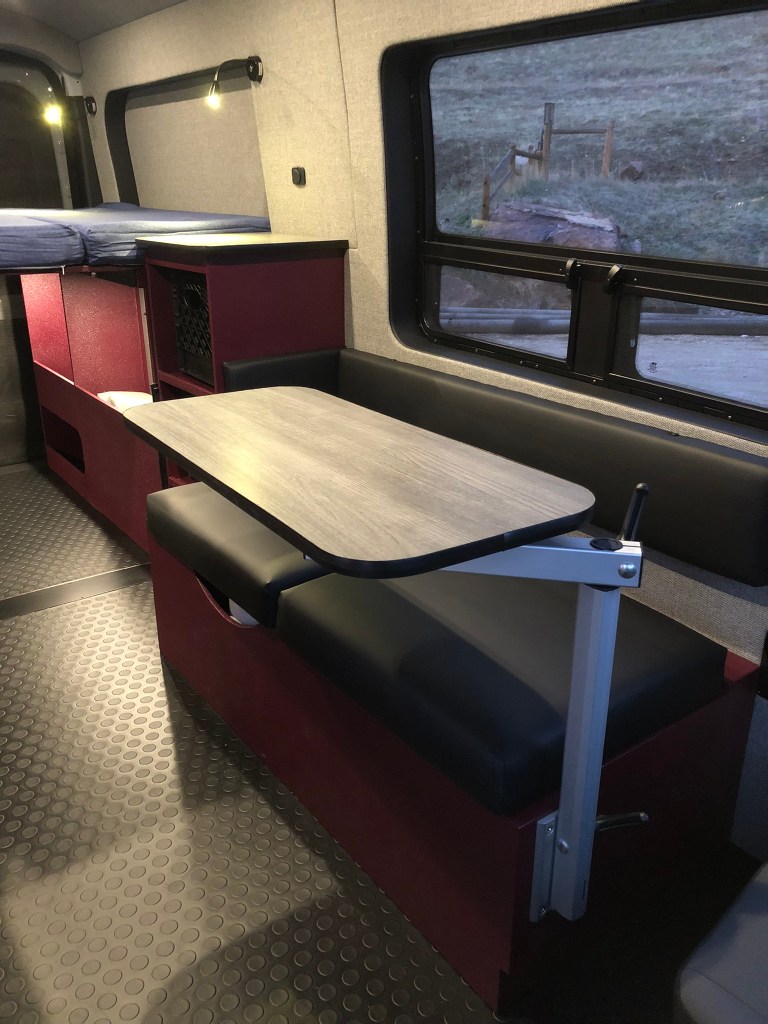

Bench Box 50″, foam/vinyl upholstered backrest and cushion split at 50/50, storage under, porta-potty locator inside
Electrical: Capacities: 200ah storage, 200w solar, 30 amp engine charging, 375 watt AC
2x 100ah AIMS power Lithium batteries with internal BMS, blutooth monitor
VictronVA375 inverter, 1 single outlet front, 1 duplex outlet D/S cubby
Victron Orion DCDC Charger 12/12 30a
Victron Smartsolar MPPT 75/15
Solar panel, 200w/24volt
Blue Sea fuse block with ground, 6 position, 2X DS/PS
Exterior LED porch light on kitchen, 6 ceiling lights with dimmer, 2 zones, switched at two locations
Bed pod cubby lighting, switched at two locations
USB @ 3 locations
2 multimode bedside reading lights
Heating circuit for lithium batteries
Control panel and concealed Powerwall
Water system: Capacities: 16g fresh, 10g grey

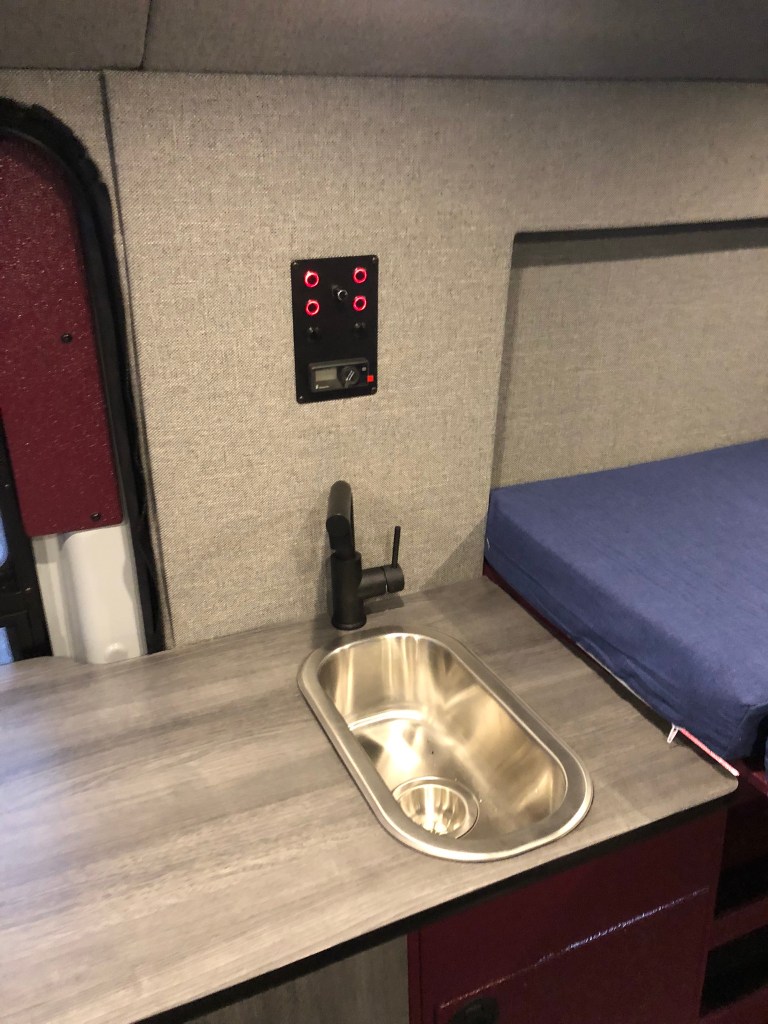

Stainless sink
Faucet, single handle, pull out spray, black
Pump Shurflo 3gpm
Fresh tank 16 gallon under mount (PS) with aluminum skid plate, slider door fill, vented @ fill
Grey tank 10 gallon under mount (DS) with aluminum skid plate, manual dump valve, vent/over flow
Woder 10K water filter (assumes clean water in tank)
Rear shower quick connect port and handheld sprayer with shut off

Lagun table leg with laminated table

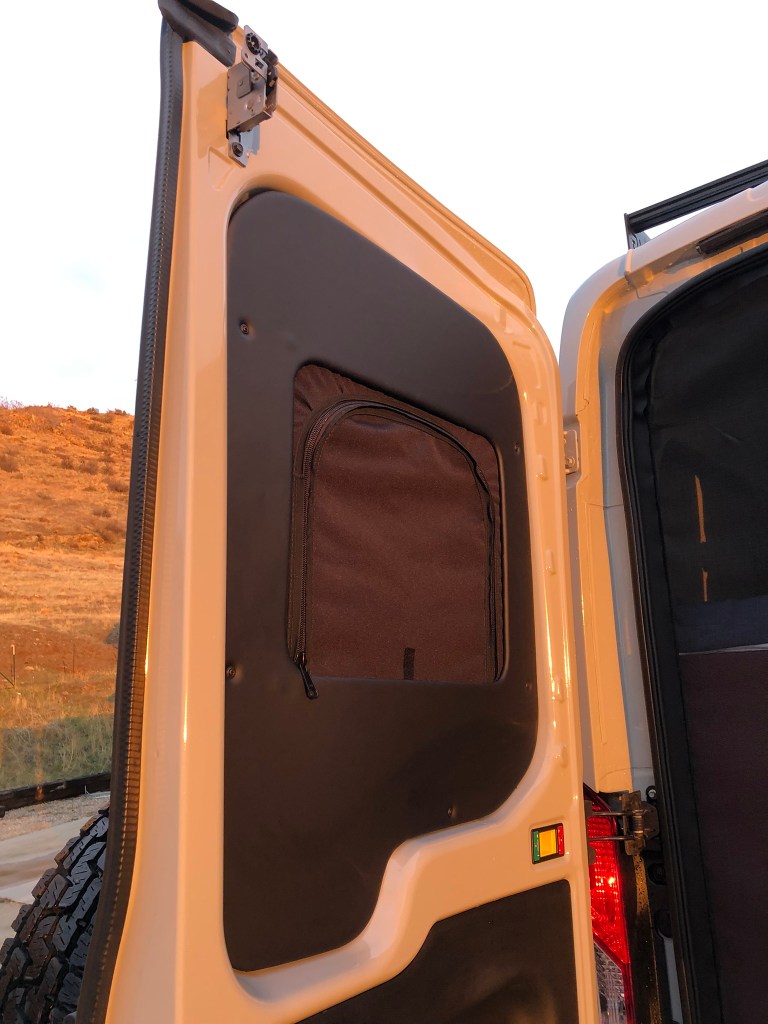

Nightfall Overland shades for windshield and cab doors, driver and passenger side forward window. Custom zippered shades for rear door windows.
Mattress: Memory foam tri fold 4”
Dometic CFX3 45L 12v refrigerator on DFG Offroad pull out side.
Espar M2- B4L Gas fired heater, with easy start controller
Maxxair 6200K roof fan, remote, white lid
Kovea propane cooktop. Stows beside fridge.
Camco portable toilet 2.6g

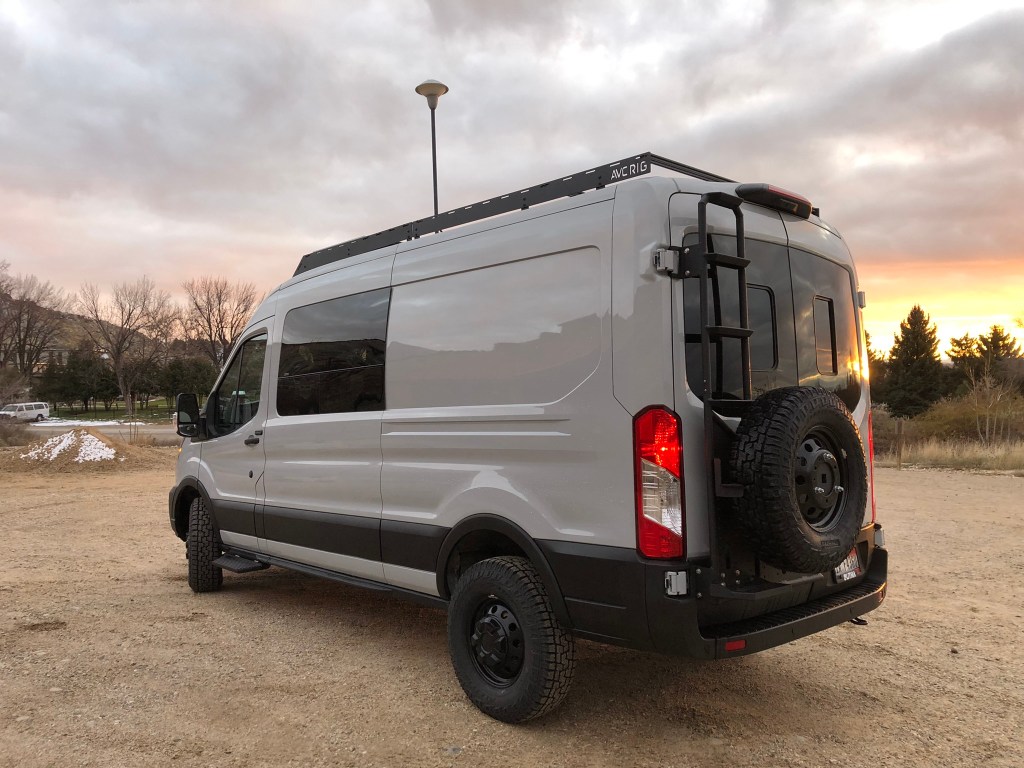

AVC RIG roof rack

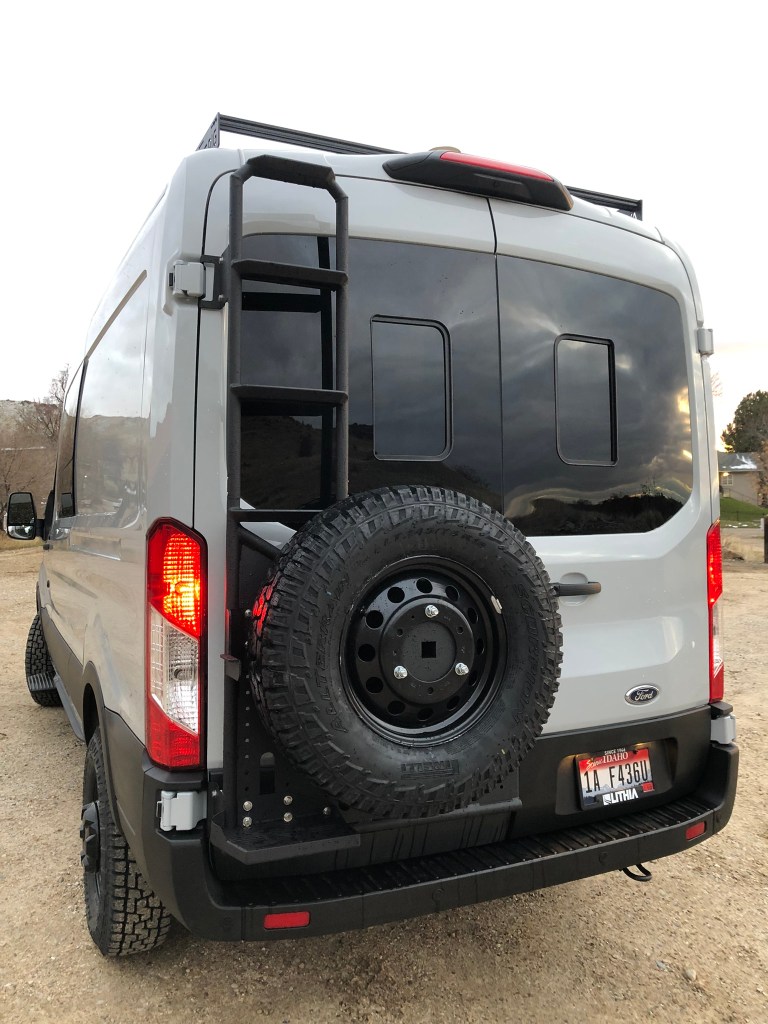

Limitless van ladder/spare tire rack
Van Compass Topo 2.0 Lift, blue springs, rear shock tower extension brackets, Installed with Alignment
Pirelli Scorpion AT Plus 245/75/16 x5, with 5x black wheels, caps
Bug screen kit, Pinnacle Campers, slider

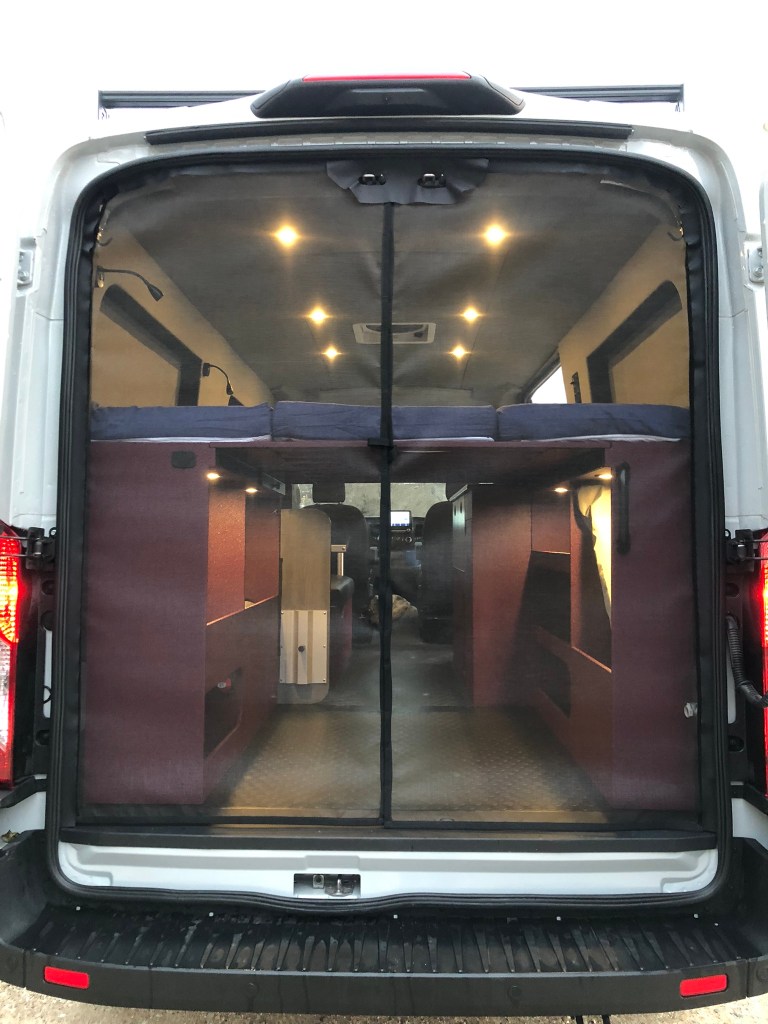

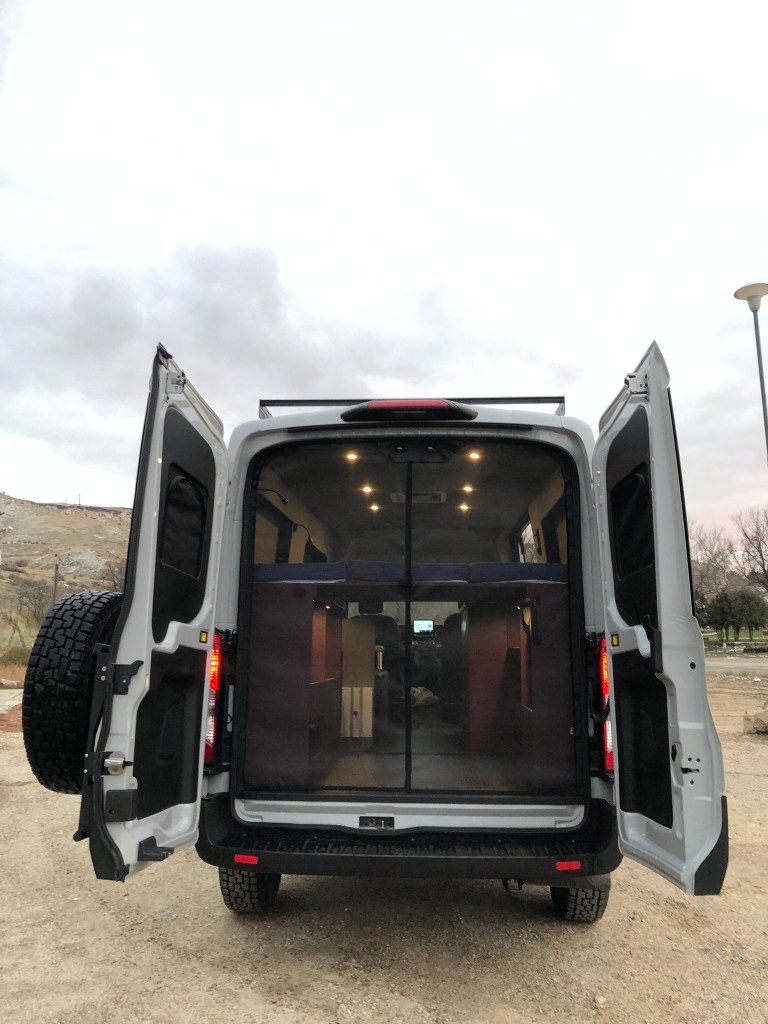

Bug screen kit, Pinnacle Campers rear garage
