Ford Transit AWD Osprey build

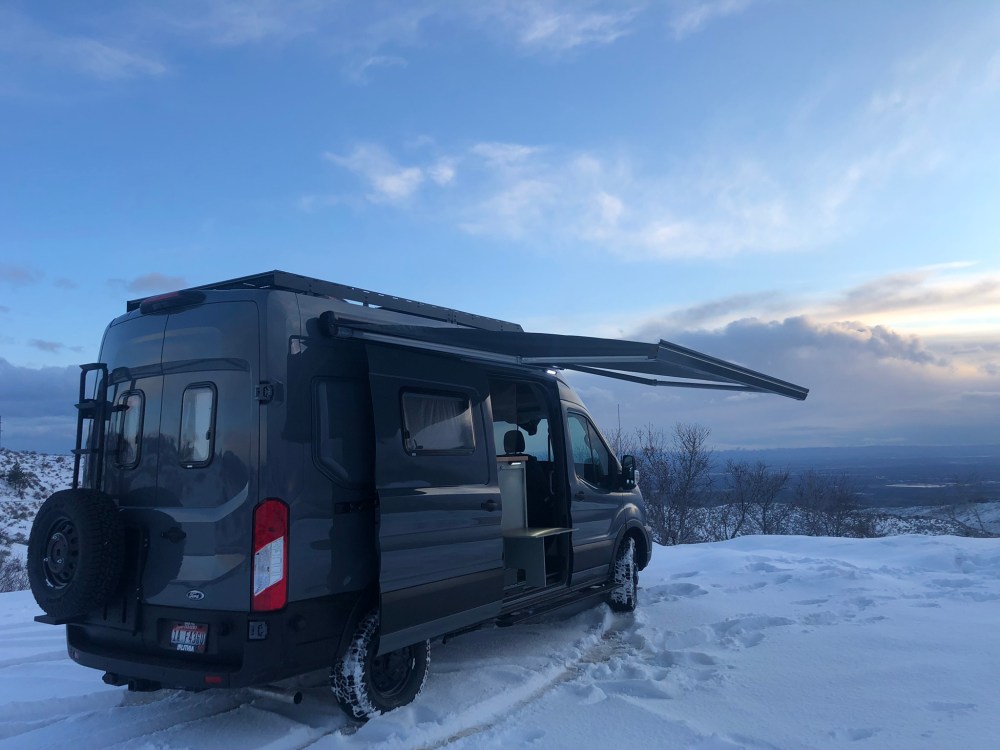

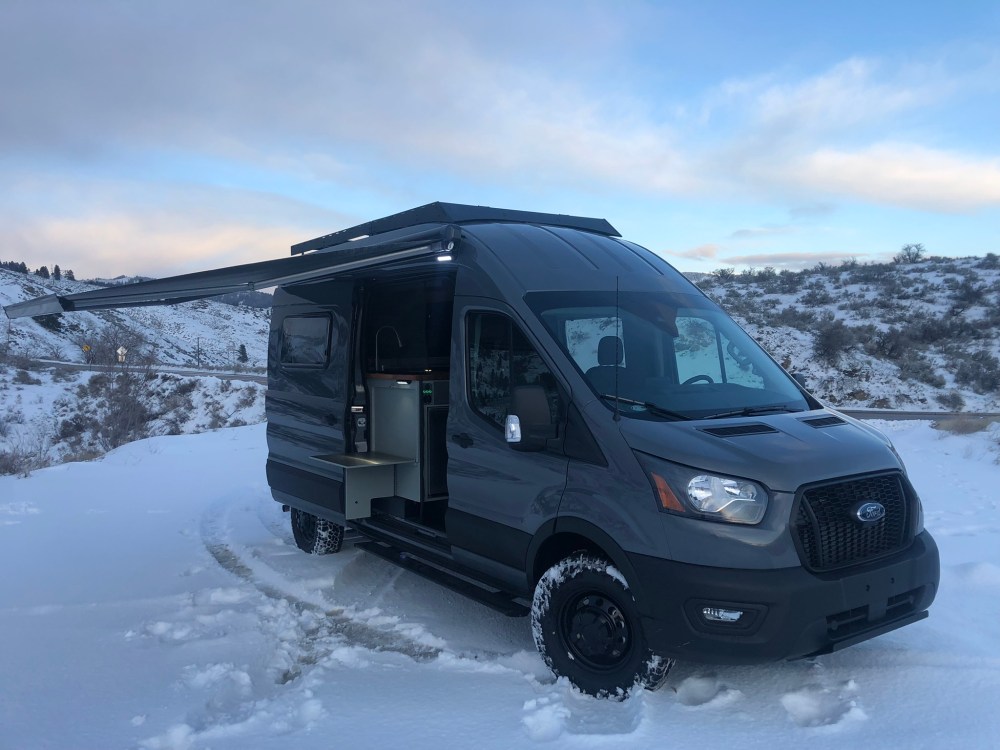

2021 Ford Transit HR AWD Osprey build


This is our most advanced build to date. This 4 season camper is built for adventure. Featuring an indoor/outdoor kitchen, exterior and interior showers, abundant hot water with the Elwell Timberline heat and hot water system, Arctic Tern insulated windows, and Havelock wool insulation it is guaranteed to be an enabler of all season adventures.

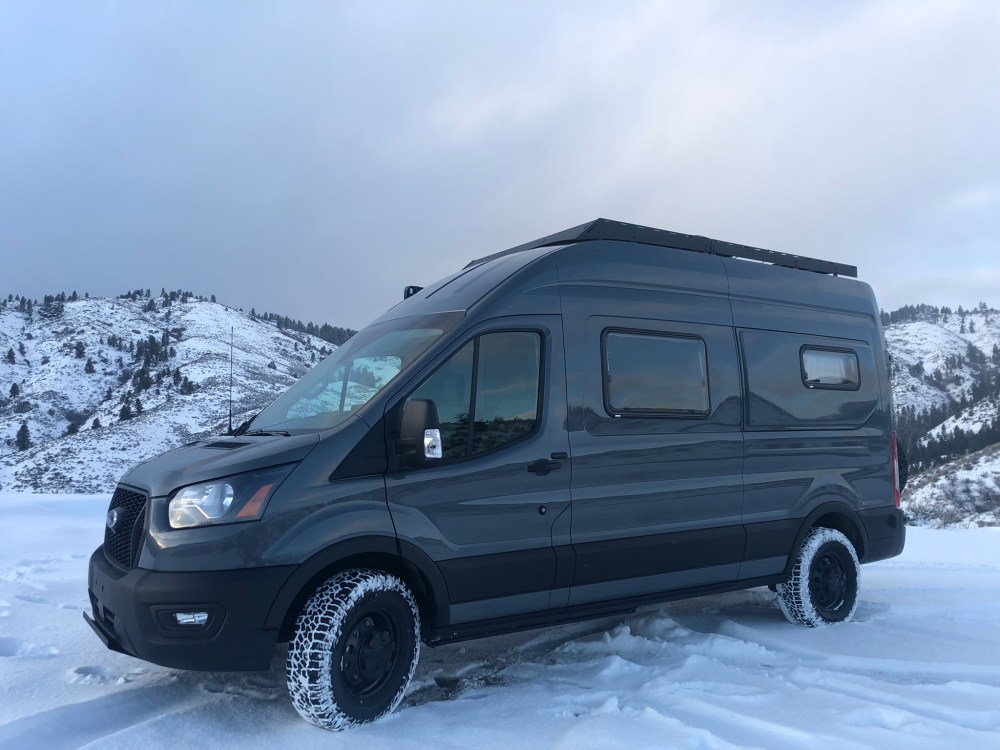

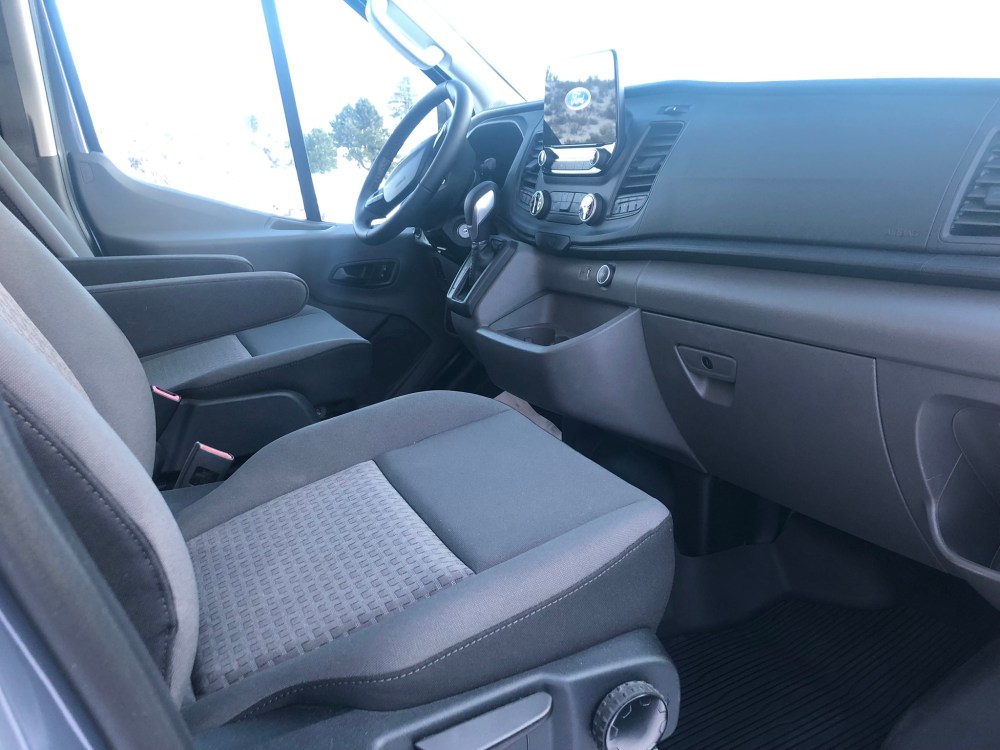

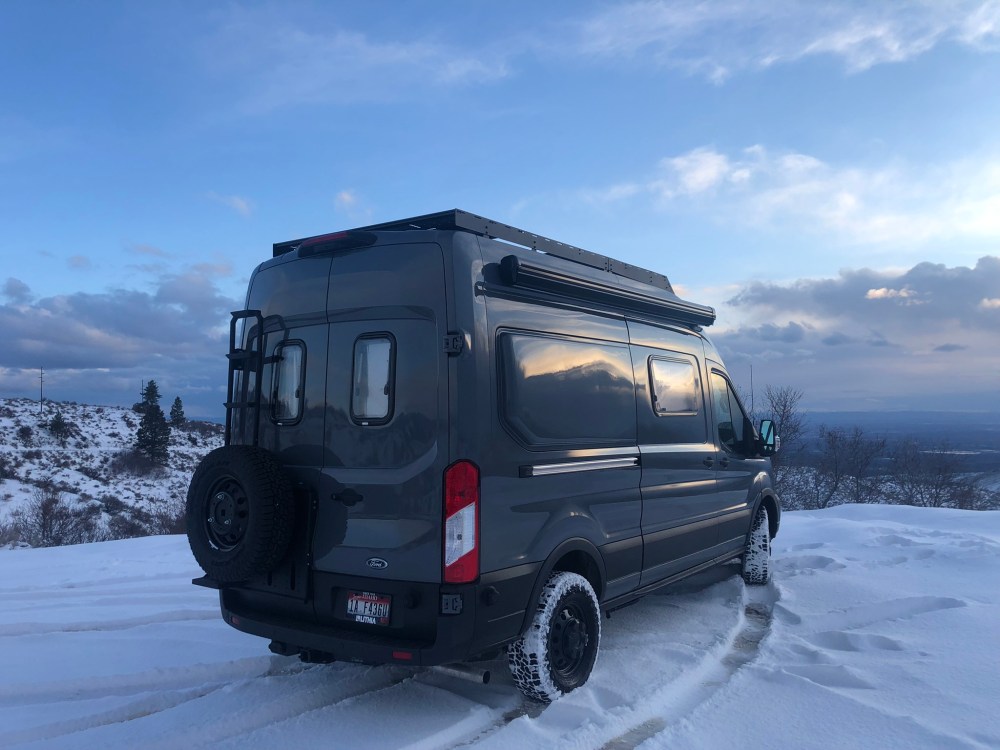

2021 Ford Transit 250 AWD, 148″WB regular length, Abyss gray, ecoboost v6, swivel seats, power sliding side door, tow hitch, extended range tank, see window sticker for all options.


Upfit:

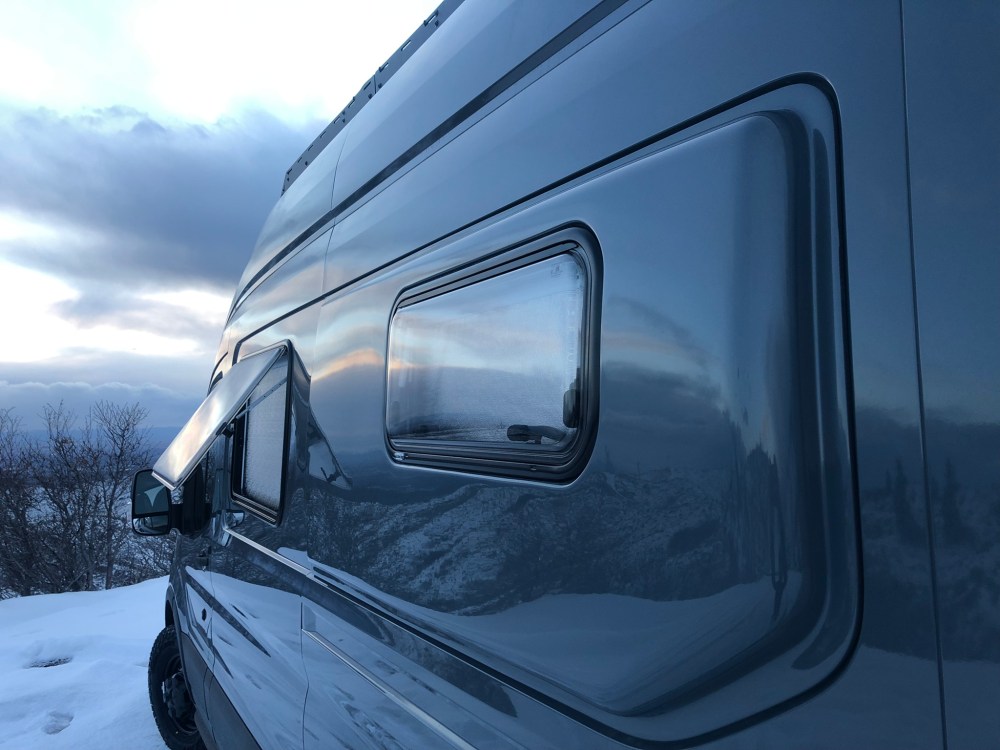

Arctic Tern window package, dual pane acrylic awning windows with integral blind/screen. Driver side forward, and flare, slider door and rear doors
Floor Coverings, Lonwood Madera in Oregano. Floor raised with Havelock wool and sound deadening under
Insulation, Havelock Wool, roof, walls, floor, rear and slider doors
Custom interior headliner wall panels and coverings. Automotive tweed, Charcoal. Vinyl Greystone
Custom Interior Cabinets- Featuring a tough waterproof epoxy coating in Ford Cactus gray

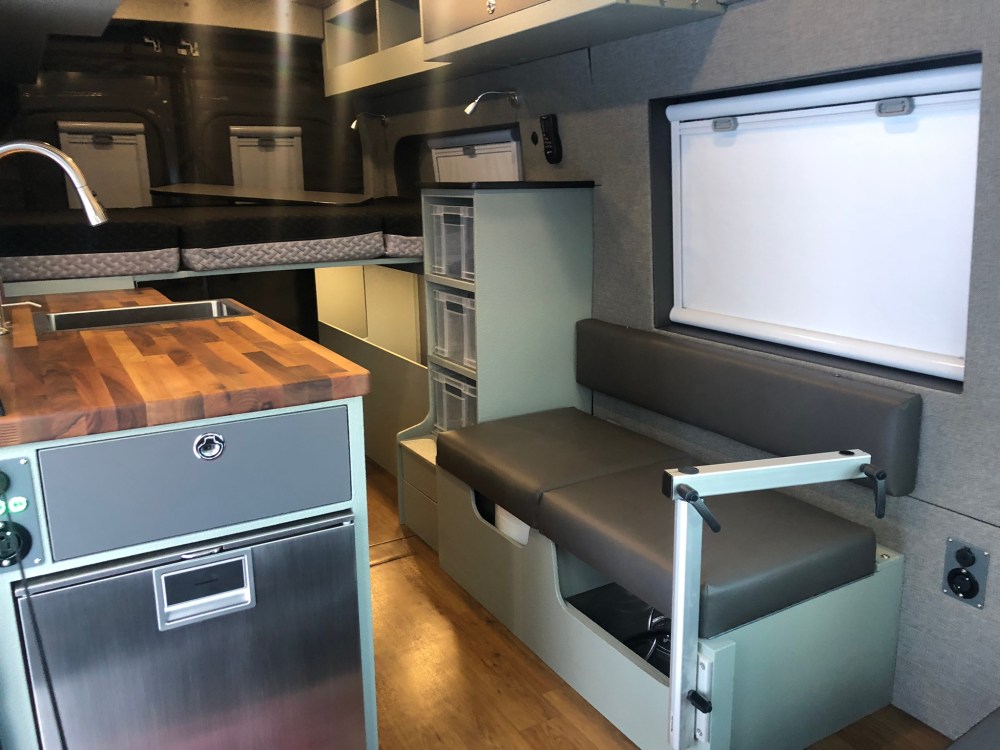

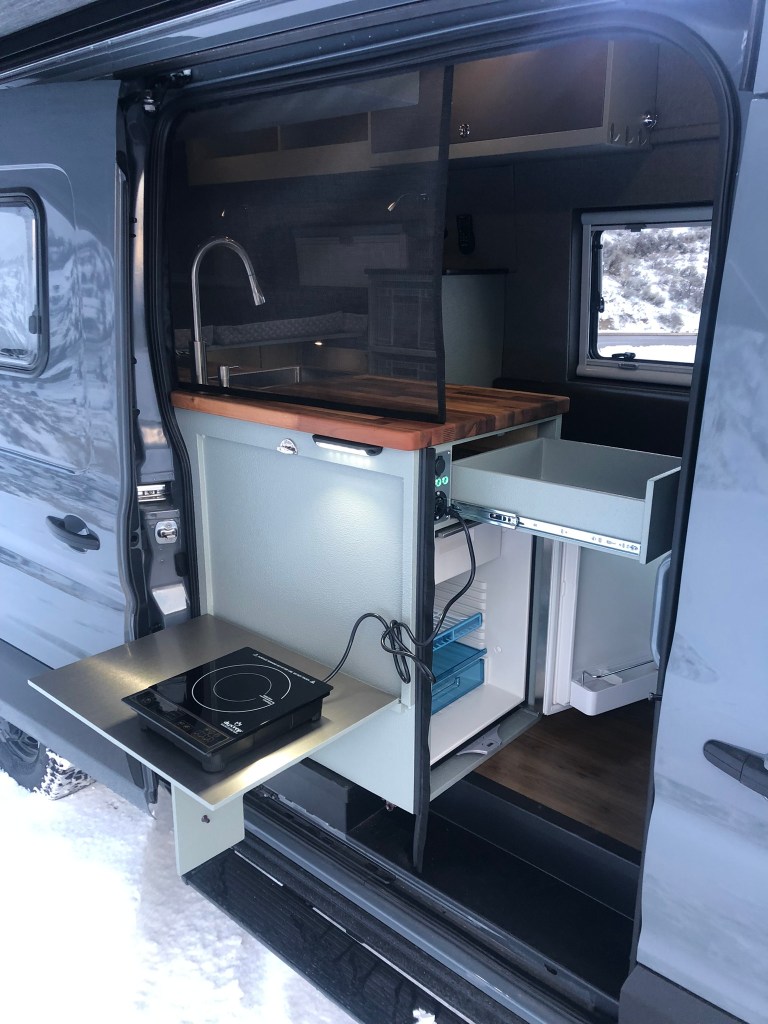

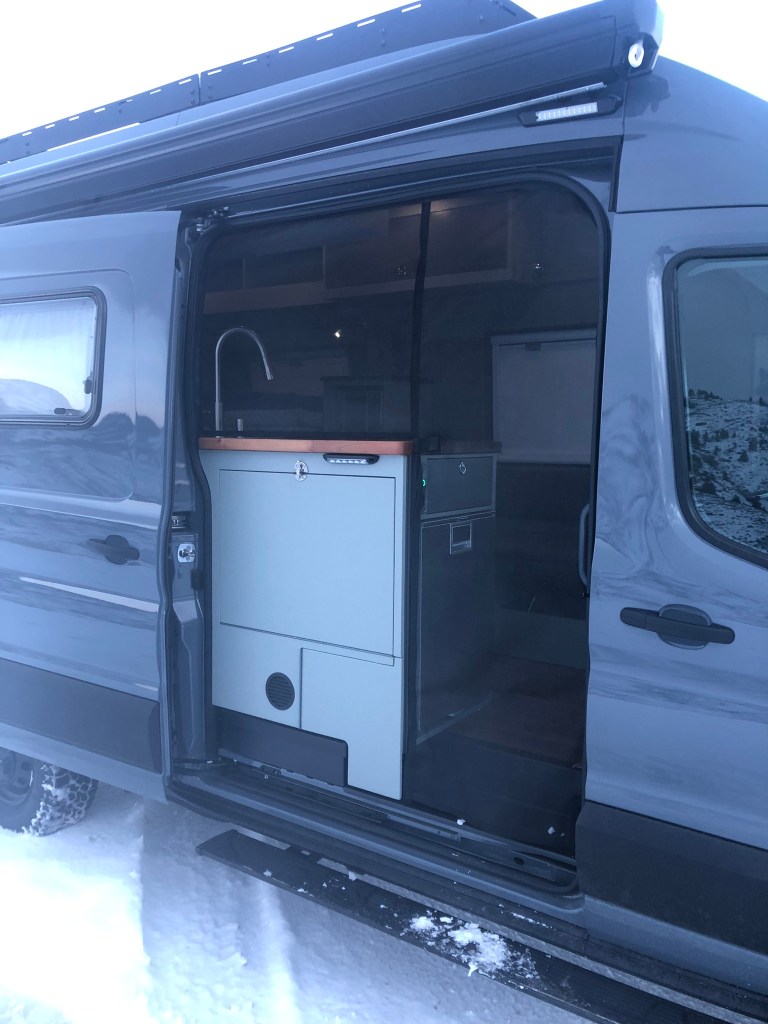

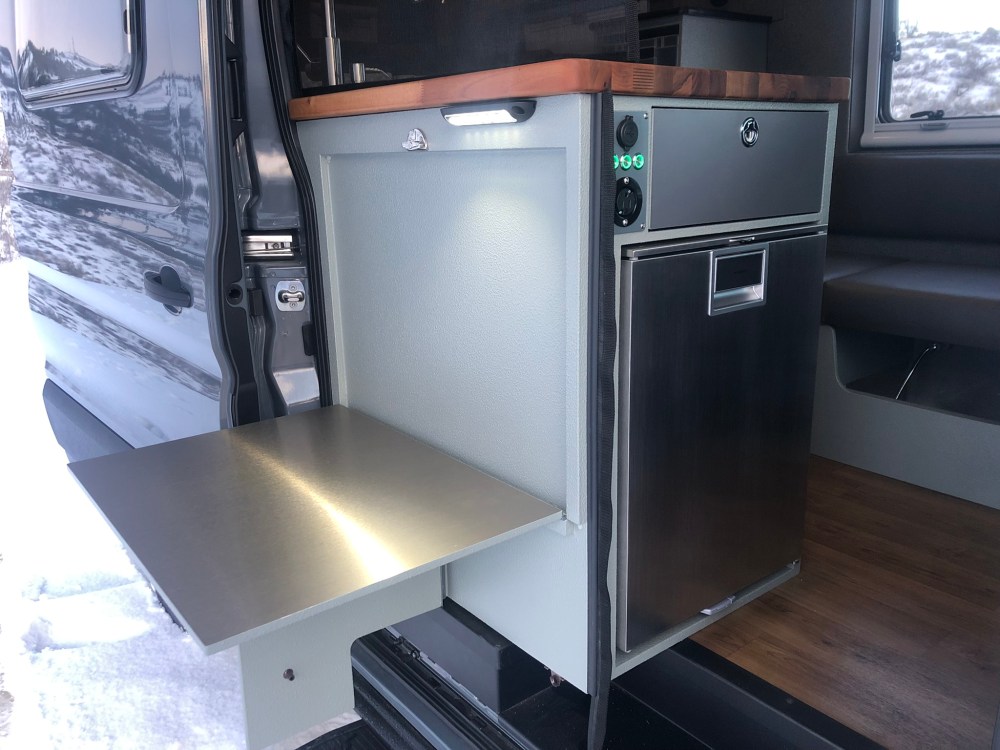

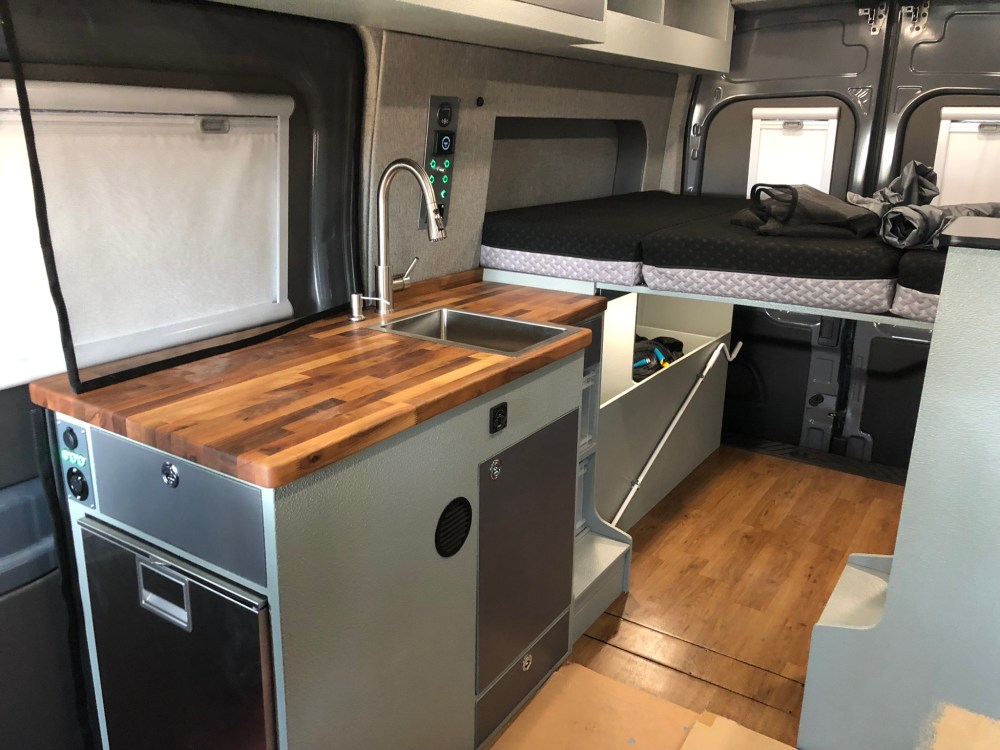

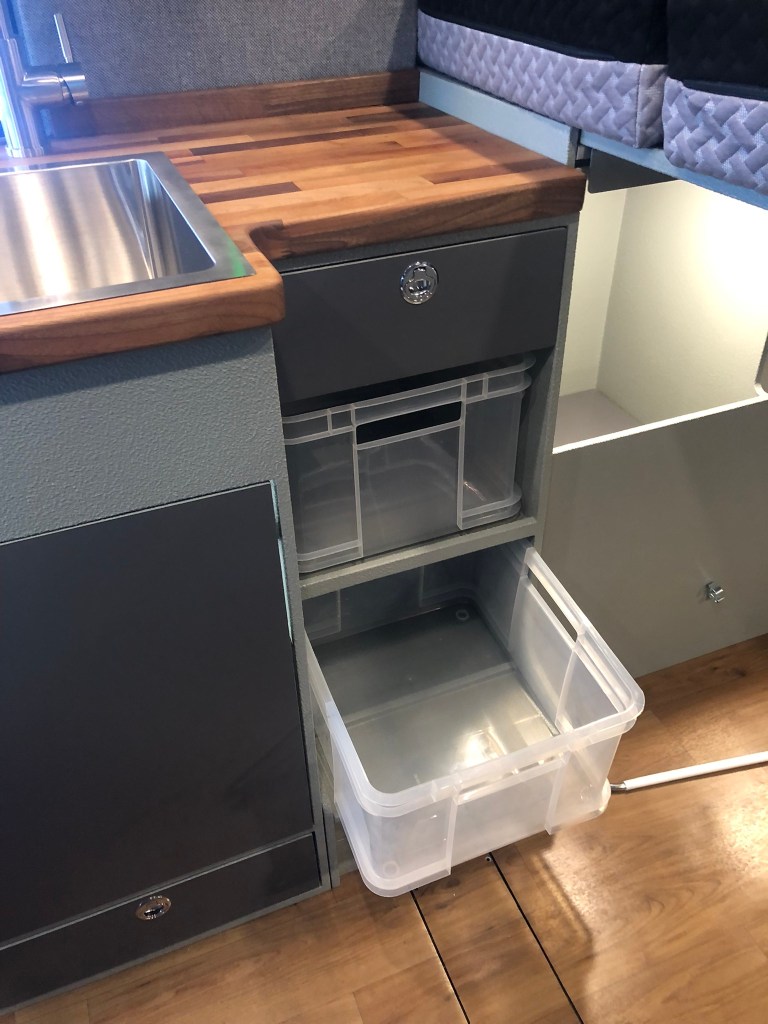

Pinnacle Campers indoor/outdoor kitchen cabinet with exterior drop down stainless steel table, 2 full extension self-close drawers, slam latches, vents, walnut butcher block countertop, stainless sink/faucet, and sprayer, setup for Dometic CRX80 stainless fridge. Crate tower with 2 crates and drawer.

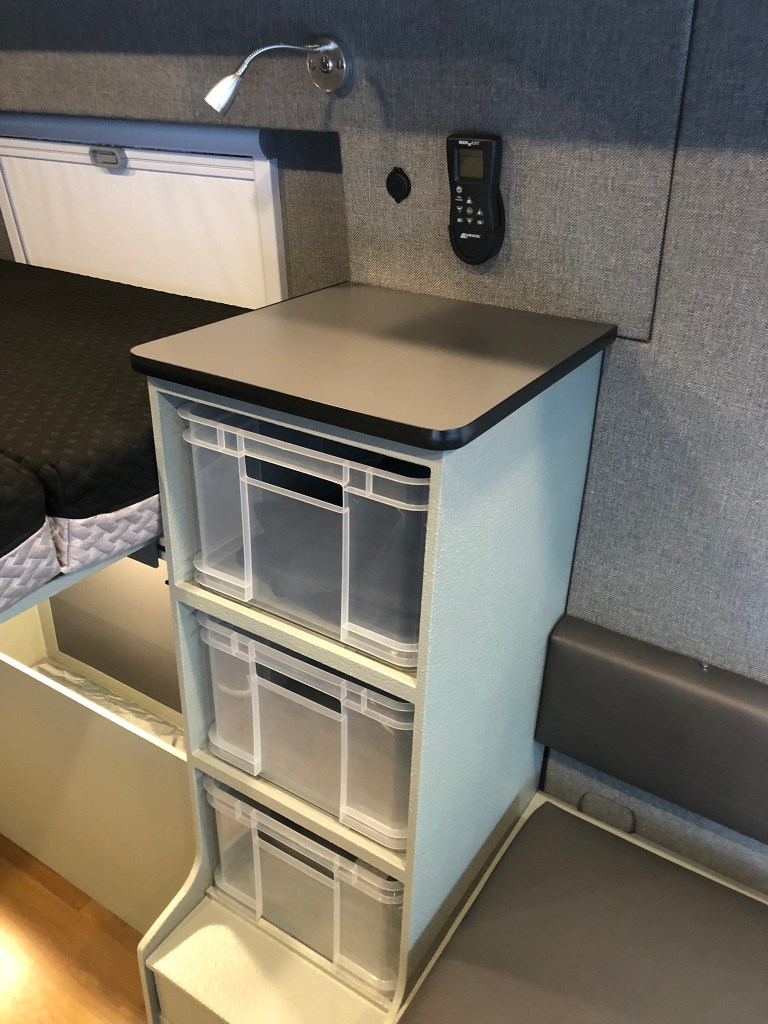

Crate tower for 3 crates with grey laminate top.

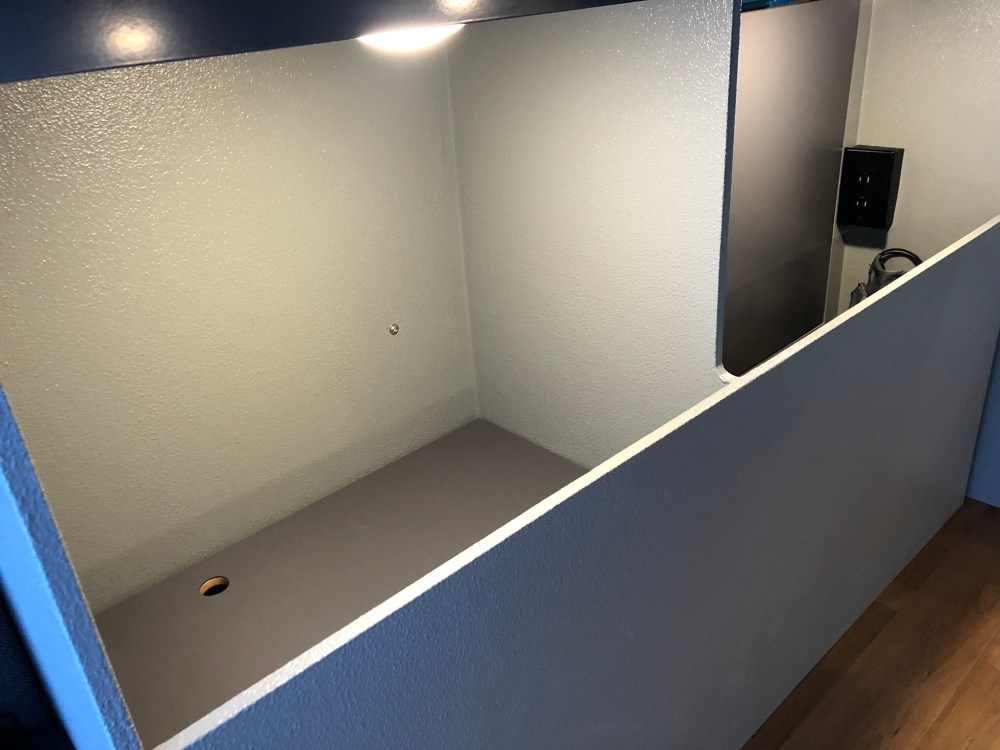

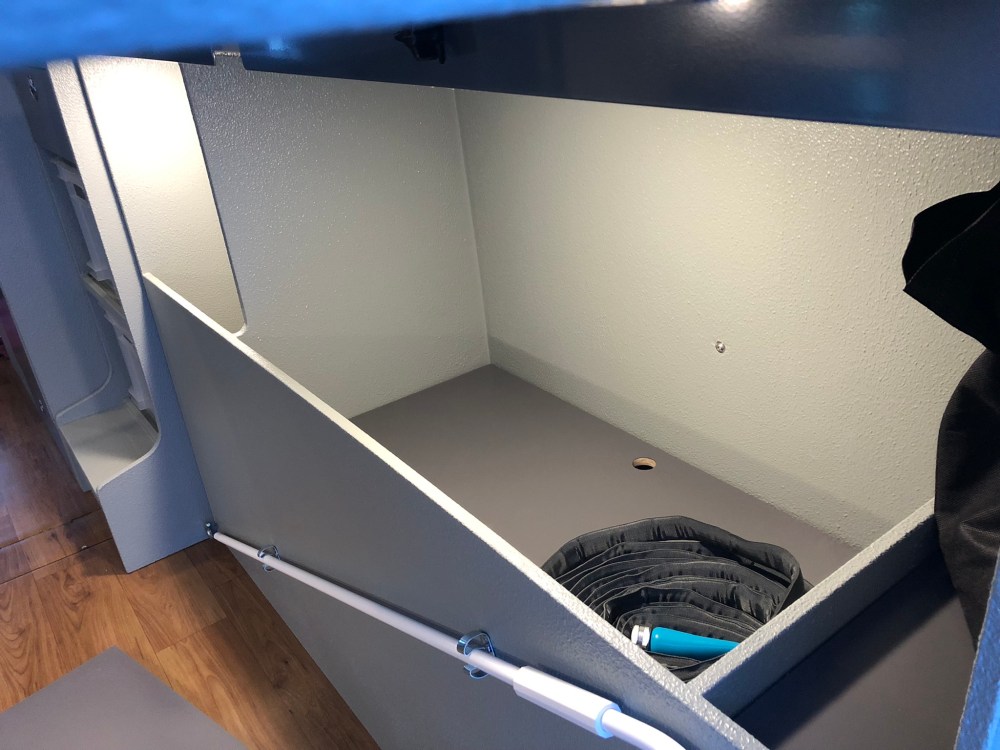

Pinnacle Campers bed kit set up for east/west sleeping, Full 52×78, 6″ memory foam mattress. Wheel well storage cubbies, powerwall/integrated batteries, removable platform slat panels set at 37″ height

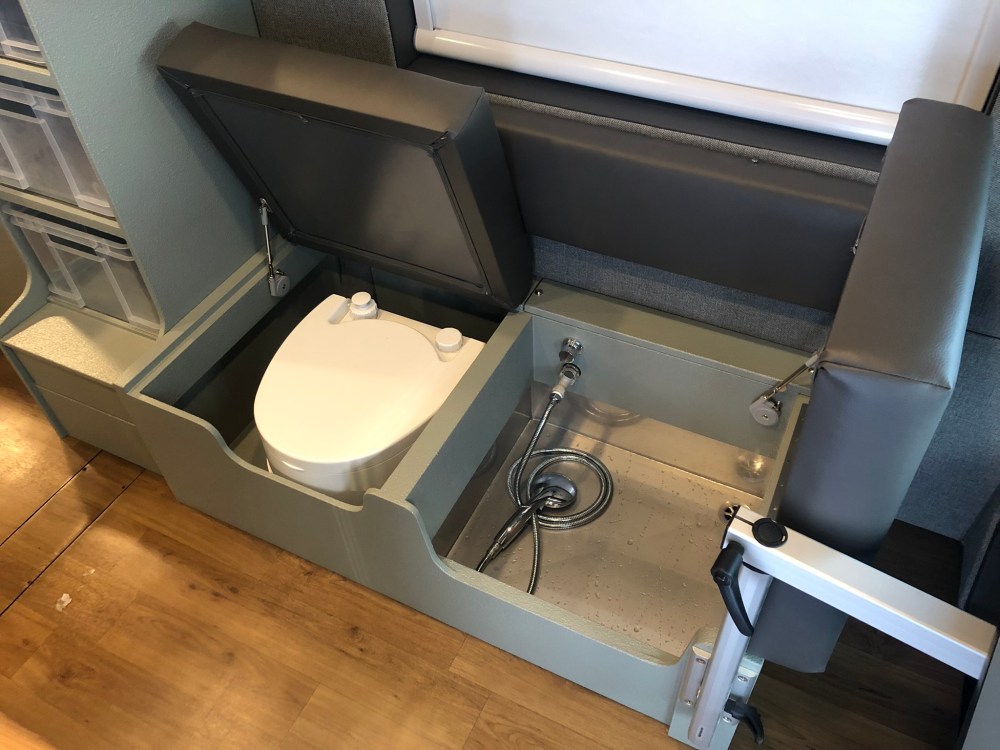

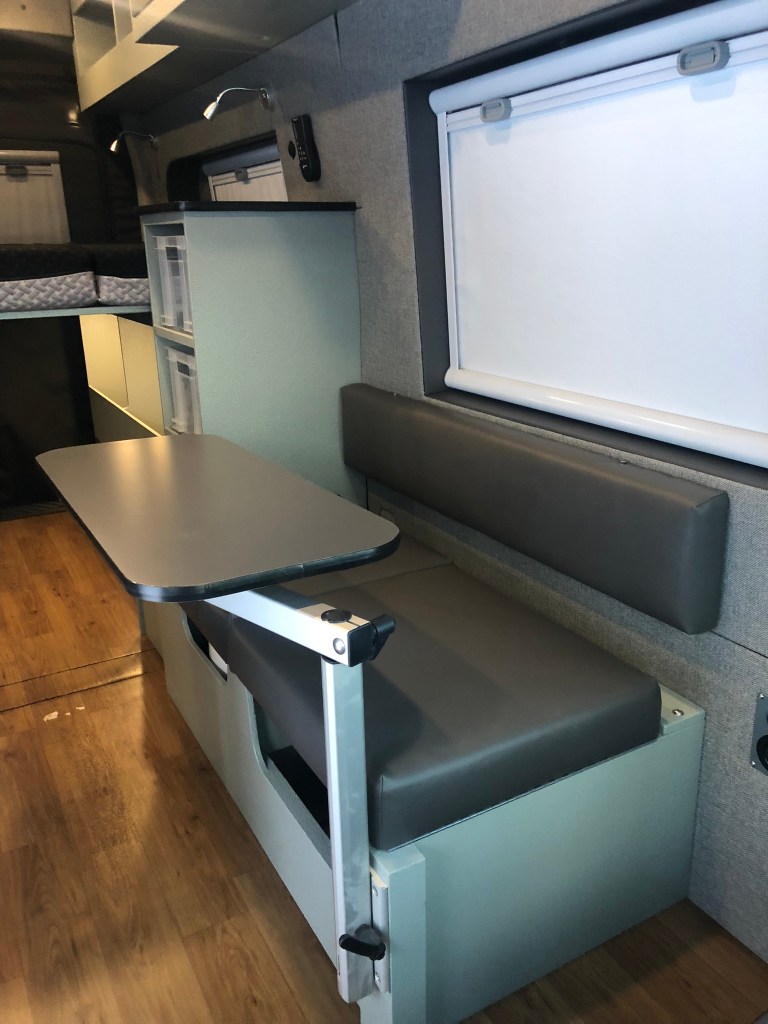

Bench Box 46″, 4″ foam vinyl upholstered backrest and cushion split at 50/50, storage under, porta-potty locator inside left, stainless shower pan with deployable shower curtain, handheld shower and mixing valve on right. Thats right its a full bathroom in a bench seat!
Cubby shelves over the bed, larger overhead cabinets with swing up doors mid ship both sides

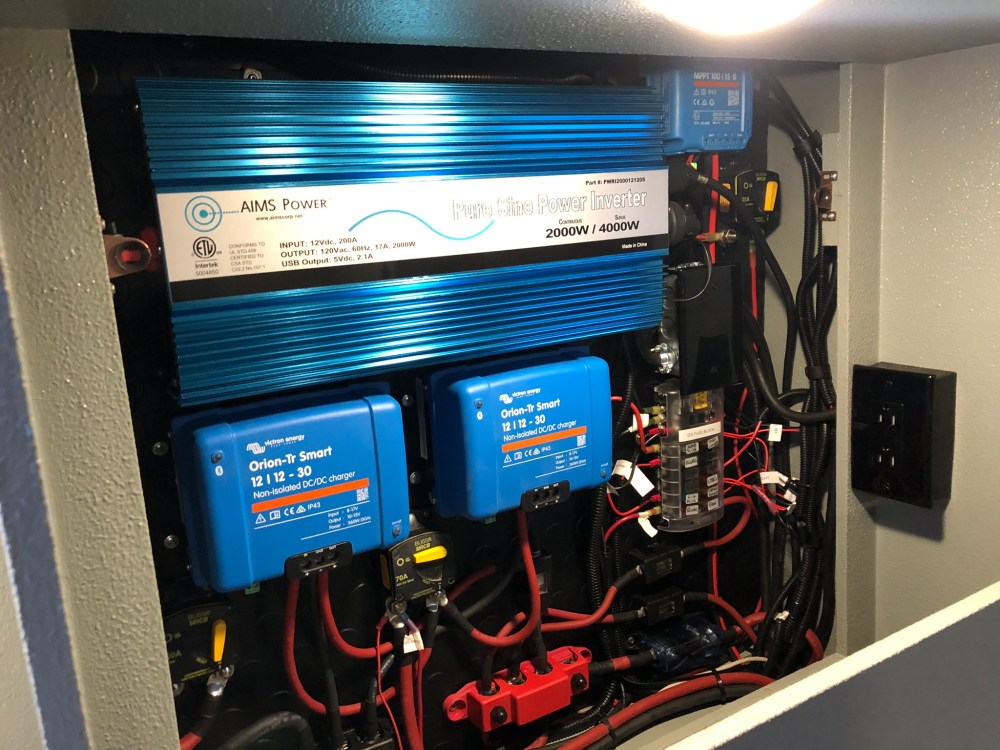

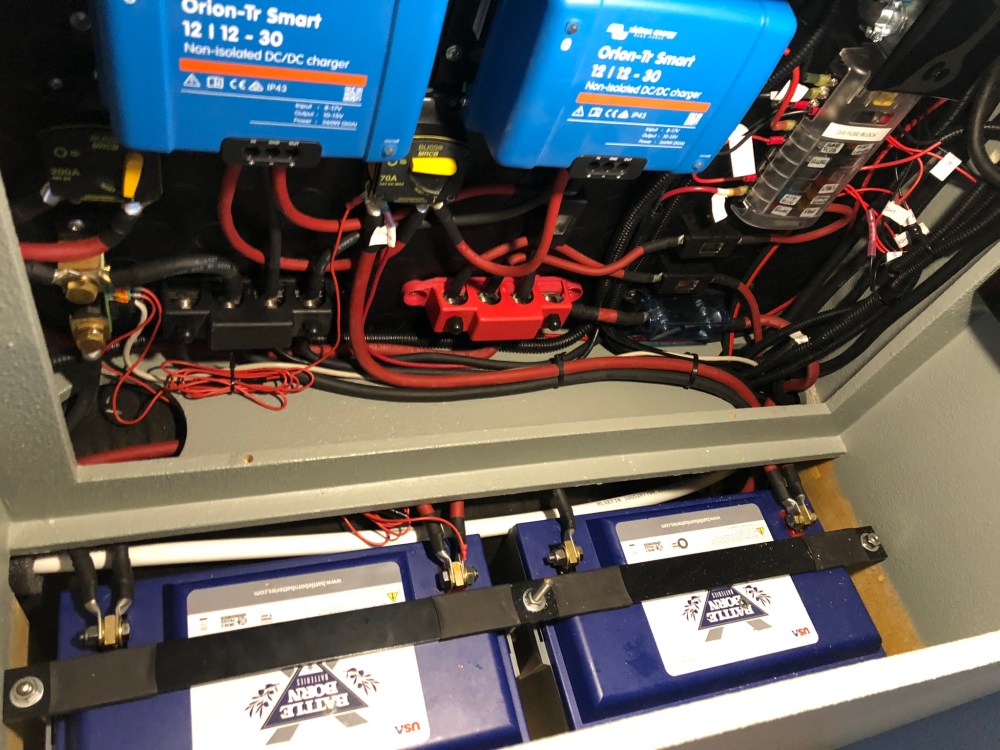

Electrical: Capacities: 300ah storage, 400w solar, 60 amp engine charging
3x 100ah Battleborn Lithium batteries, upgradable to 4
Aims Power 2000w inverter, 110v single outlet @ 5 locations
Victron BMV-712 Bluetooth battery monitor
2x Victron Orion DCDC Charger 12/12 30a (60amps total)
Victron Smartsolar MPPT 100/15
2x Solar 200watt panels, 400watts
Blue Sea fuse block with ground, 12 position DS , 6 position PS
Exterior LED porch light over slider, LED exterior kitchen light
8 ceiling lights with dimmer, 2 zones, switched at two locations
Cargo lighting, switched at two locations

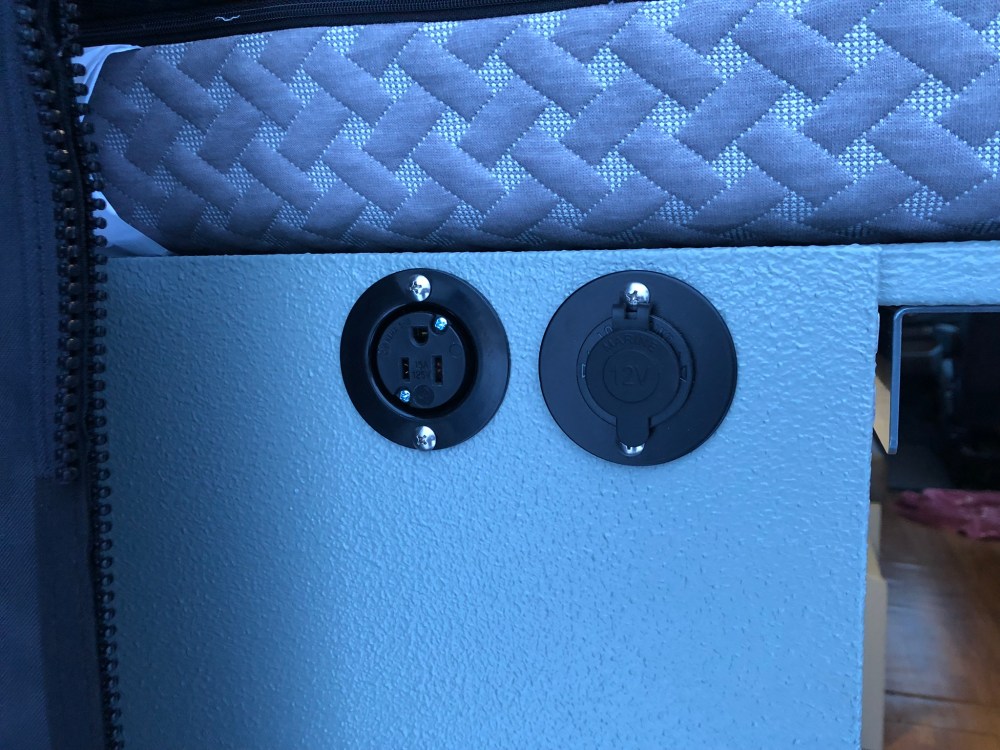

USB/DC cig plug @ 5 locations, including DC plug, and 110v power in upper cabinet with roof access. For installation of things like WIFI boosters, weather station, etc.
SCAD twin tank level monitor

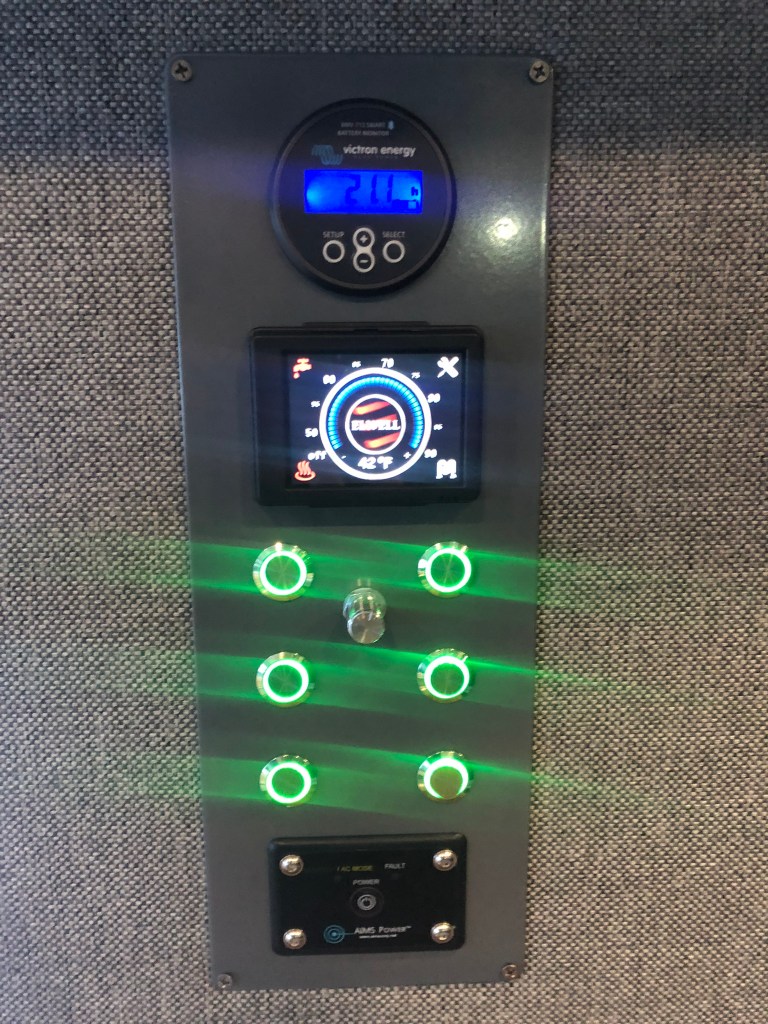

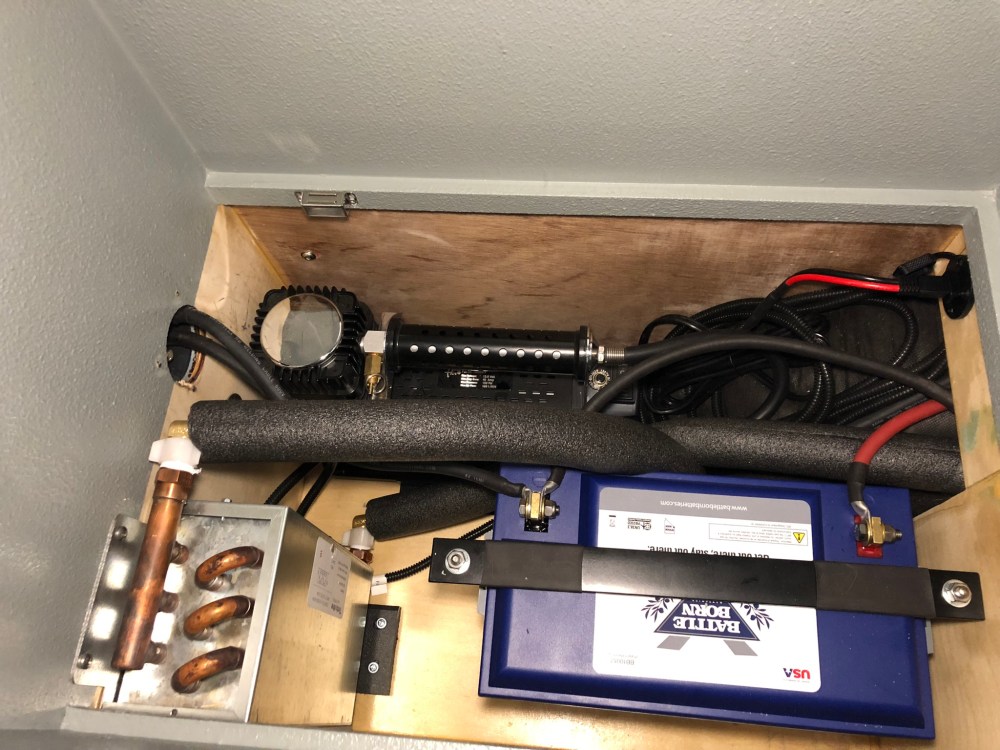

Control panels and concealed Powerwall
Water system: 25g fresh inside, 10g grey outside

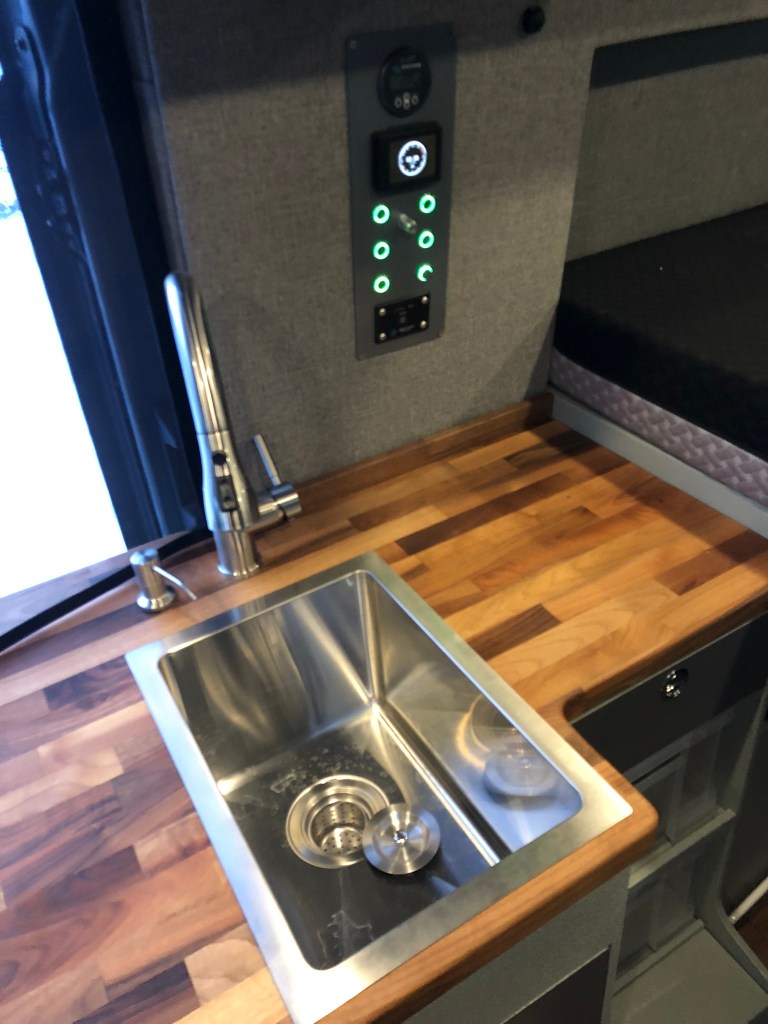

Stainless sink
Faucet, single handle, pull out spray, soap dispenser, stainless.
Pump Shurflo 3gpm with accumulator tank
Fresh tank 25 gallon indoor mounted, rear door fill, vented @ fill
Grey tank 10 gallon under mount (DS) with aluminum skid plate, manual dump valve, vent/over flow, heated via Elwell coolant loop
Woder 10K water filter on sink cold faucet
Fresh water fill hose and fill adapter

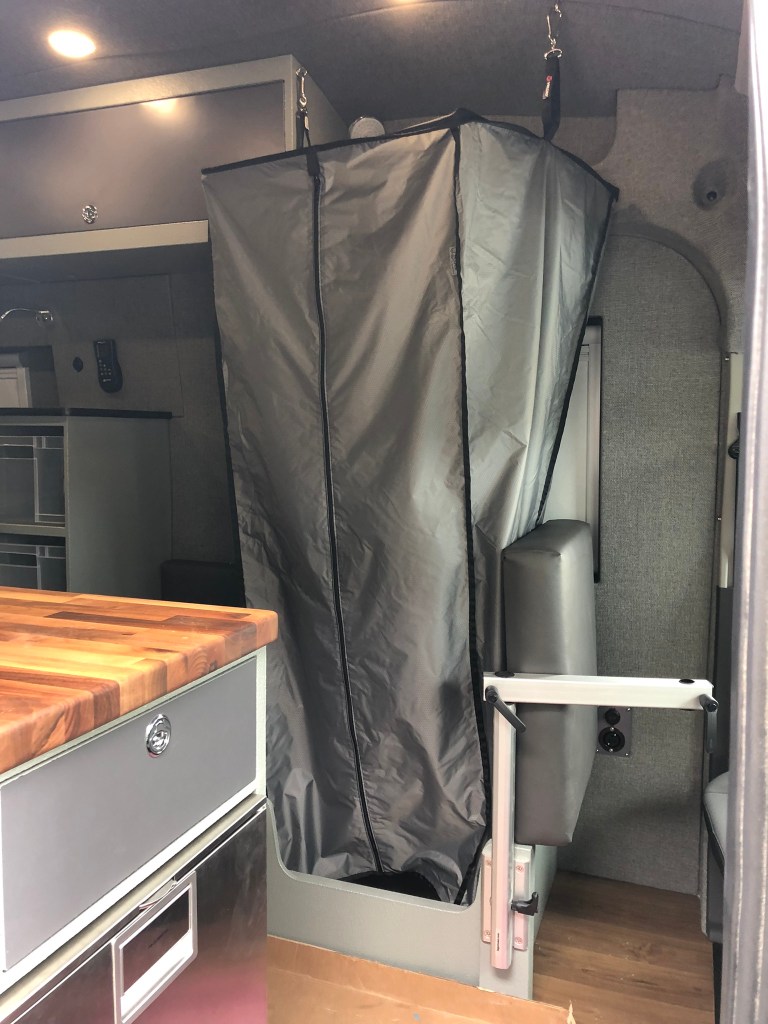

Stainless steel shower pan in bench seat with shower curtain, handheld sprayer, hot/cold water valve
Rear shower quick connect port and handheld sprayer with shut off and hot/cold water valve

Appliances/Accessories:
Elwell Timberline system with heat and hot water
Dometic CRX80 Stainless steel 12v refrigerator
Maxxair 6200K roof fan, smoke lid

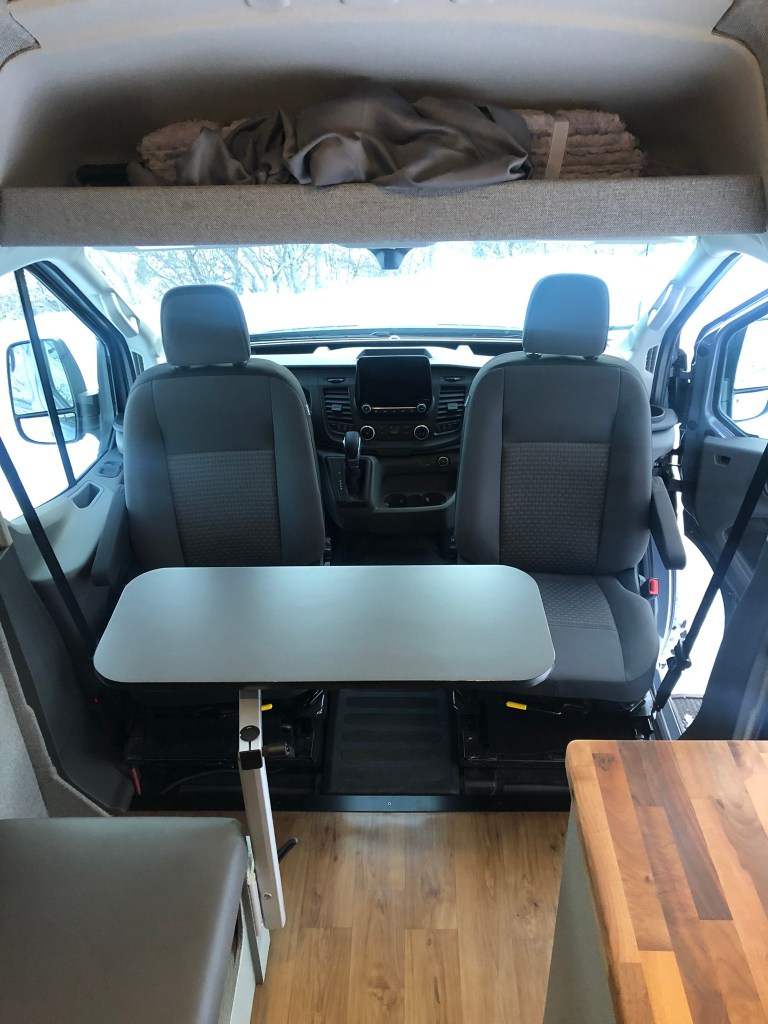

Lagun table leg with laminated table
Mattress: Memory foam tri fold 6”

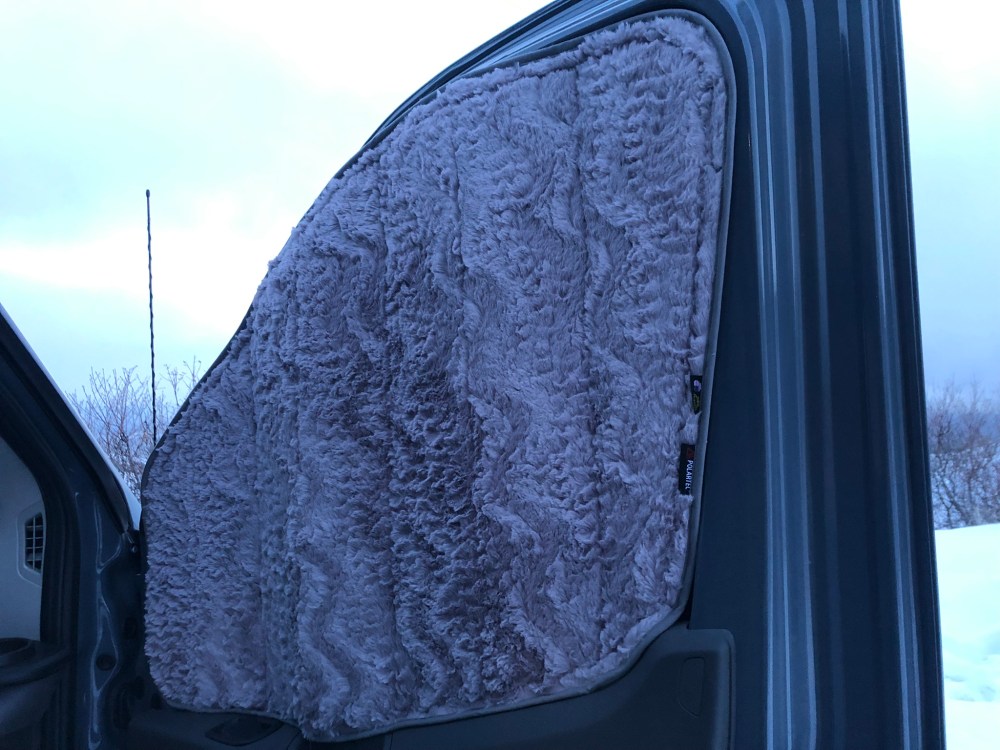

Stelletek magnetic shades for cab front/door windows, grey polartech fleece
Blackout cab curtain kit
Custom overcab shelf
Xplor outdoors shower curtain
Duxtop 1800 watt induction cooktop
Camco portable toilet 2.6g
Hydraulic jackstand and folding lug wrench
Ford Transit tray style floor mats
Bug screen kit, Pinnacle Campers, slider

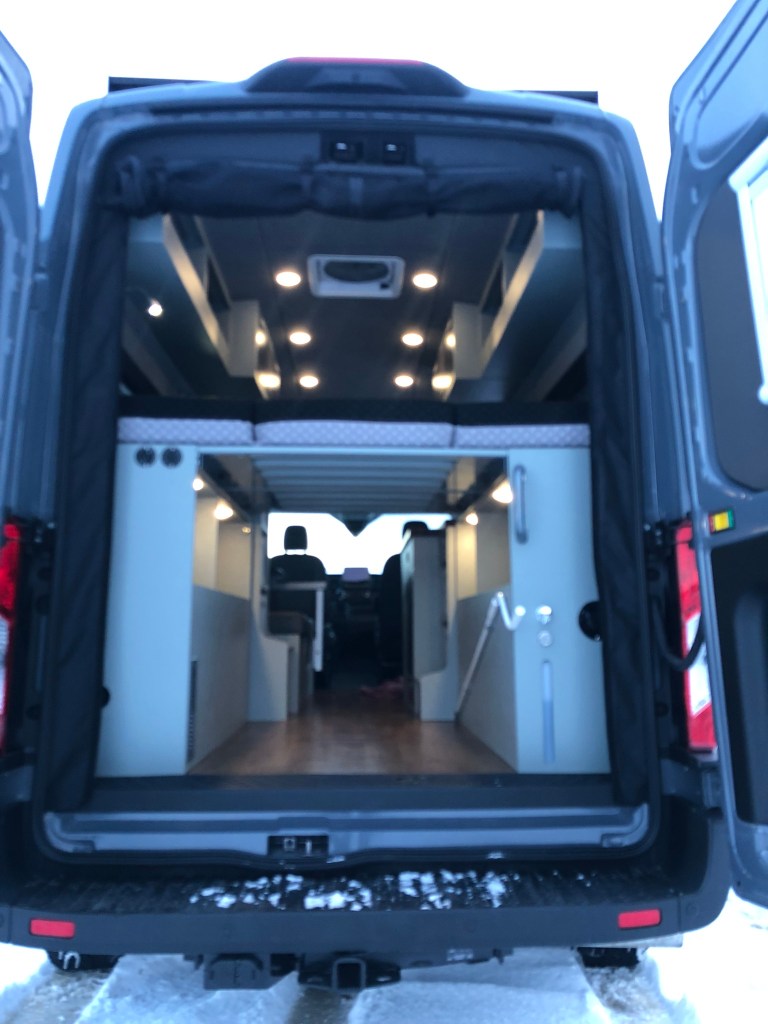

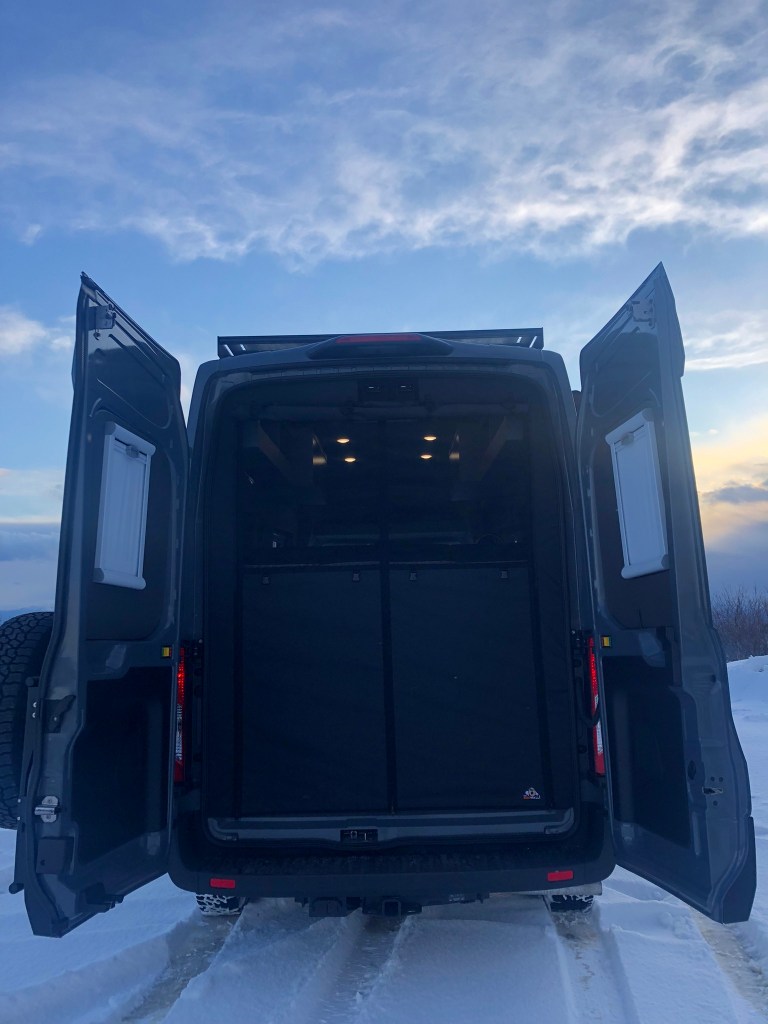

Bug screen kit, Bug Wall, rear garage
25′ Fresh water fill hose and shut off spout

Exterior accessories:
AVC RIG roof rack with 2 deck panels, 2’x5′ platform, Flatline Van Co. L-track tie downs.

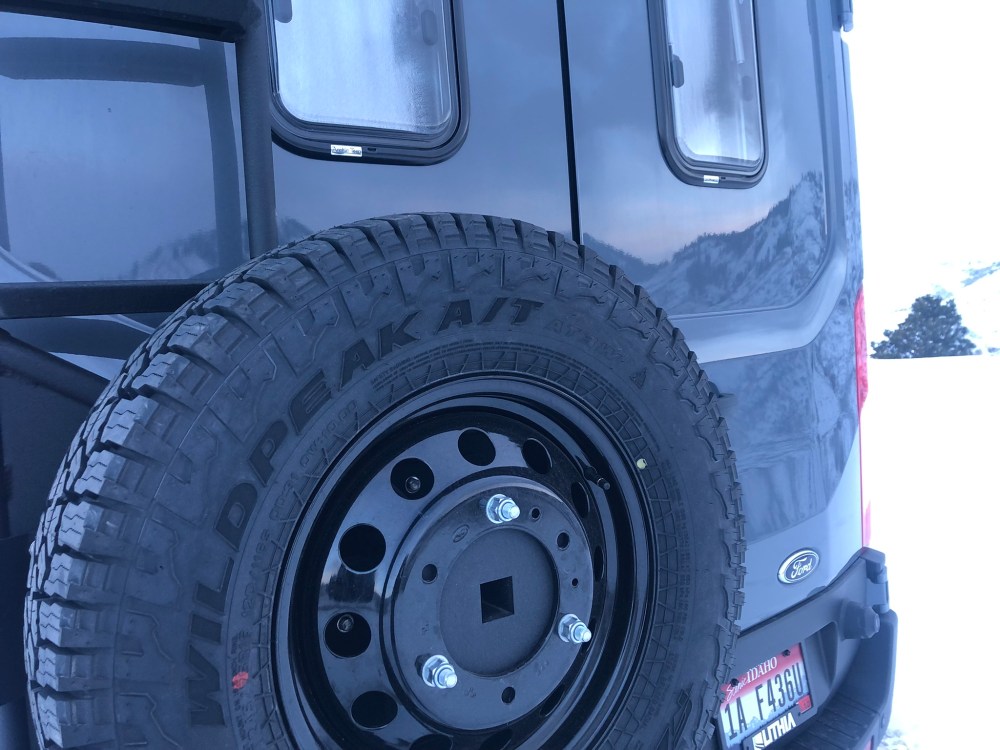

Limitless van ladder/spare tire rack
AMP retractable running board steps
Dometic 9500 awning, 10′, black, manual, wall mounted
Van Compass Topo 2.0 Lift, blue springs, rear shock tower extension brackets, Installed with Alignment
Van Compass tuned Falcon 3.3 SP2 adjustable rear shocks
Up/Down air 5.6 cfm portable air compressor with interior mount and rear door area mounted QR port, 25′ coiled hose.
Falken Wildpeak 245/75/16 5x
